Description

Price

21061

RECTIFIER

21061-1003

$29.60

26001

HARNESS,MAIN

26001-1831

Unavailable

26001A

HARNESS,IGNITION

26001-1862

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26011

WIRE-LEAD,BATTERY(+)

26011-1391

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1392

Unavailable

26012

BATTERY,12V 20AH,Y50-N18L-A

26012-1187

$100.64

26021

JUNCTION BOX

26021-1068

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

$58.83

27003

HORN,LOW TONE

27003-1264

Unavailable

27010

SWITCH,RESERVE LIGHTING

27010-1069

$239.61

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

59416

CASE-ELECTRIC,JUNCTION BOX

59416-1065

Unavailable

92037

CLAMP,BAND,L=137

92037-1817

$12.99

92037A

CLAMP,WIRING HARNESS

92037-1954

Unavailable

92059

TUBE,5X8X570

92059-1840

Unavailable

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT-FLANGED,6X10

130C0610

$3.84

225

SCREW-PAN-WSP-CROS,6X20

225B0620

$4.30

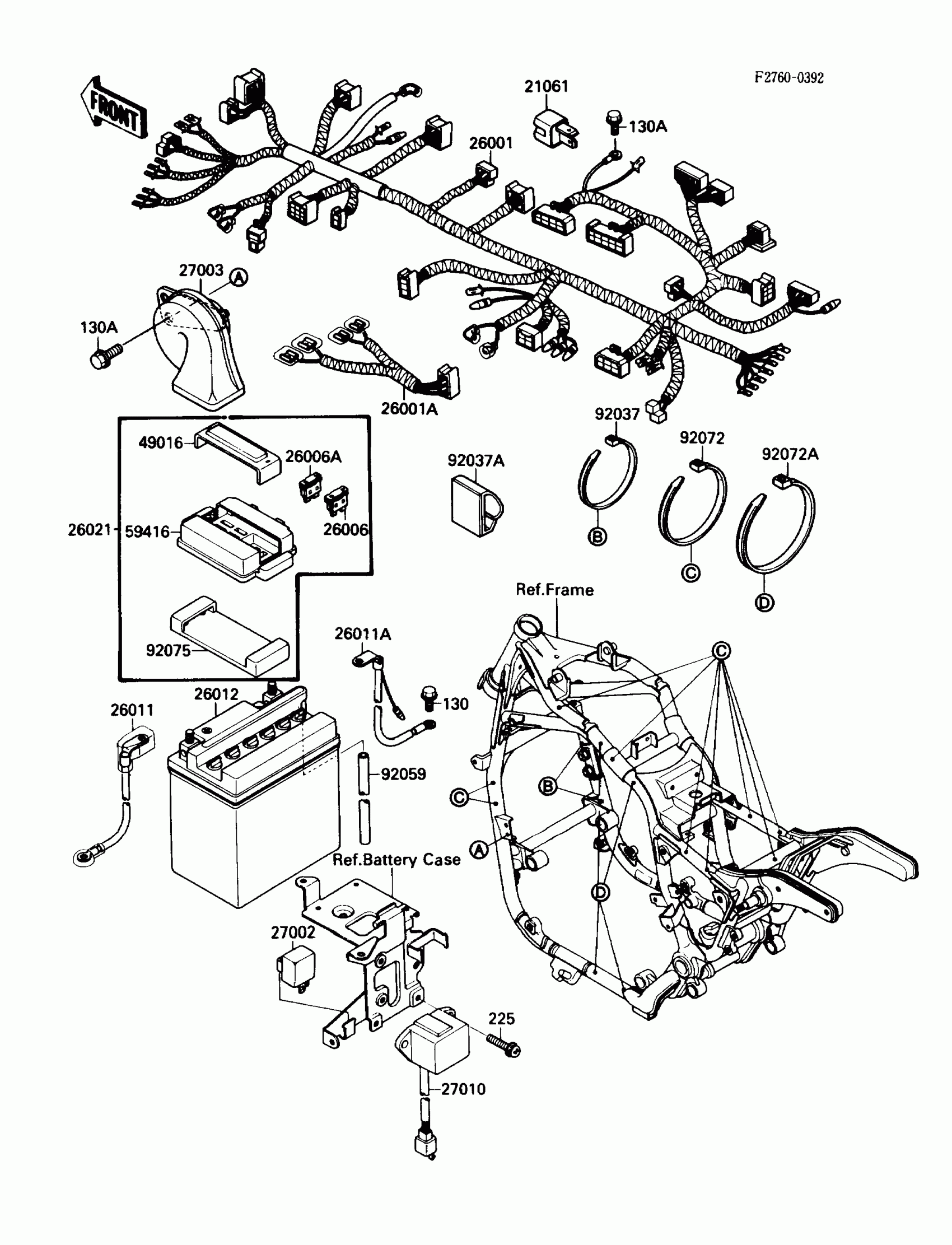

Kawasaki Vulcan 88 Electrical Equipment Diagram

RECTIFIER

HARNESS,MAIN

HARNESS,IGNITION

FUSE,BLADE,30A,GREEN

FUSE,BLADE,10A,RED

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(-)

BATTERY,12V 20AH,Y50-N18L-A

JUNCTION BOX

RELAY-ASSY,TURN SIGNAL

HORN,LOW TONE

SWITCH,RESERVE LIGHTING

COVER-SEAL,FUSE

CASE-ELECTRIC,JUNCTION BOX

CLAMP,BAND,L=137

CLAMP,WIRING HARNESS

TUBE,5X8X570

BAND,L=202

BAND,L=365

DAMPER,JUNCTION BOX

BOLT-FLANGED,6X10

BOLT-FLANGED,6X10

SCREW-PAN-WSP-CROS,6X20
