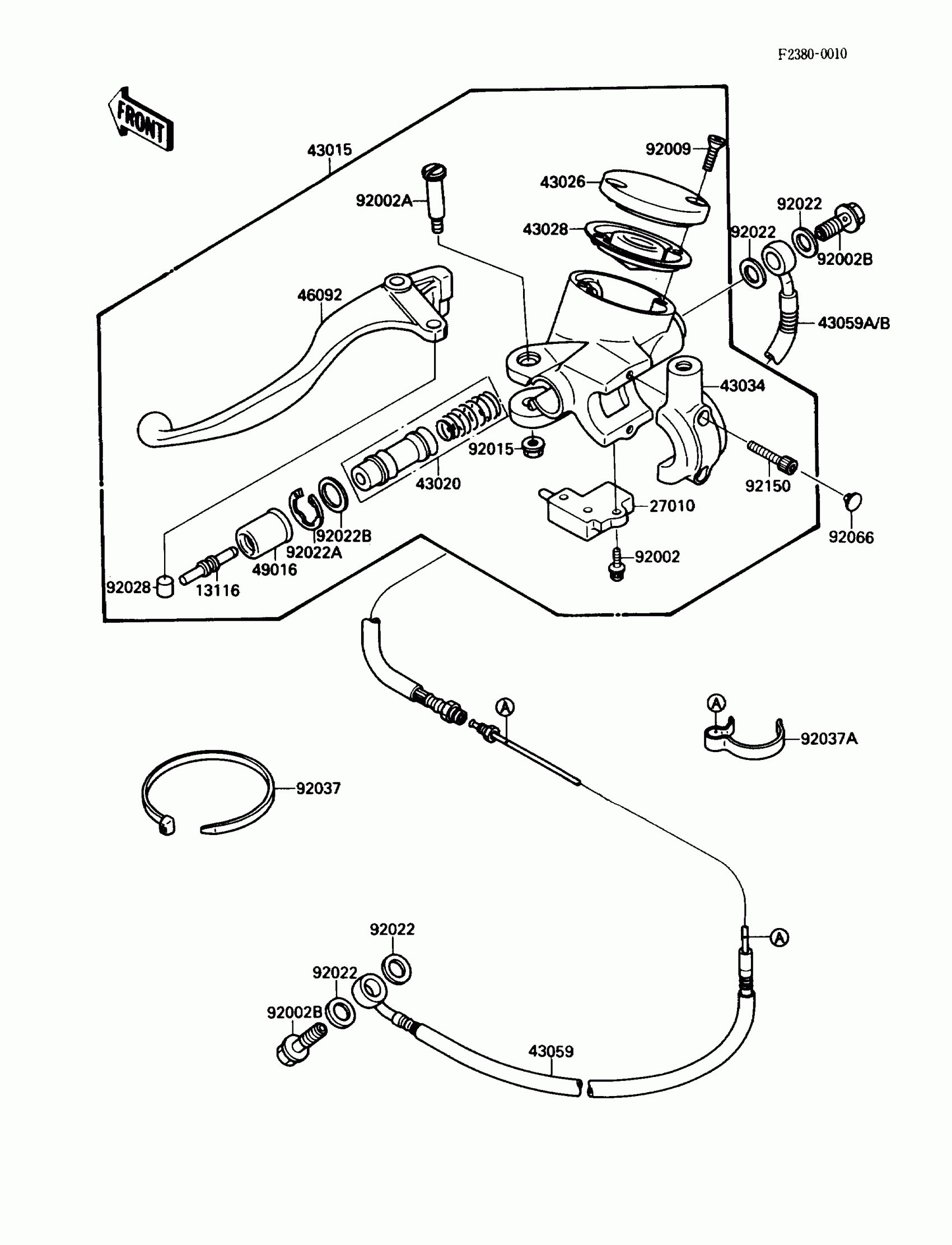

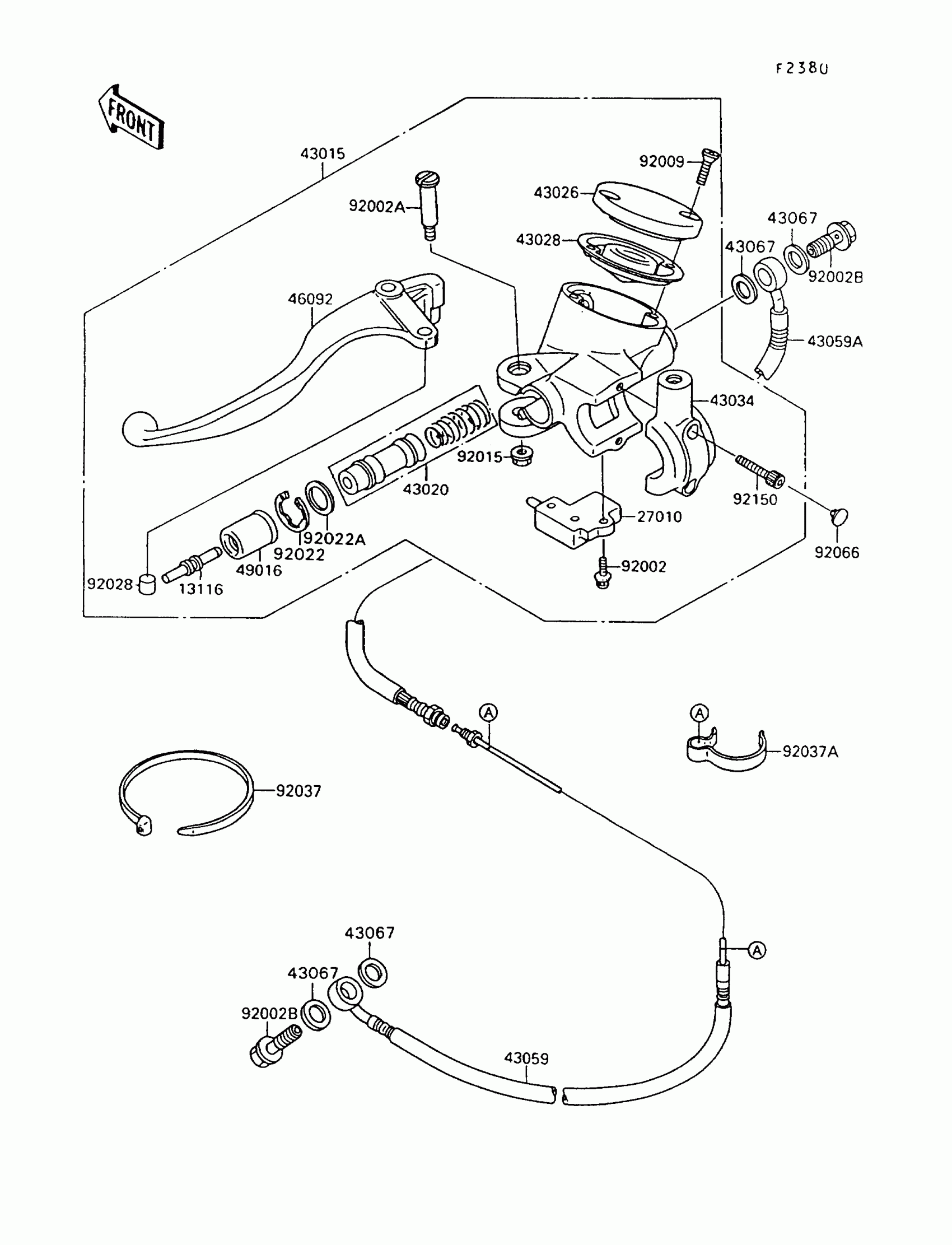

Kawasaki Vulcan 88 Clutch Master Cylinder Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

27010

SWITCH,CLUTCH

27010-1171

$36.01

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1514

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE,SILVER

43026-1078

$63.92

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$24.21

43034

HOLDER-BRAKE,SILVER

43034-1102

$53.20

43059

HOSE-BRAKE,CLUTCH

43059-1393

$157.41

43059A

HOSE-BRAKE,CLUTCH

43059-1440

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

46092

LEVER-GRIP,CLUTCH

46092-1173

$36.52

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

SCREW,4X16

92002-1325

$7.99

92002A

BOLT,LEVER SET

92002-1561

$11.71

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,5MM

92009-1440

$4.11

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

CIRCLIP

92022-1605

$5.00

92022A

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,HOSE

92037-1552

$9.97

92066

PLUG

92066-1301

$6.11

92150

BOLT,SOCKET,6MM

92150-1025

$7.69
