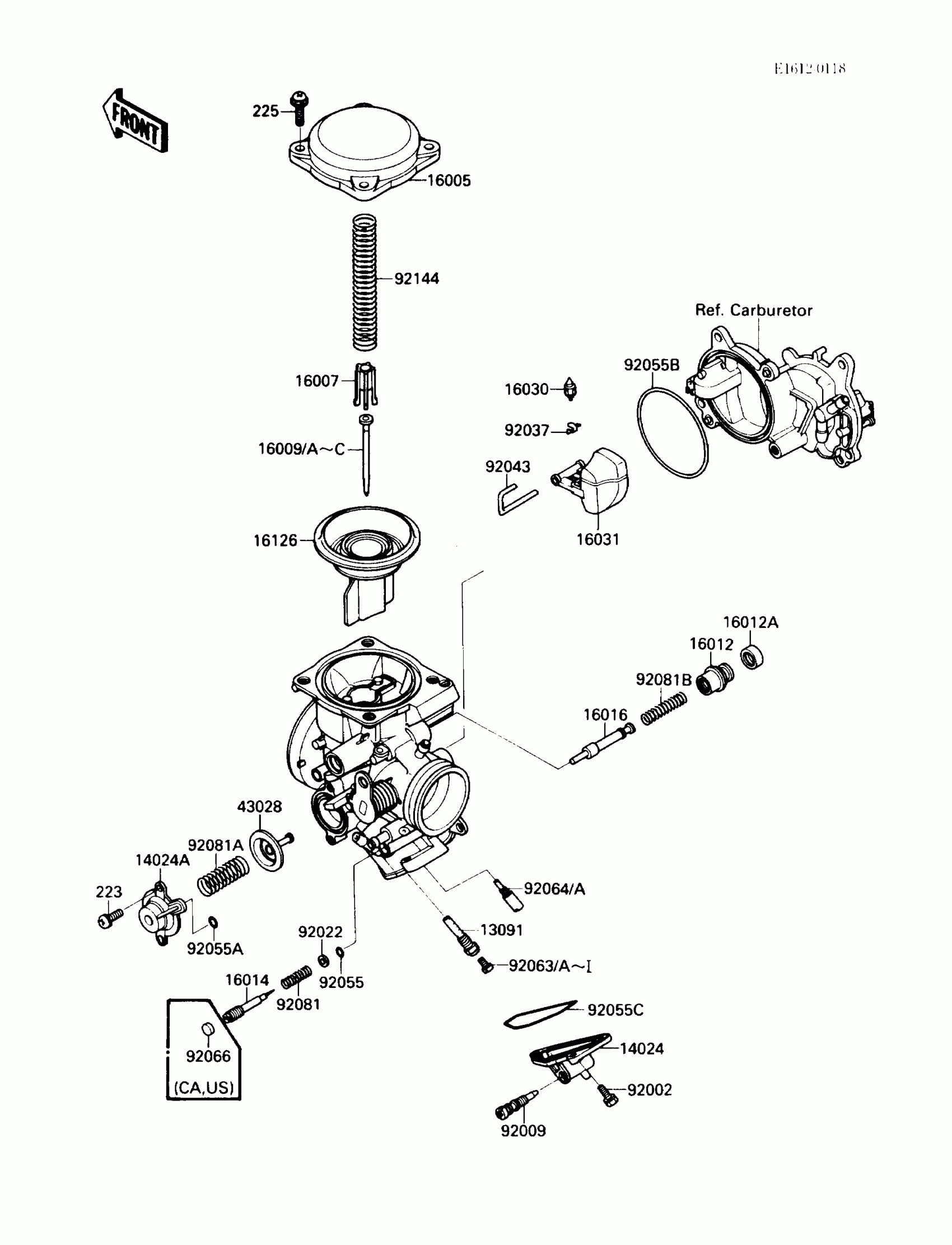

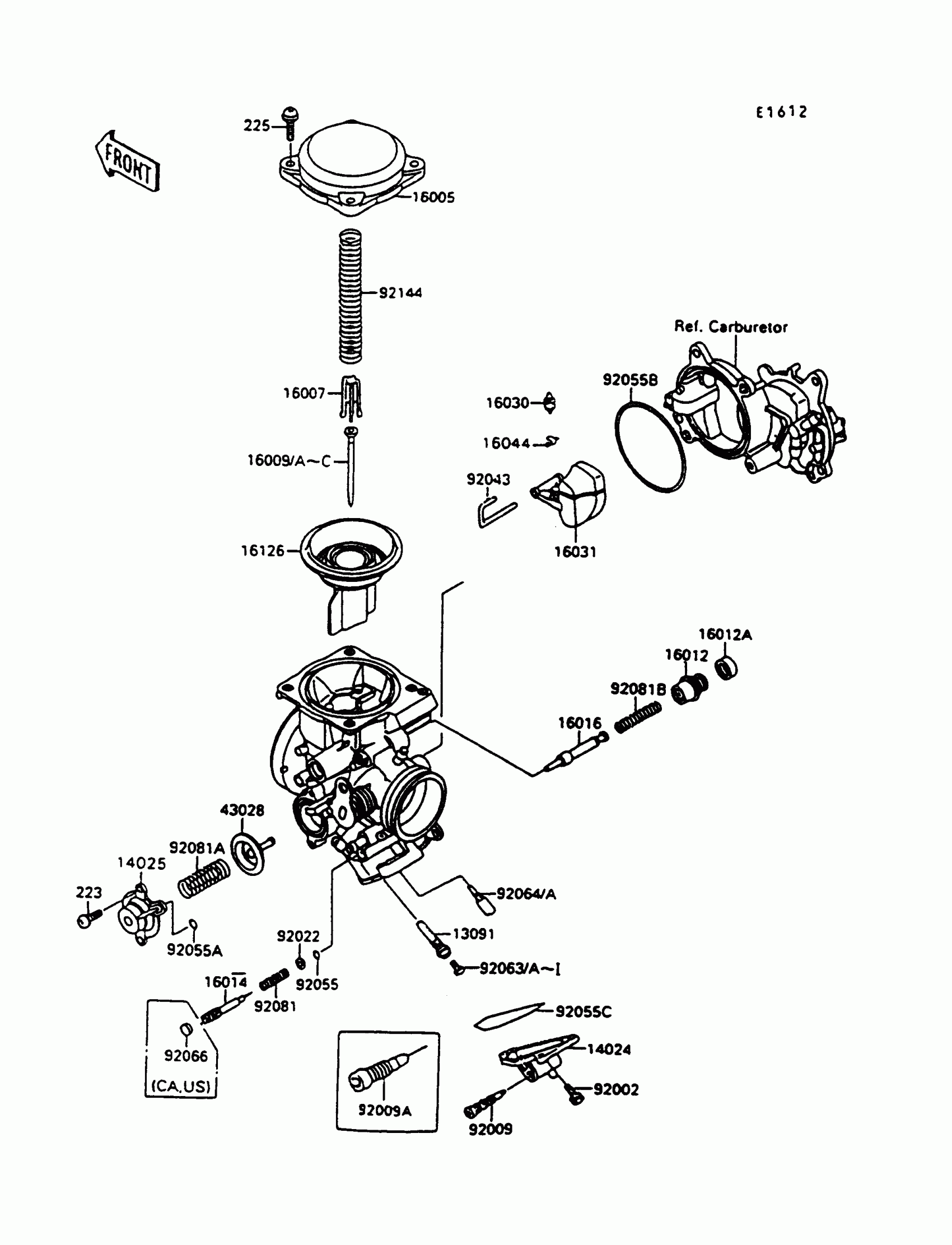

Kawasaki Vulcan 88 Carburetor Parts Diagram
#
13091
HOLDER,NEEDLE JET
13091-1513
Unavailable
14024
COVER,DRAIN
14024-1608
Unavailable
14025
COVER,AIR CUT VALVE
14025-1903
$58.45
16005
TOP-CHAMBER,MIXING
16005-1054
$45.23
16007
SEAT-SPRING,VALVE
16007-1117
$25.03
16009
NEEDLE-JET,RR,N53T
16009-1361
$33.88
16009A
NEEDLE-JET,FR,N53S
16009-1362
Unavailable
16009B
NEEDLE-JET,RR,N53V
16009-1363
Unavailable
16009C
NEEDLE-JET,FR,N53U
16009-1364
Unavailable
16012
CAP-STARTER PLUNGER
16012-1051
$10.88
16012A
CAP-STARTER PLUNGER
16012-1052
$15.04
16014
SCREW-PILOT AIR
16014-1054
$24.57
16016
PLUNGER
16016-1071
$54.49
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1066
Unavailable
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16126
VALVE,VACUUM
16126-1203
$263.95
43028
DIAPHRAGM,5.9MM,AIR CUT VALVE
43028-1053
Unavailable
92002
BOLT,4X14
92002-1761
Unavailable
92009
SCREW,DRAIN,M6X1.0
92009-1434
$14.92
92009A
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92022
WASHER,PLAIN
92022-1003
$4.31
92043
PIN,FLOAT
92043-1285
$18.39
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O
92055-1245
$5.57
92055B
RING-O
92055-1291
$21.74
92055C
RING-O,DRAIN COVER
92055-1400
$24.91
92063
JET-MAIN,#118
92063-1071
$14.79
92063A
JET-MAIN,#118
92063-1071
$14.79
92063B
JET-MAIN,#120
92063-1072
$14.79
92063C
JET-MAIN,#122
92063-1073
$14.79
223
SCREW-PAN-WS-CROS,4X8
223D0408
$1.28
225
SCREW-PAN-WSP-CROS,4X18
225C0418
$4.01
92063D
JET-MAIN,#110
92063-1114
$14.79
92063E
JET-MAIN,#108
92063-1116
$14.79
92063F
JET-MAIN,#112
92063-1117
$14.79
92063G
JET-MAIN,#112
92063-1117
$14.79
92063H
JET-MAIN,#115
92063-1118
$14.79
92063I
JET-MAIN,#115
92063-1118
$14.79
92064
JET-PILOT,#42
92064-1135
$21.45
92064A
JET-PILOT,#40
92064-1136
$21.45
92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING,AIR CUT VALVE
92081-1719
$12.62
92081B
SPRING,STARTER PLUNGER
92081-1761
$9.36
92144
SPRING,VACUUM VALVE
92144-1219
$20.91
