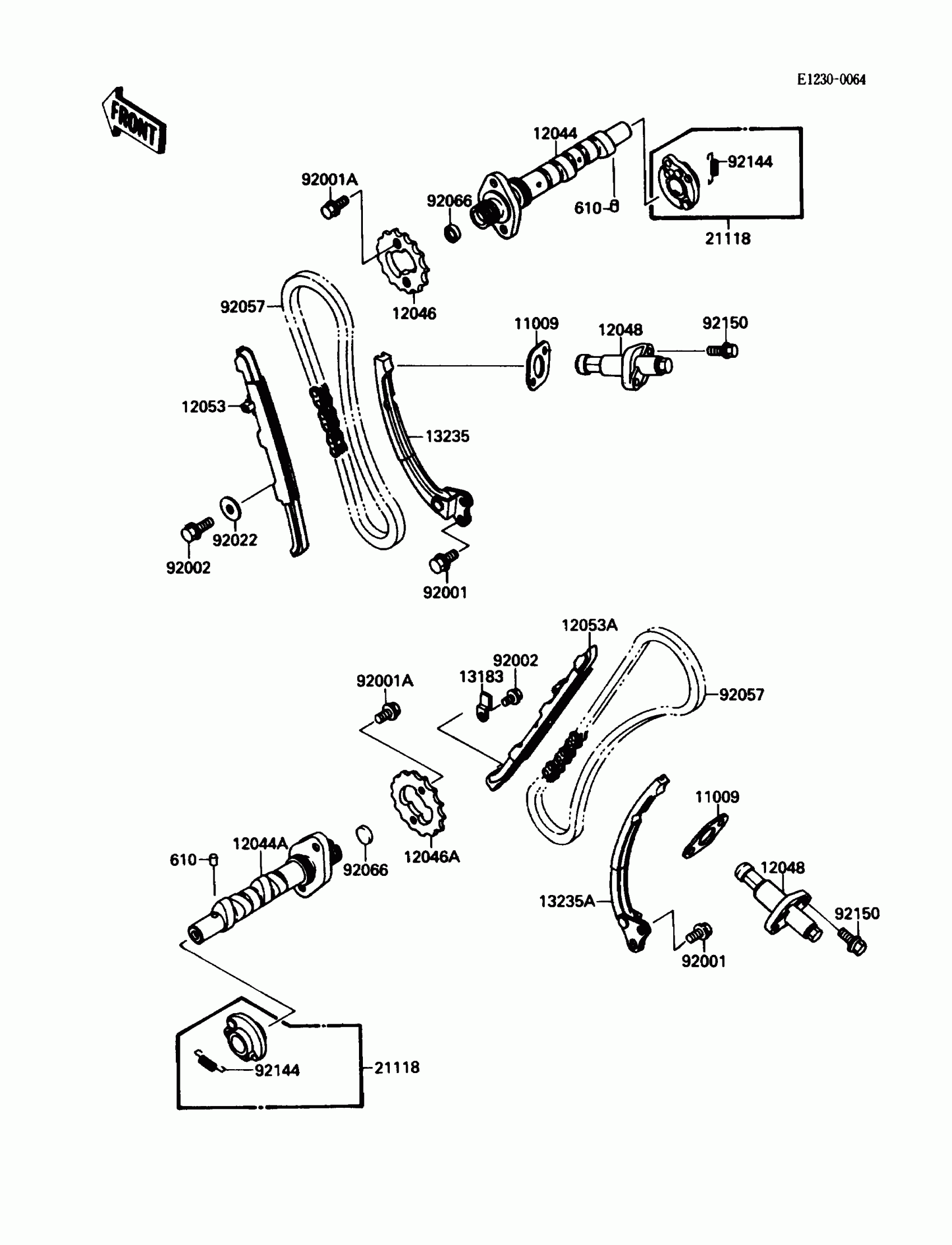

Kawasaki Vulcan 88 Camshaft/Tensioner Diagram

Description

Price

11009

GASKET,TENSIONER

11009-1858

$4.61

12044

CAMSHAFT-VALVE,FR

12044-1200

$464.63

12044A

CAMSHAFT-VALVE,RR

12044-1201

$458.06

12046

SPROCKET,CAMSHAFT,FR

12046-1105

Unavailable

12046A

SPROCKET,CAMSHAFT,RR

12046-1106

Unavailable

12048

TENSIONER-ASSY

12048-1088

Unavailable

12053

GUIDE-CHAIN,FR,TENSIONER

12053-1219

$51.90

12053A

GUIDE-CHAIN,RR,TENSIONER

12053-1221

$51.90

13183

PLATE

13183-1096

$5.59

13235

GUIDE-COMP

13235-1060

Unavailable

13235A

GUIDE-COMP

13235-1061

Unavailable

21118

DECOMPRESSOR,FR

21118-1061

$160.33

92001

BOLT,6X16

92001-1457

$5.00

92001A

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,6X12

92002-1563

$3.32

92022

WASHER,7X27X1.6

92022-227

$4.69

92057

CHAIN,CAM,82RH2010-144L

92057-1234

$106.50

92066

PLUG

92066-1198

$4.65

92144

SPRING,DECOMPRESSOR

92144-1209

$6.29

92150

BOLT,6X20

92150-1056

$5.23

610

ROLLER,4X6

610A0406

$4.31
