1995 Kawasaki Vulcan 88 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1995 Kawasaki Vulcan 88, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

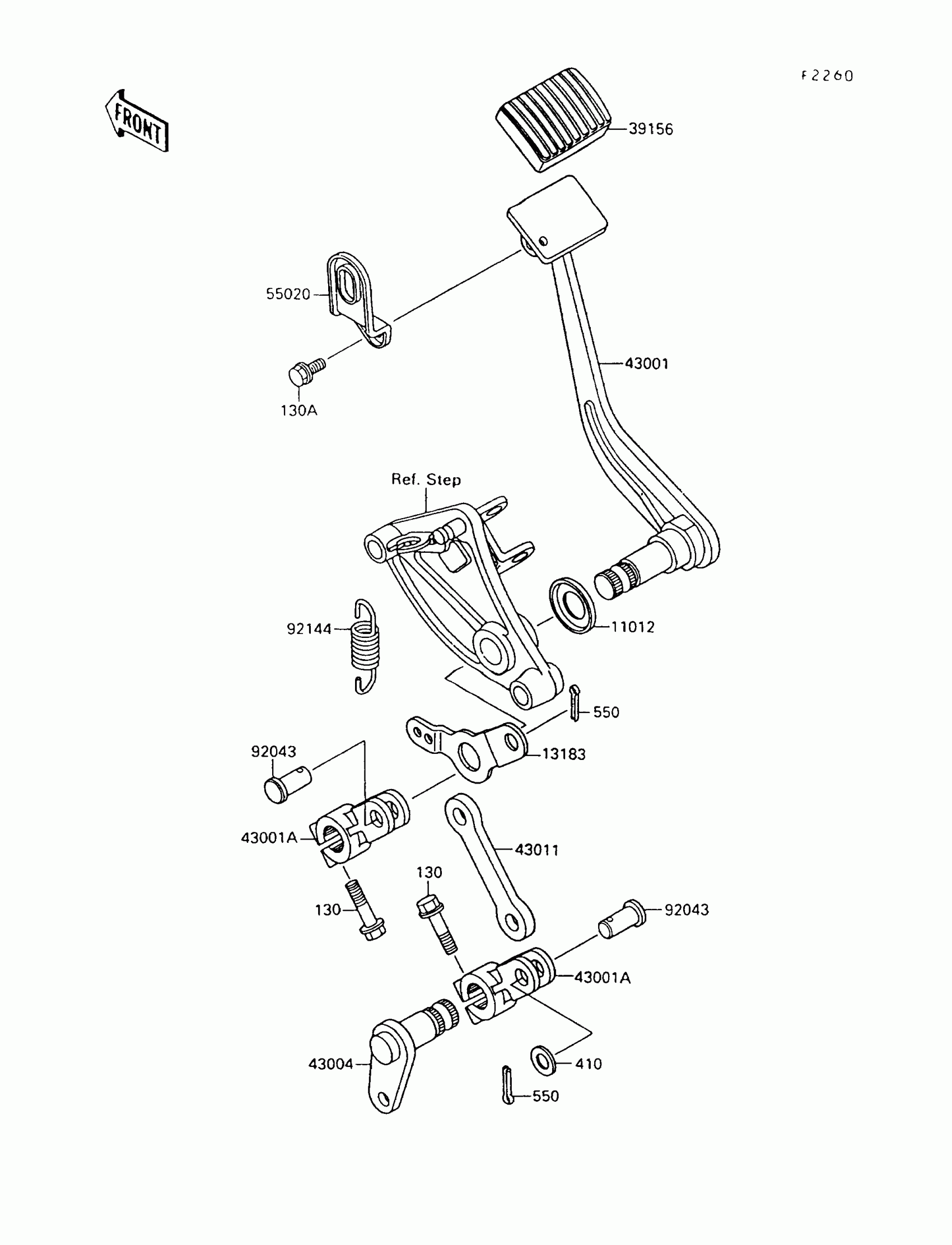

1995 Kawasaki Vulcan 88 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

130A

BOLT-FLANGED,6X8

130N0608

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

11012

CAP,BRAKE PEDAL

11012-1582

1
Out of stock

13183

PLATE,BRAKE PEDAL RETURN

13183-1099

1
Out of stock

39156

PAD,BRAKE PEDAL

39156-1071

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1222

1
Out of stock

43001A

LEVER-BRAKE,LINK

43001-1223

1
Out of stock

43004

SHAFT-BRAKE

43004-1121

1
Out of stock

43011

ROD-BRAKE

43011-1137

1
Out of stock

55020

GUARD,BRAKE PEDAL

55020-1268

1
Out of stock

92043

PIN,10X20.5

92043-1352

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

1
Out of stock
