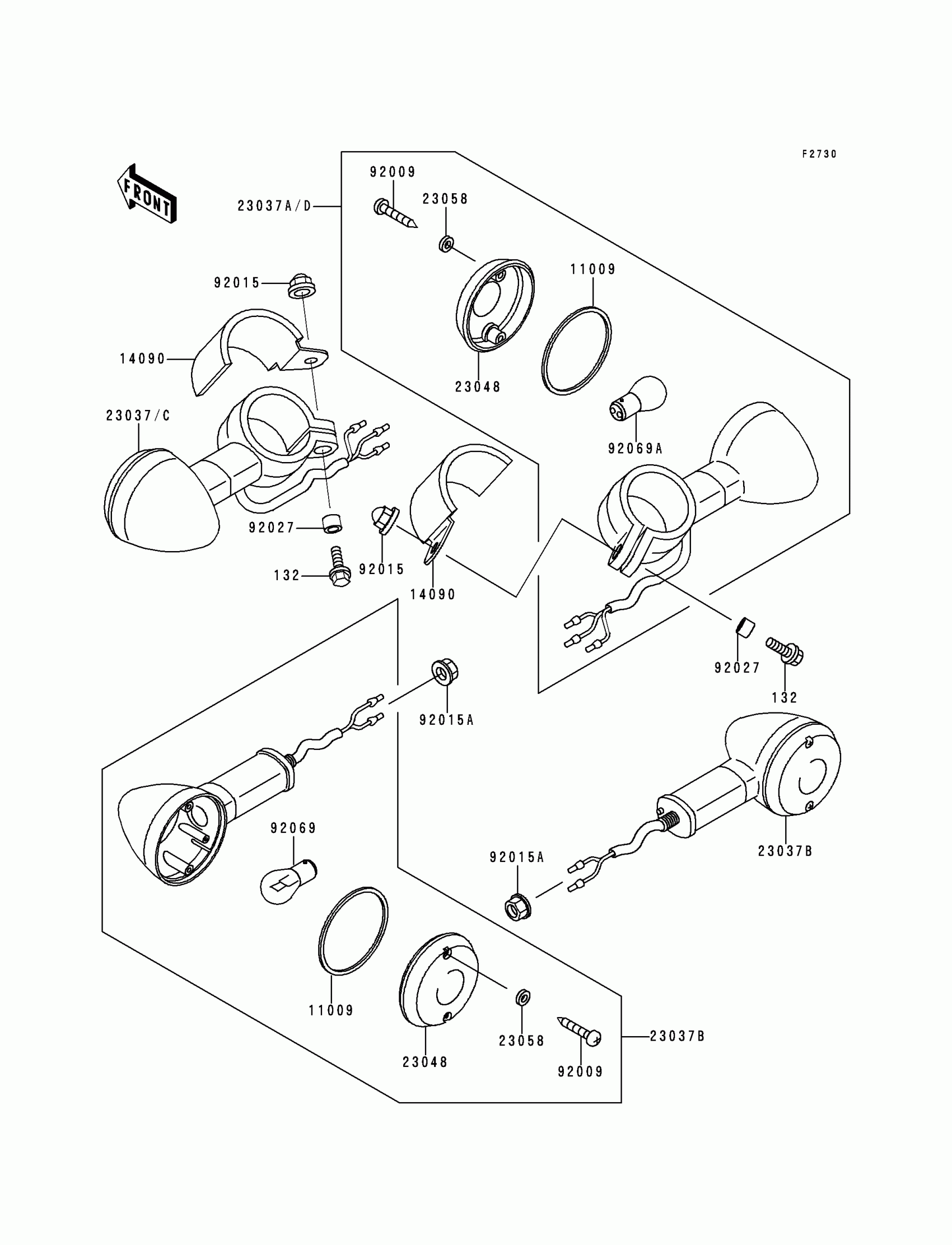

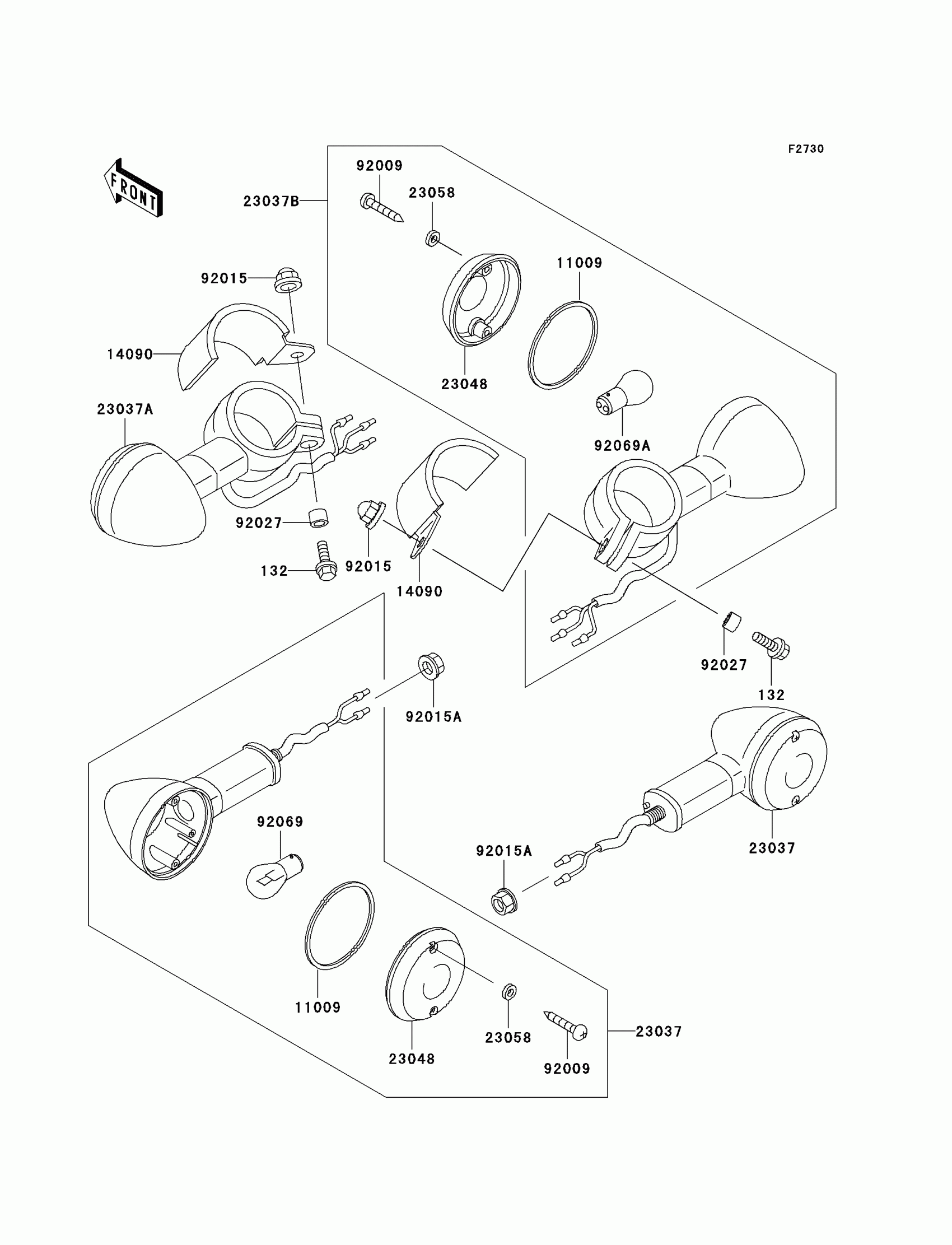

Kawasaki Vulcan 800 Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132E0620

$4.44

11009

GASKET,SIGNAL LAMP

11009-1413

$4.96

14090

COVER,SIGNAL LAMP

14090-1578

$20.77

23037

LAMP-ASSY-SIGNAL,RR

23037-1315

$80.19

23037A

LAMP-ASSY-SIGNAL,FR,LH

23037-1317

$93.37

23037B

LAMP-ASSY-SIGNAL,FR,RH

23037-1318

$93.37

23048

LENS-SIGNAL LAMP,FR

23048-1066

$9.53

23058

WASHER,PLAIN,4MM

23058-002

$2.49

92009

SCREW,TAPPING,4X25

92009-1637

$3.92

92015

NUT,CAP,6MM

92015-1385

$4.31

92015A

NUT,FLANGED,10MM

92015-1428

$5.00

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$9.70
