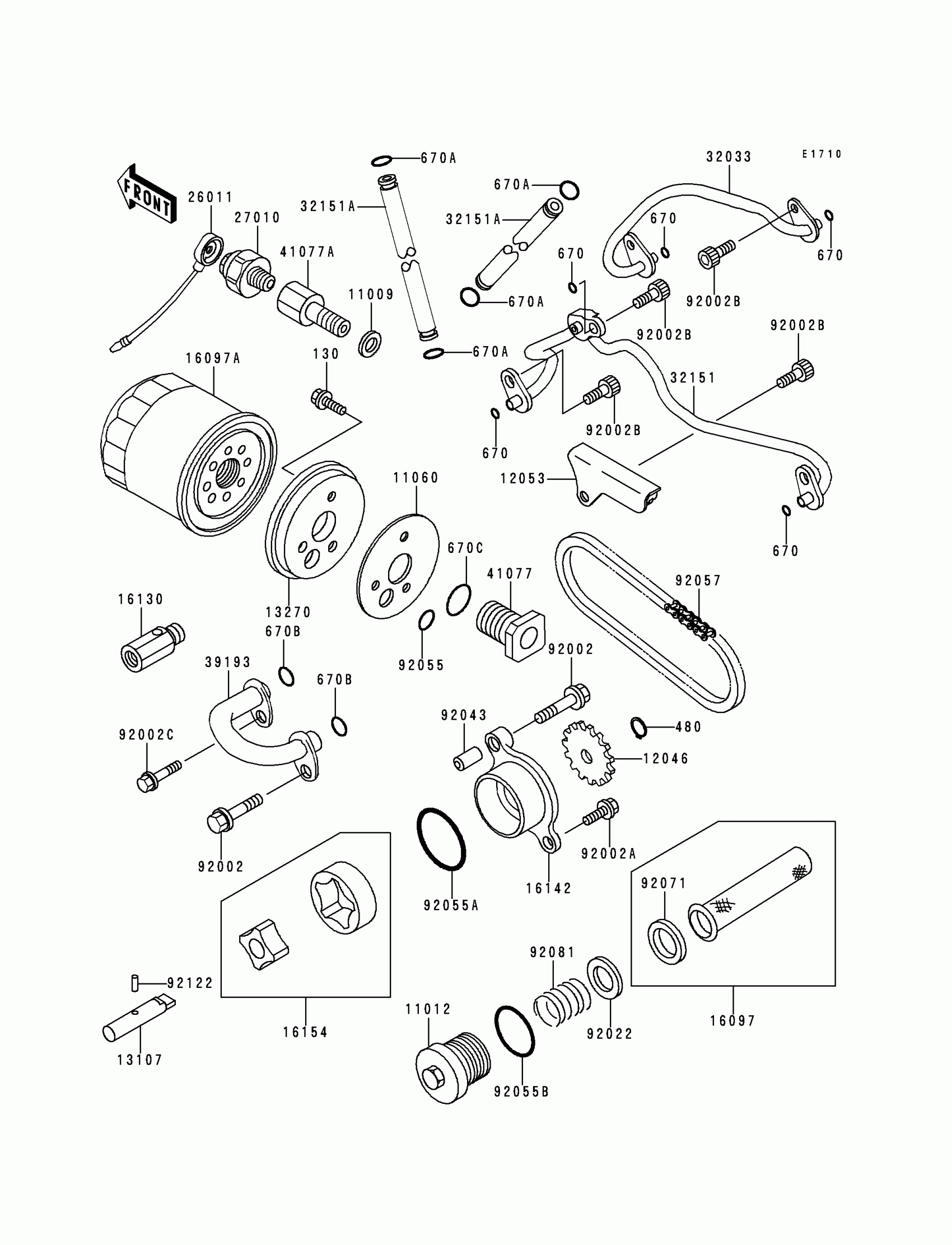

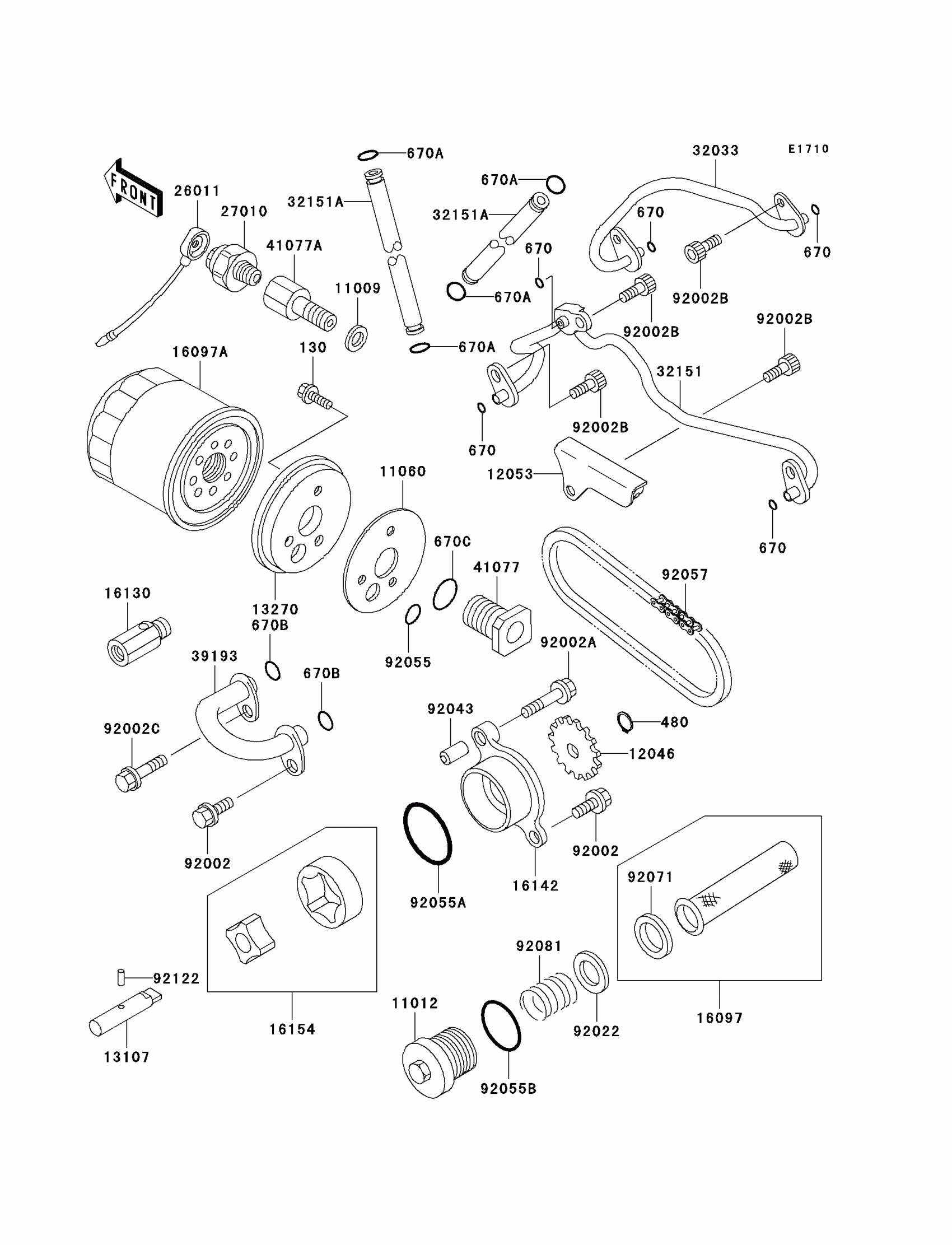

Kawasaki Vulcan 800 Oil Pump/Oil Filter Diagram

#

Description
Price

130

BOLT-FLANGED,5X14

130P0514

$4.71

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

670

O RING,6MM

670D1506

$1.66

670A

O RING,7MM

670D1507

$1.70

670B

O RING,12MM

670D2012

$2.77

670C

O RING,20MM

670D2020

$6.22

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11012

CAP,OIL FILTER

11012-1461

$45.18

11060

GASKET,OIL FILTER

11060-1092

$8.51

12046

SPROCKET,OIL PUMP,19T

12046-1079

$18.83

12053

GUIDE-CHAIN

12053-1356

$40.06

13107

SHAFT,OIL PUMP

13107-1131

$33.23

13270

PLATE,OIL FILTER

13270-1170

$29.41

16097

FILTER-ASSY-OIL

16097-1058

$14.37

16097A

FILTER-ASSY-OIL

16097-1072

$14.50

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP,OIL

16142-1061

$63.61

16154

ROTOR-PUMP,40.56X18

16154-1056

$67.73

26011

WIRE-LEAD

26011-1626

$16.99

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32033

PIPE,OIL,FILTER-CRANKSHAFT

32033-1742

$39.98

32151

PIPE

32151-1894

$93.83

32151A

PIPE

32151-1895

$14.10

39193

PIPE-OIL,PUMP-FILTER

39193-1021

$45.98

41077

ADAPTER

41077-1052

$31.88

41077A

ADAPTER,PRESSURE SWITCH

41077-1084

$17.10

92002

BOLT,6X16

92002-1439

$4.69

92002A

BOLT,6X30

92002-1534

$6.22

92002B

BOLT,SOCKET,6X14

92002-1592

$4.31

92002C

BOLT,6X25

92002-1612

$5.05

92022

WASHER,16.5X28X0.5

92022-169

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,13.0X1.9

92055-1011

$7.62

92055A

RING-O,44.7X2.4

92055-1279

$7.34

92055B

RING-O,35.2X2.4

92055-1358

$7.34

92057

CHAIN,PUMP,BS25HX50L

92057-1183

$43.14

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92081

SPRING,OIL FILTER

92081-1862

$12.96

92122

ROLLER,3X15.8

92122-1126

$3.92
