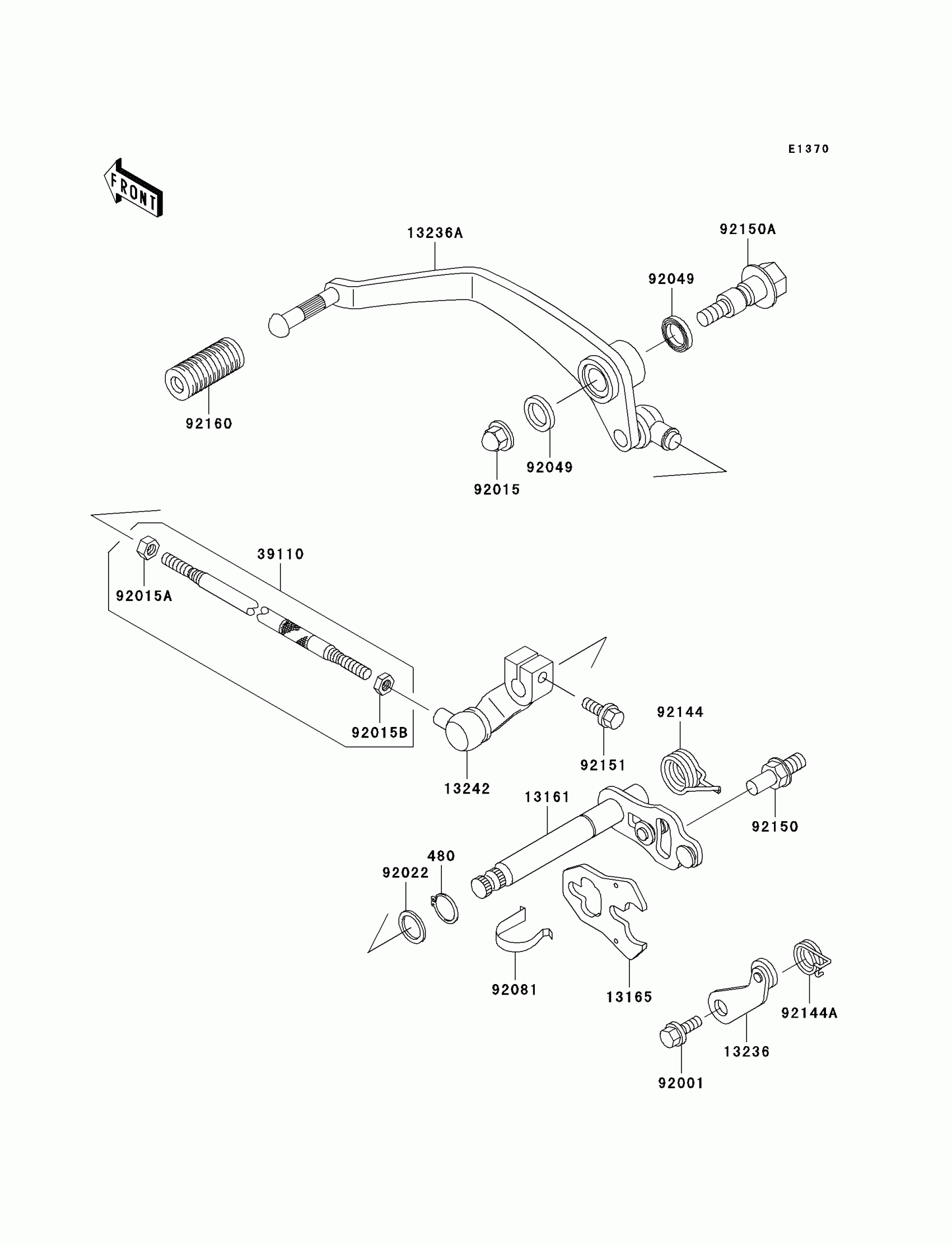

Kawasaki Vulcan 800 Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1218

$71.06

13165

PAWL,CHANGE LEVER

13165-1151

$14.10

13236

LEVER-COMP,POSITION

13236-1126

$13.60

13236A

LEVER-COMP

13236-1407

$85.74

13242

LEVER-ASSY-CHANGE

13242-1290

$57.29

39110

ROD-ASSY-TIE

39110-1124

$19.50

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92015

NUT,CAP,8MM

92015-1370

Unavailable

92015A

NUT,6MM

92015-1443

$3.92

92015B

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92081

SPRING,CHANGE LEVER

92081-1829

$8.79

92144

SPRING,CHANGE PEDAL RETURN

92144-1345

$17.44

92144A

SPRING,LEVER

92144-1850

$4.14

92150

BOLT,RETURN SPRING

92150-1869

$8.58

92150A

BOLT,CHANGE PEDAL

92150-1908

$21.29

92151

BOLT,6X20

92151-1450

$2.46

92160

DAMPER,CHANGE PEDAL

92160-1637

$8.47
