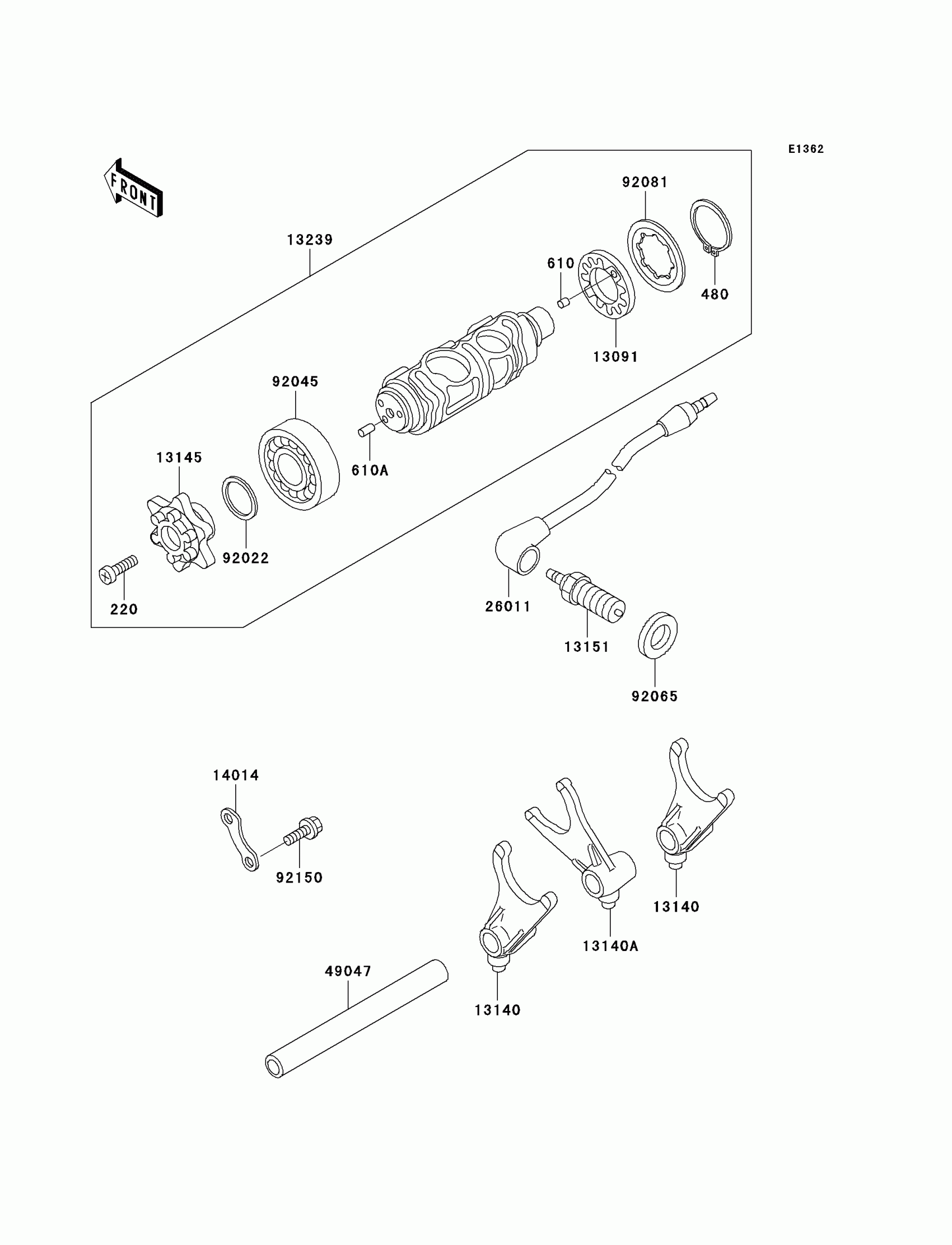

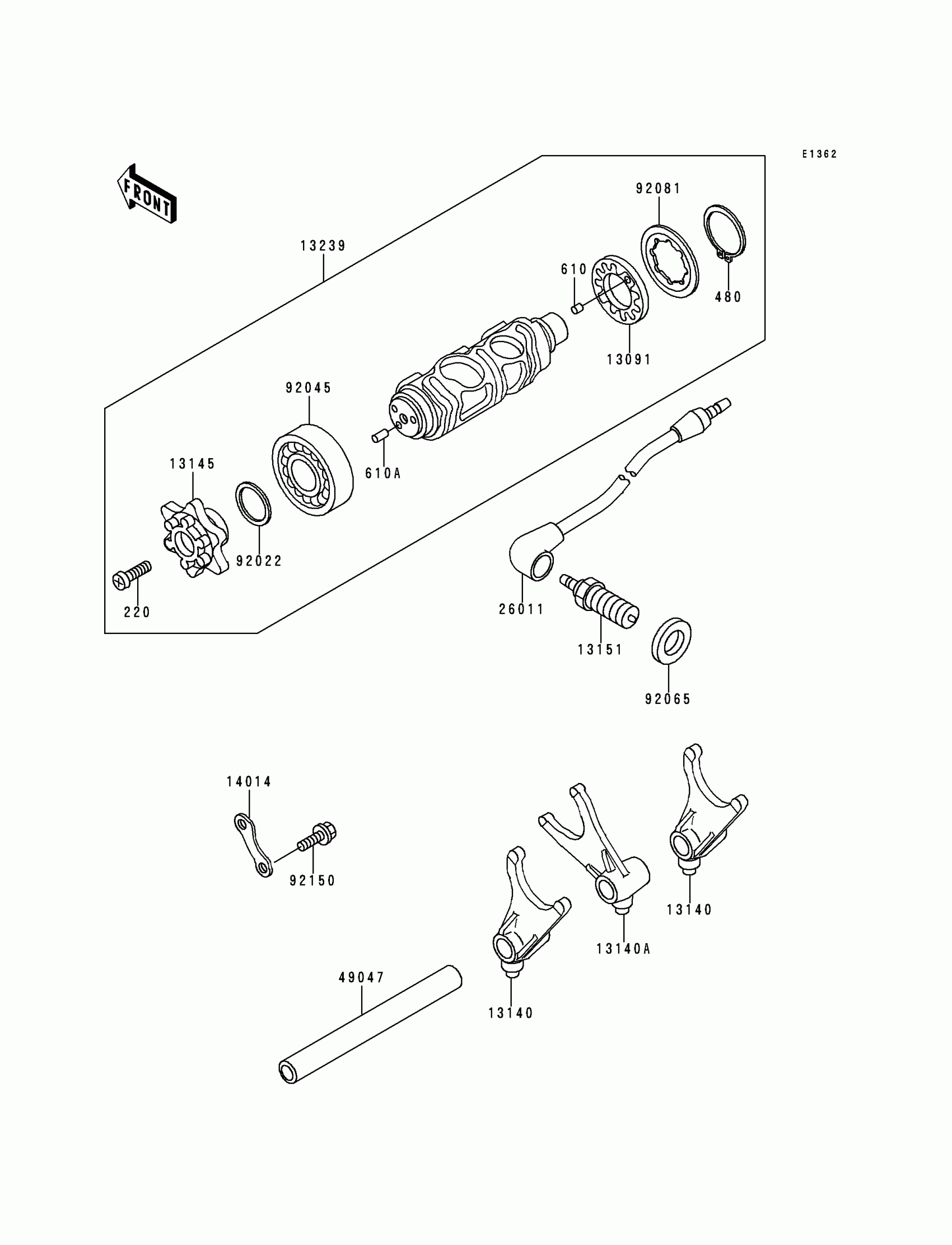

Kawasaki Vulcan 800 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

220

SCREW PAN HEAD 6X30

220B0630

$3.41

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

610

ROLLER,4X4

610A0404

$4.69

610A

ROLLER,4X10

610A0410

$4.31

13091

HOLDER,CHANGE DRUM

13091-1389

$23.25

13140

FORK-SHIFT

13140-1126

$99.62

13140A

FORK-SHIFT

13140-1138

$97.83

13145

CAM-CHANGE DRUM

13145-1051

Unavailable

13151

SWITCH-COMP

13151-1085

$24.19

13239

DRUM-ASSY-CHANGE

13239-1126

$219.98

14014

PLATE-POSITION

14014-1014

$4.69

26011

WIRE-LEAD

26011-1627

$10.03

49047

ROD-SHIFT

49047-1059

$37.86

92022

WASHER,25.3X30X1

92022-161

$10.65

92045

BEARING-BALL,16005Z

92045-1030

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.96

92081

SPRING

92081-1895

$9.20

92150

BOLT,6X12

92150-1868

$3.32
