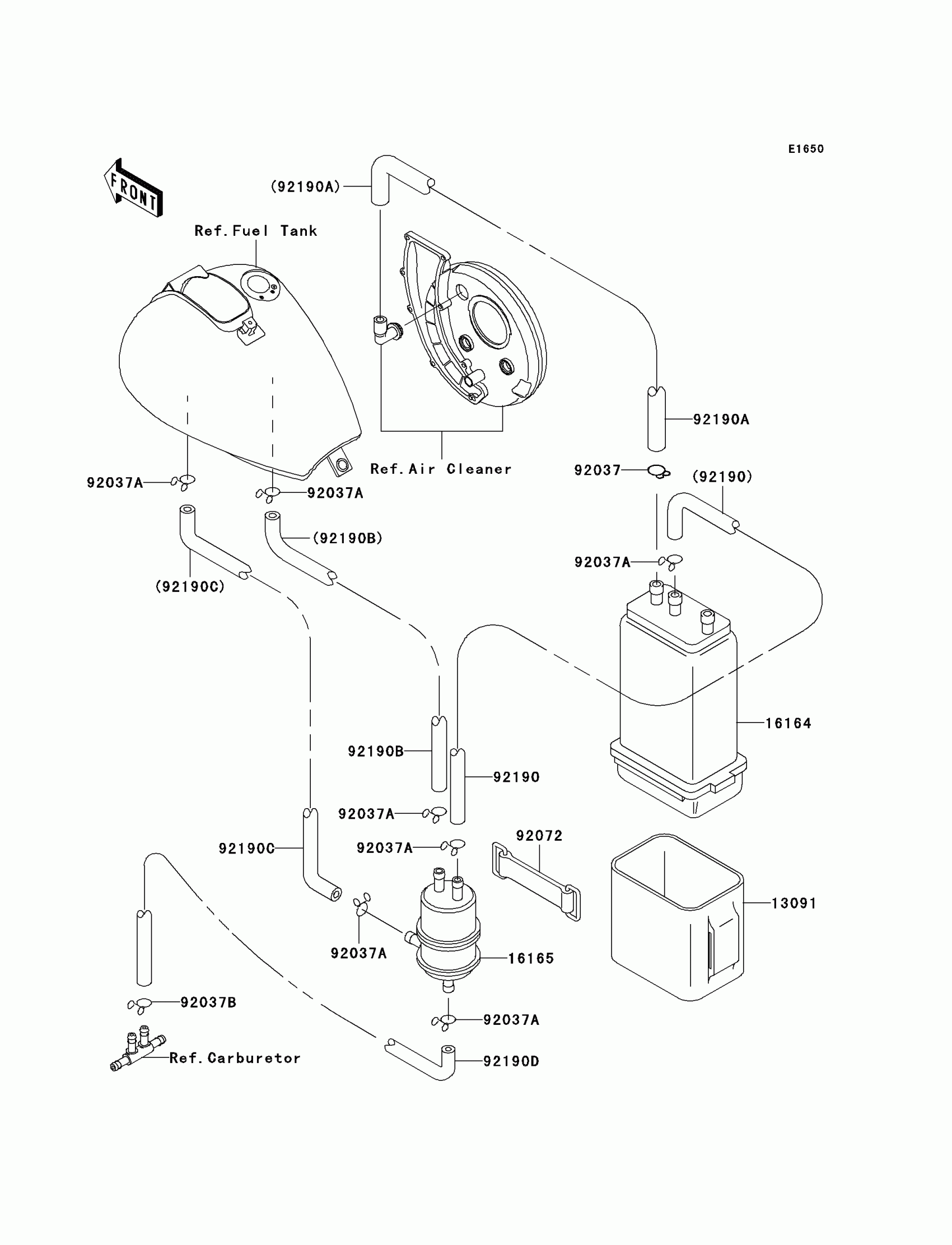

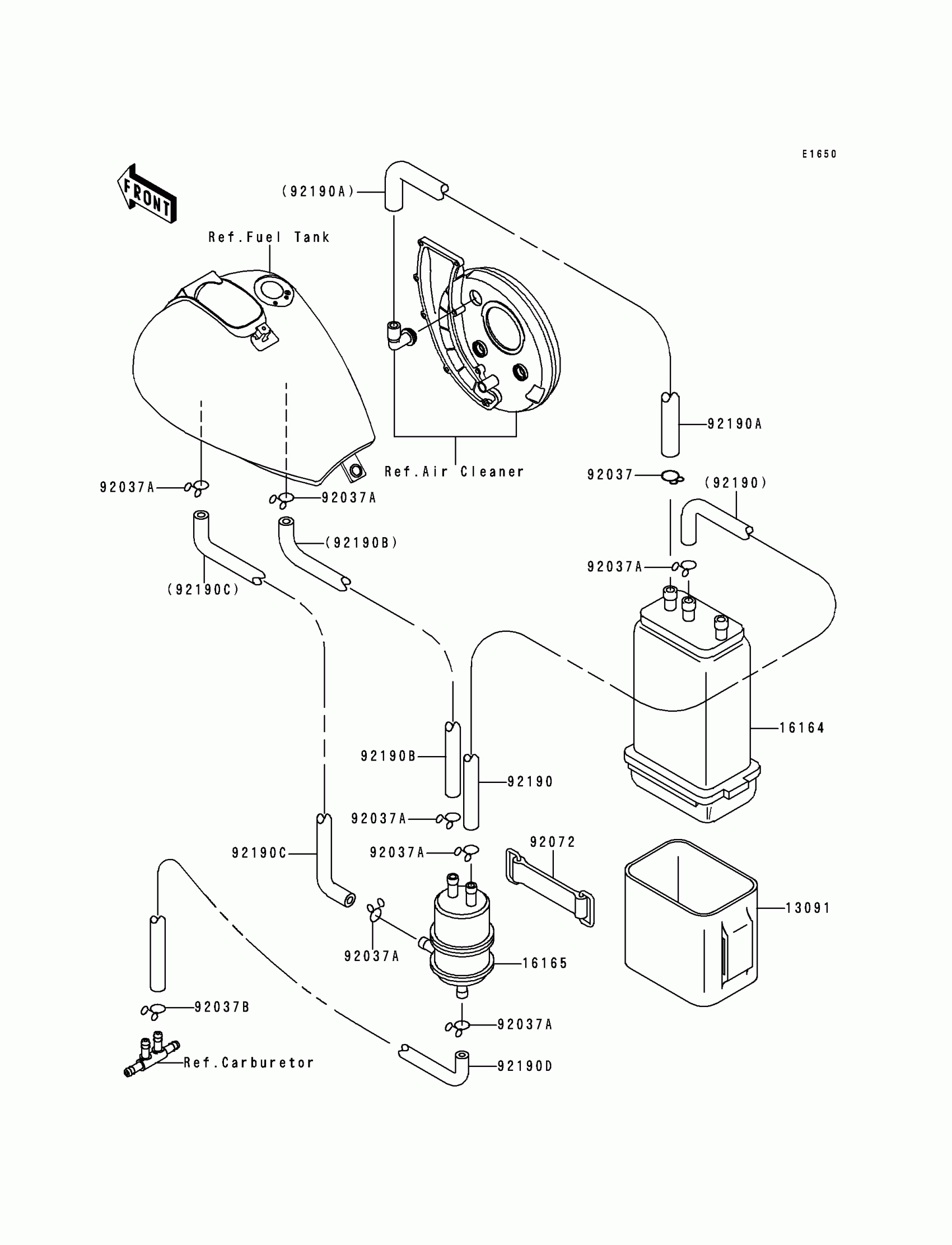

Kawasaki Vulcan 800 Fuel Evaporative System Diagram

Description

Price

13091

HOLDER,CANISTER

13091-1308

$39.18

16164

CANISTER

16164-1052

$134.03

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1610

$1.42

92072

BAND,L=50

92072-066

$12.21

92190

TUBE,CANISTER-SEPA

92190-1618

$10.80

92190A

TUBE,7X12X540,GREEN

92190-1619

$24.97

92190B

TUBE,SEPA-TANK

92190-1620

$40.83

92190C

TUBE,SEPA-TANK

92190-1621

$49.75

92190D

TUBE,SEPA-FITTING

92190-1622

$38.89
