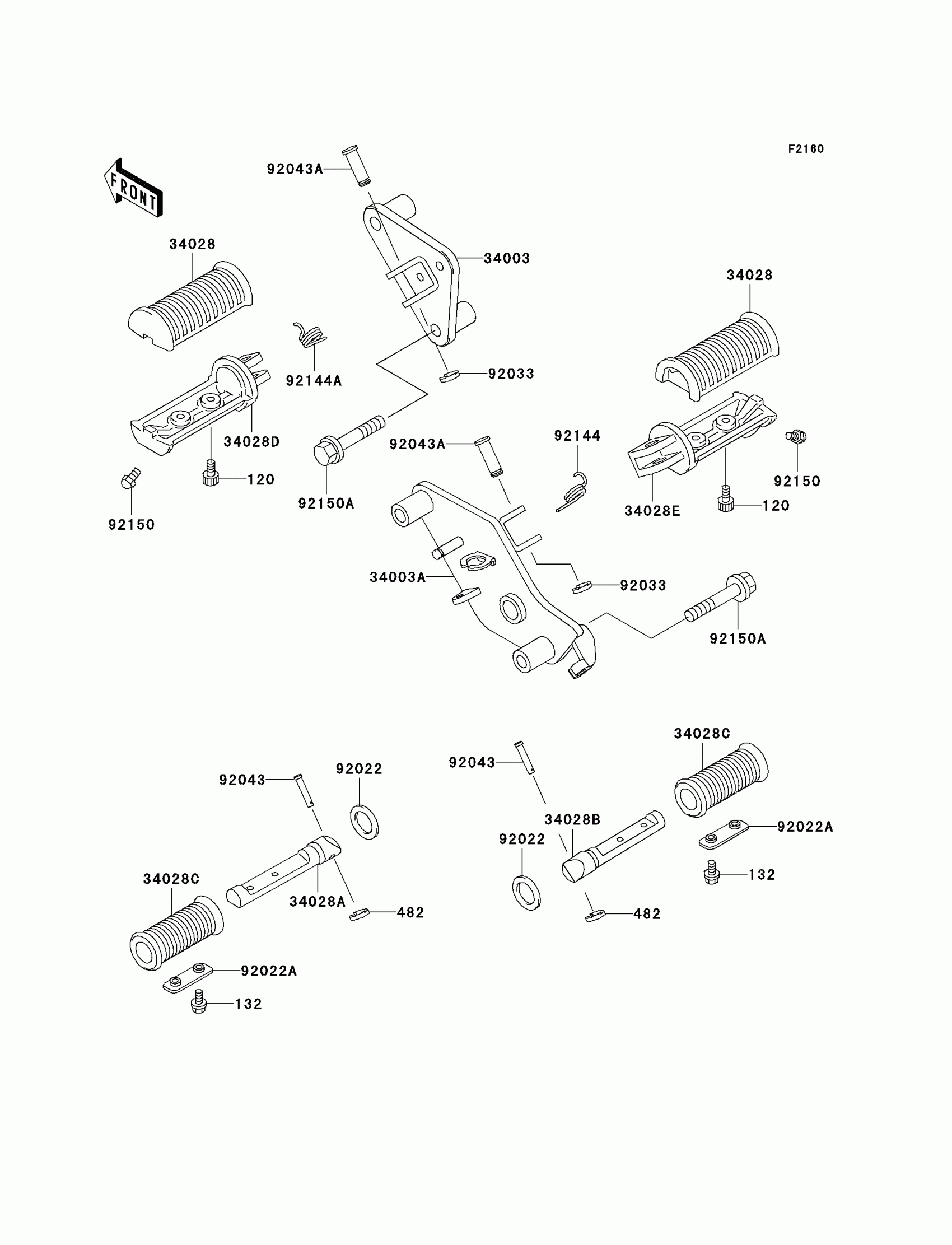

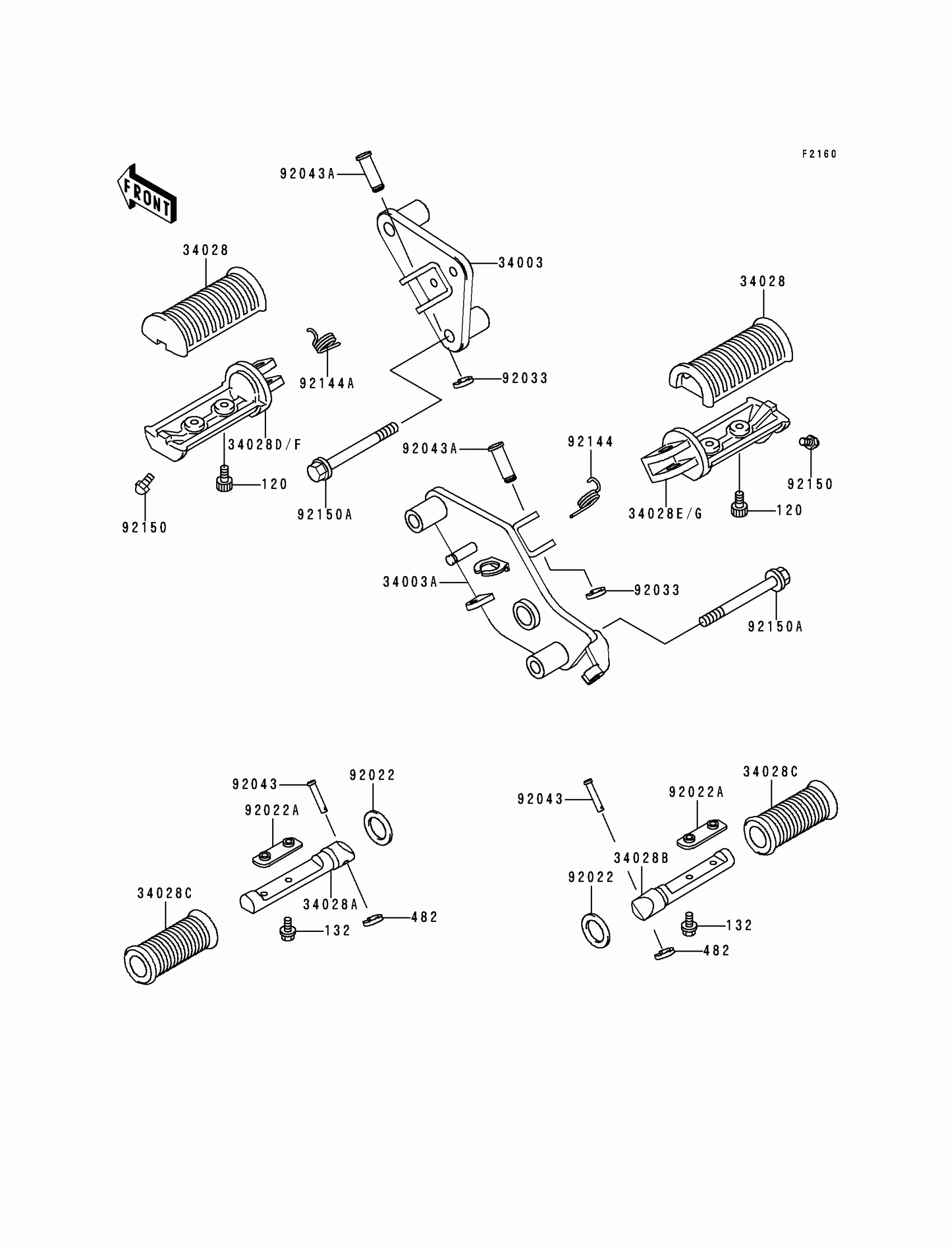

Kawasaki Vulcan 800 Footrests Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

132

BOLT-FLANGED-SMALL,5X10

132J0510

$3.19

482

CIRCLIP-TYPE-E

482L7000

$3.92

34003

HOLDER-STEP,FR,LH

34003-1413

$87.77

34003A

HOLDER-STEP,FR,RH

34003-1414

$118.55

34028

STEP,FR,RUBBER

34028-1217

$24.65

34028A

STEP,RR,LH

34028-1219

$48.65

34028B

STEP,RR,RH

34028-1220

$48.65

34028C

STEP,RR,RUBBER

34028-1221

$12.43

34028F

STEP,FR,LH

34028-1407

$56.41

34028G

STEP,FR,RH

34028-1408

$56.41

92022

WASHER,20X30X2.3

92022-1568

$4.31

92022A

WASHER,STEP

92022-1874

$6.15

92033

RING-SNAP,10MM

92033-1166

$3.89

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,12X37

92043-1358

$8.10

92144

SPRING,STEP RETURN

92144-1126

$6.16

92144A

SPRING,STEP RETURN

92144-1210

$6.89

92150

BOLT,BANK SENSER

92150-1153

$7.84

92150A

BOLT,FLANGED,10X55

92150-1897

Unavailable
