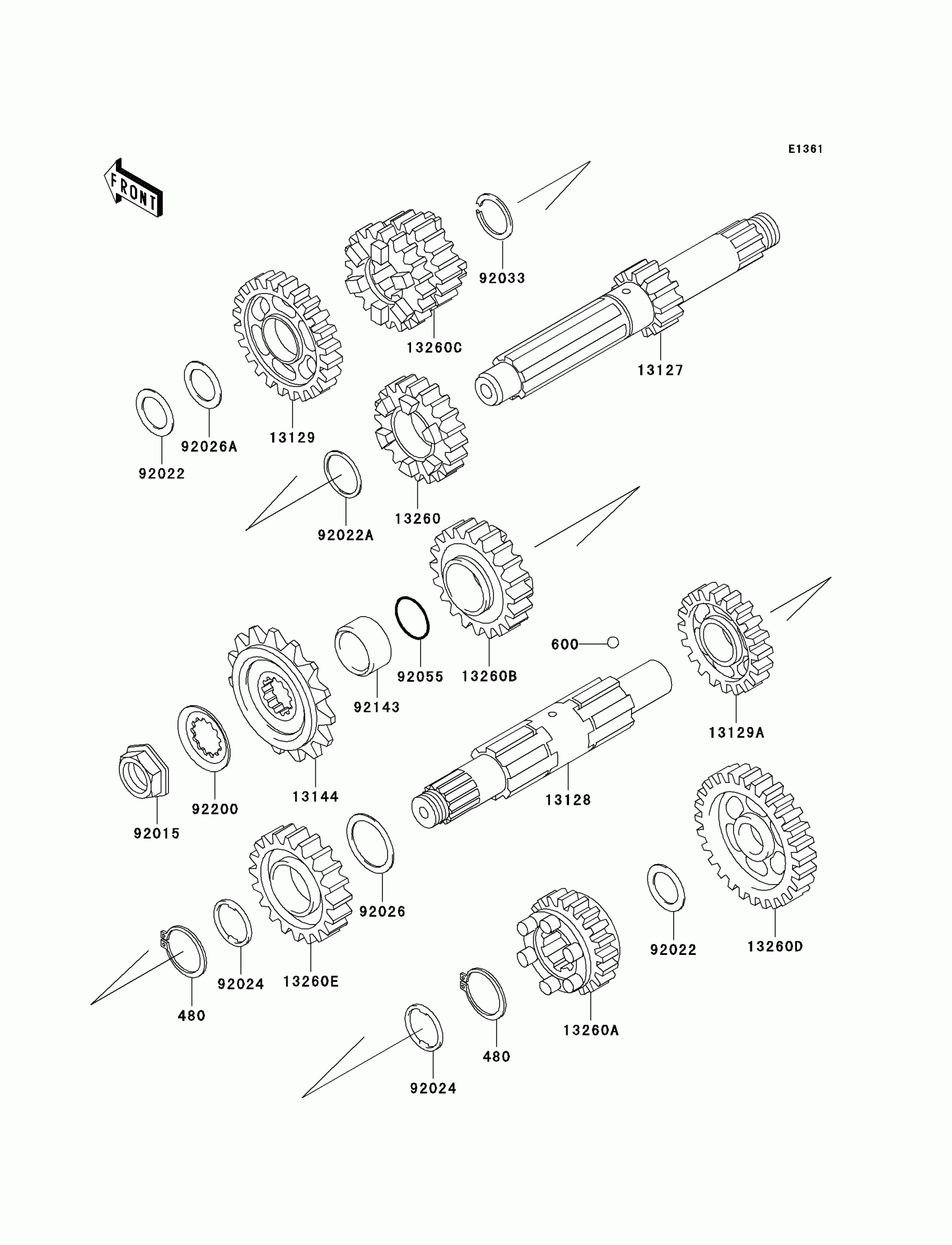

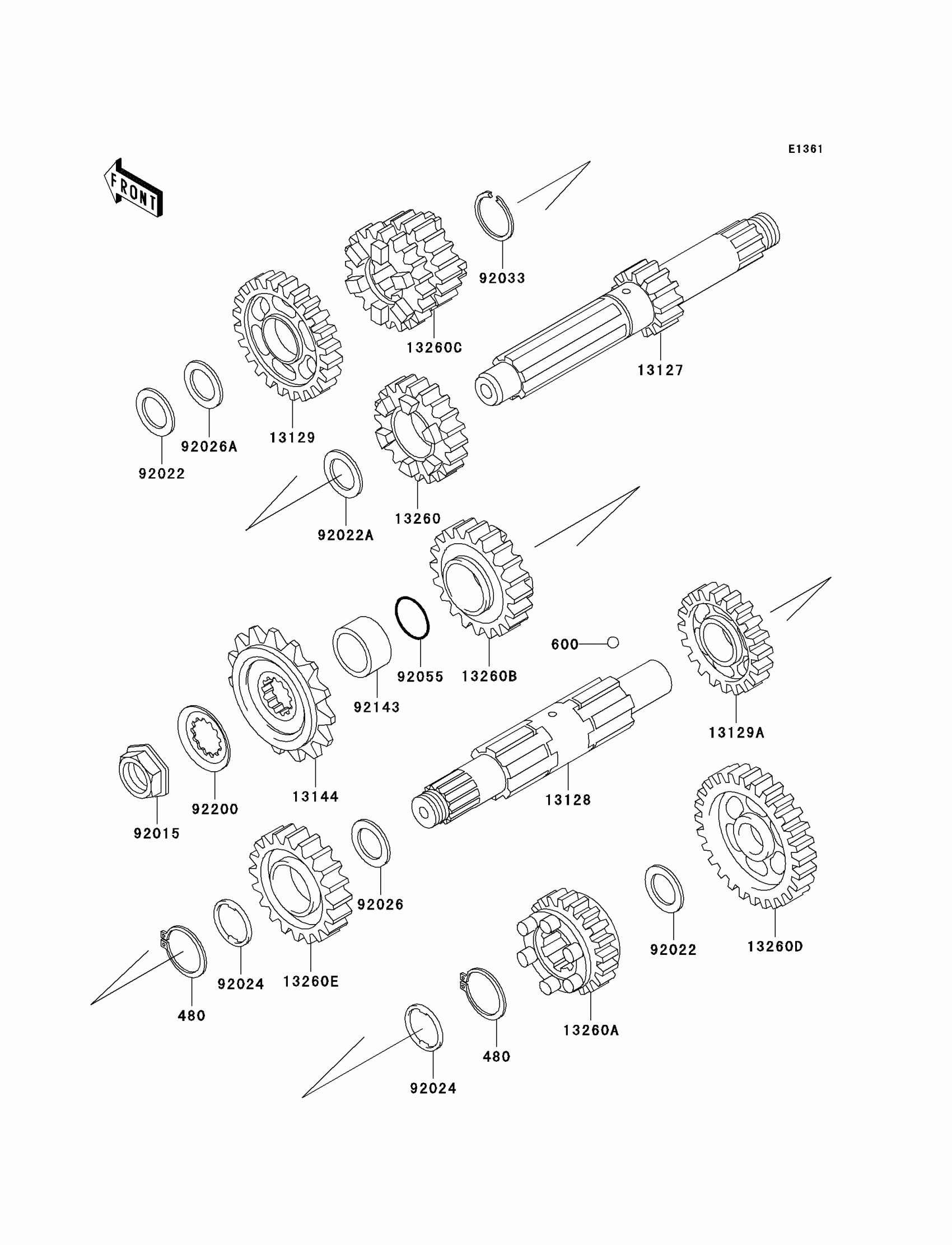

Kawasaki Vulcan 800 Drifter Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1241

$265.94

13128

SHAFT-TRANSMISSION OUTPUT

13128-1204

$246.88

13129

GEAR,INPUT 5TH,28T

13129-1632

$135.39

13129A

GEAR,OUTPUT 3RD,32T

13129-1635

$139.72

13144

SPROCKET-OUTPUT,17T

13144-1304

$46.89

13260

GEAR,INPUT 4TH,29T

13260-1473

$141.03

13260A

GEAR,OUTPUT 4TH,29T

13260-1476

$143.67

13260B

GEAR,OUTPUT 5TH,24T

13260-1477

$143.67

13260C

GEAR,INPUT 2ND&3RD,20T&26T

13260-1486

$141.03

13260D

GEAR,OUTPUT LOW,38T

13260-1487

$141.03

13260E

GEAR,OUTPUT 2ND,33T

13260-1488

$143.67

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92022A

WASHER,25.3X30X1

92022-161

$10.65

92024

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

92026

SPACER,30X38X1.0

92026-079

$8.86

92026A

SPACER,20.5X30X0.5

92026-1535

$7.62

92033

RING-SNAP,24MM

92033-026

$8.79

92055

RING-O

92055-035

$5.00

92143

COLLAR

92143-1735

$23.10

92200

WASHER

92200-1065

$6.63
