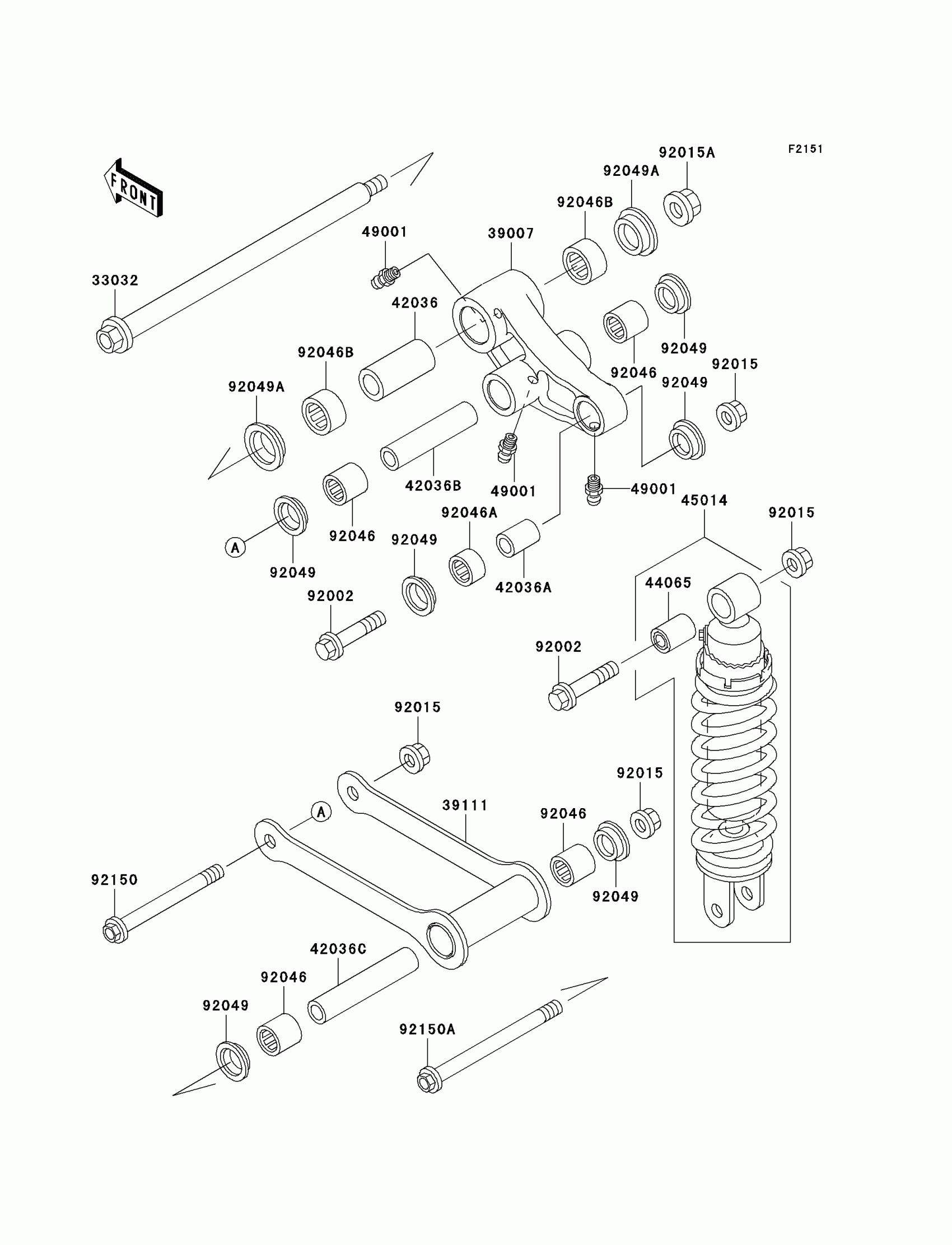

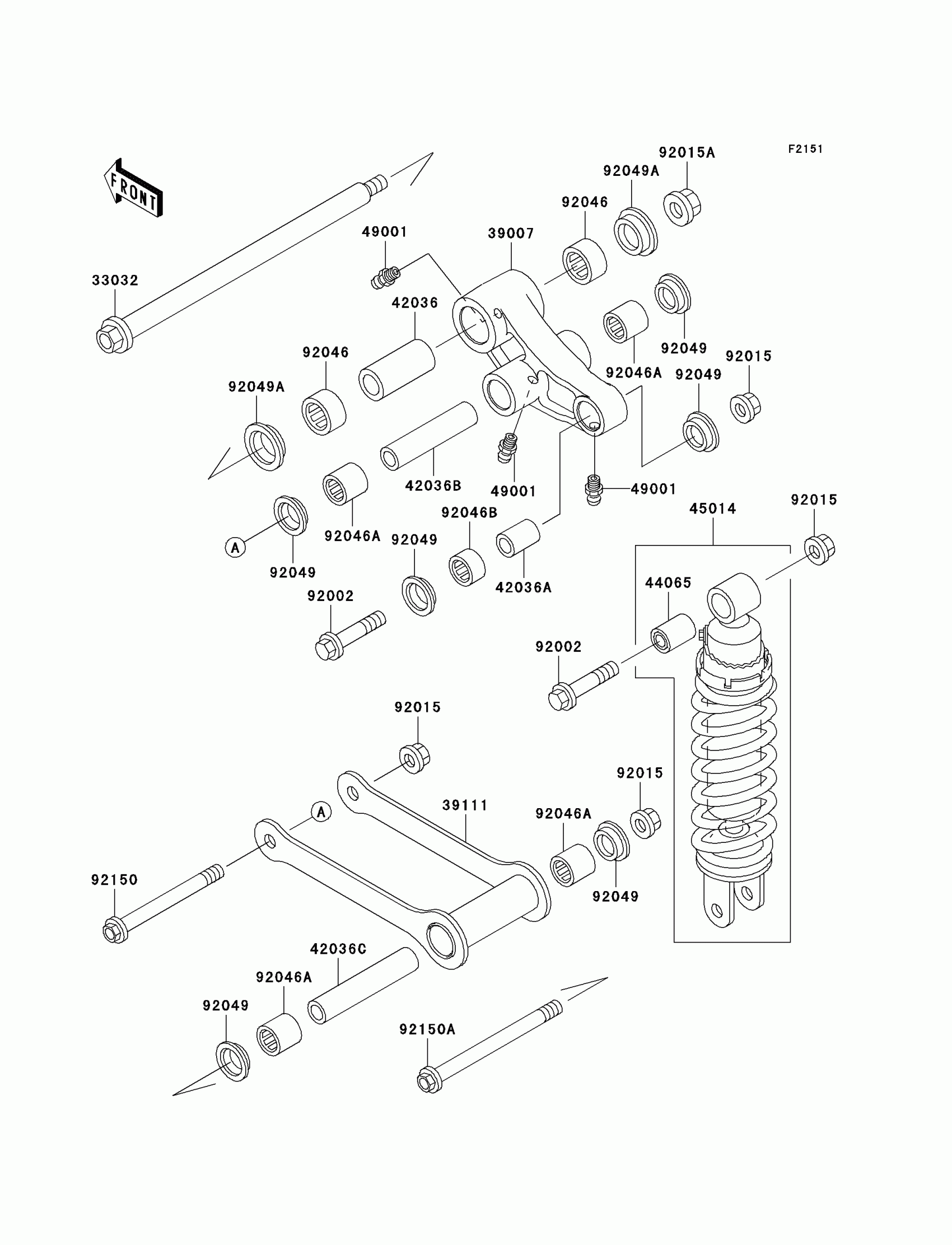

Kawasaki Vulcan 800 Drifter Suspension/Shock Absorber Diagram

Description

Price

33032

SHAFT-SWING ARM

33032-1176

$94.49

39007

ARM-SUSP,UNI TRAK

39007-1280

$263.18

39111

ROD-TIE,SUSPENSION

39111-1141

$139.50

42036

SLEEVE,20X28X60

42036-1207

$34.48

42036A

SLEEVE,12.1X20X30

42036-1234

$14.90

42036B

SLEEVE,12.1X20X92

42036-1322

$18.23

42036C

SLEEVE,12.1X20X108

42036-1323

$24.46

44065

BUSHING,SHOCKABSORBER

44065-1017

$35.38

45014

SHOCKABSORBER

45014-1708

$877.27

49001

NIPPLE-GREASE

49001-0001

$3.02

92002

BOLT,12X55

92002-1130

$10.65

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,FLANGED,16MM

92015-1946

$12.74

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92046A

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046B

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92150

BOLT,FLANGED,12X117

92150-1895

$12.74

92150A

BOLT,FLANGED,12X145

92150-1896

$16.13
