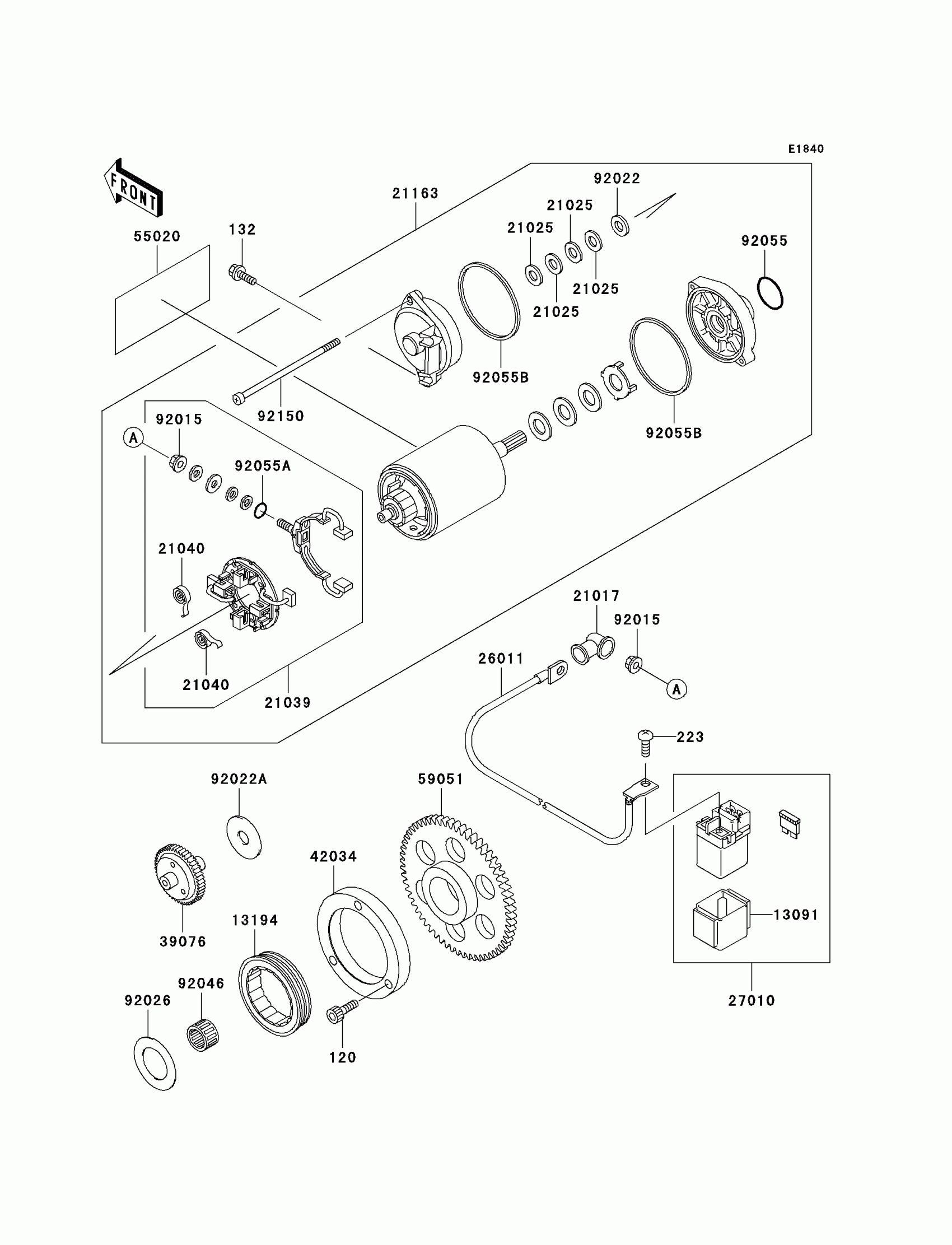

Kawasaki Vulcan 800 Drifter Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,8X20

120Q0820

$4.15

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

223

SCREW-PAN-WS-CROS,5X10

223D0510

Unavailable

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$12.45

13194

CLUTCH-ONEWAY

13194-1085

$166.48

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-1263

$534.05

26011

WIRE-LEAD

26011-1700

$96.10

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1070

$123.35

42034

COUPLING

42034-1143

$121.16

55020

GUARD,STARTER MOTER

55020-1589

$7.20

59051

GEAR-SPUR,STARTER,63T

59051-1130

$176.82

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,12.3X38X2.0

92022-1664

$7.34

92026

SPACER,29.1X47.5X1.2

92026-087

$9.91

92046

BEARING-NEEDLE

92046-1137

$32.05

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92150

BOLT,STARTER MOTOR

92150-1913

$9.51
