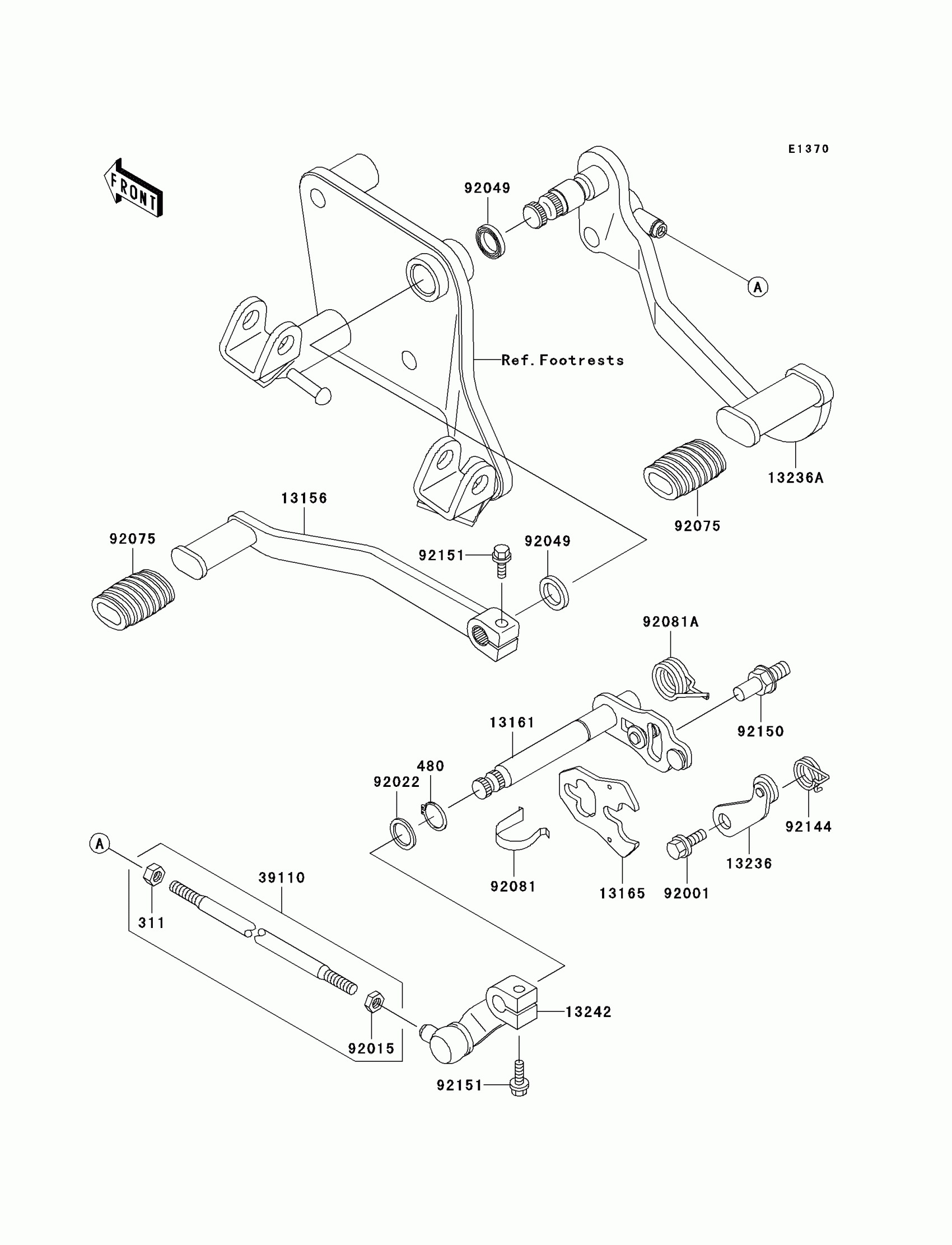

Kawasaki Vulcan 800 Drifter Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

13156

LEVER-CHANGE,PEDAL

13156-1464

$69.67

13161

LEVER-COMP-CHANGE SHAFT

13161-1218

$71.06

13165

PAWL,CHANGE LEVER

13165-1151

$14.10

13236

LEVER-COMP,POSITION

13236-1126

$13.60

13236A

LEVER-COMP,CHANGE

13236-1364

$82.43

13242

LEVER-ASSY-CHANGE

13242-1290

$57.29

39110

ROD-ASSY-TIE

39110-1127

$22.68

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92015

NUT,6MM

92015-1443

$3.92

92015A

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE LEVER

92081-1829

$8.79

92081A

SPRING,CHANGE PEDAL RETURN

92081-1869

$10.19

92144

SPRING,LEVER

92144-1850

$4.14

92150

BOLT,RETURN SPRING

92150-1869

$8.58

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92151A

BOLT,6X20

92151-1450

$2.46
