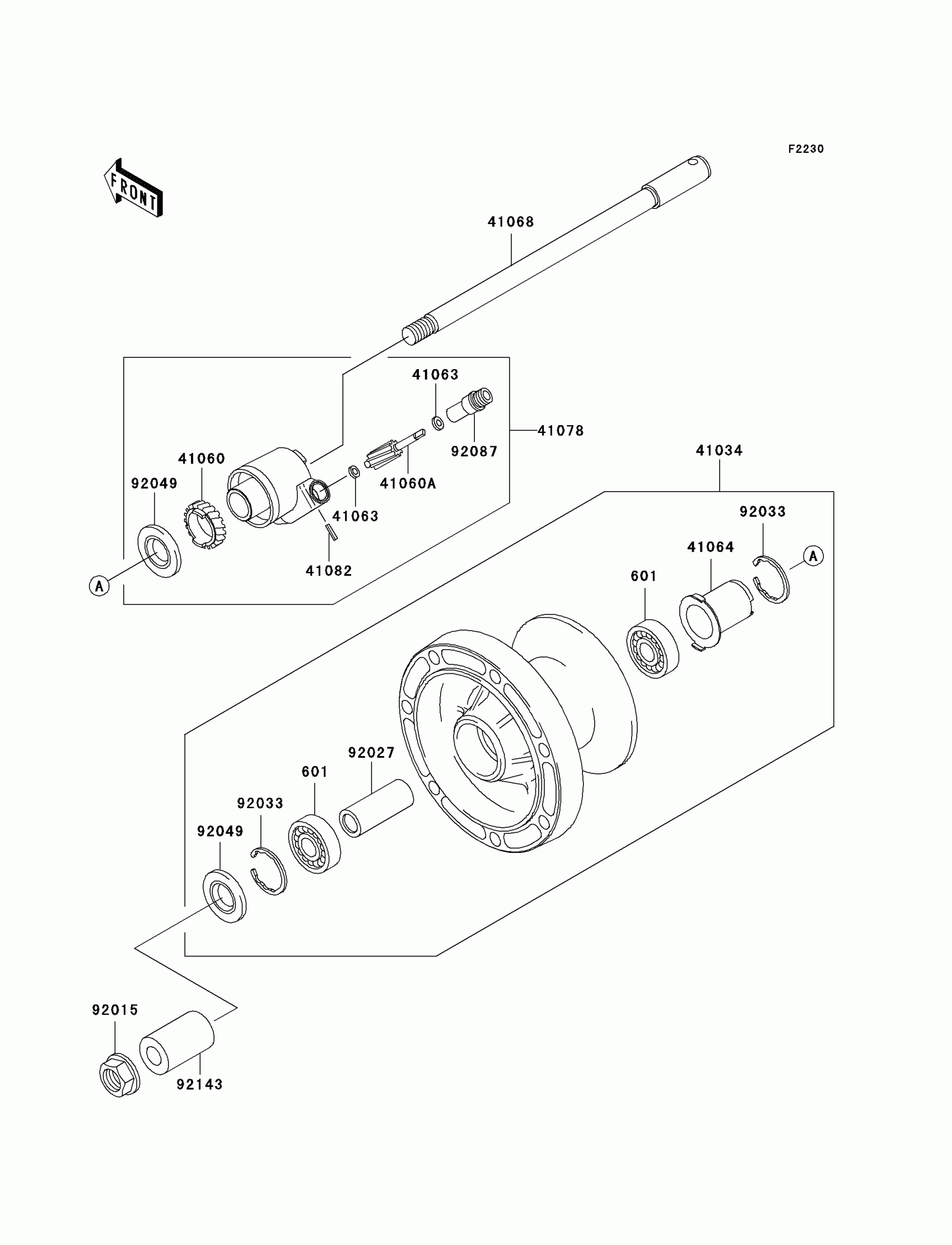

Kawasaki Vulcan 800 Drifter Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6004UUC3

601B6004UU

$28.82

41034

DRUM-ASSY,FRONT BRAKE

41034-1293

$579.06

41060

GEAR-METER SCREW,25T

41060-1160

$19.64

41060A

GEAR-METER SCREW,9T

41060-1161

$21.74

41063

WASHER,5.1X9X0.4

41063-001

$4.69

41064

RECEIVER-SPEEDOMETER

41064-1059

$27.59

41068

AXLE,FR

41068-1378

$75.55

41078

CASE-ASSY-METER GEAR

41078-1106

$118.99

41082

PIN,SPRING

41082-001

$3.92

92015

NUT,FLANGED,18MM

92015-1993

$9.51

92027

COLLAR,20.2X28X70

92027-1752

$18.57

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92087

BUSHING-METER GEAR

92087-1056

$21.77

92143

COLLAR,FR AXLE,LH,L=48.5

92143-1837

$36.45
