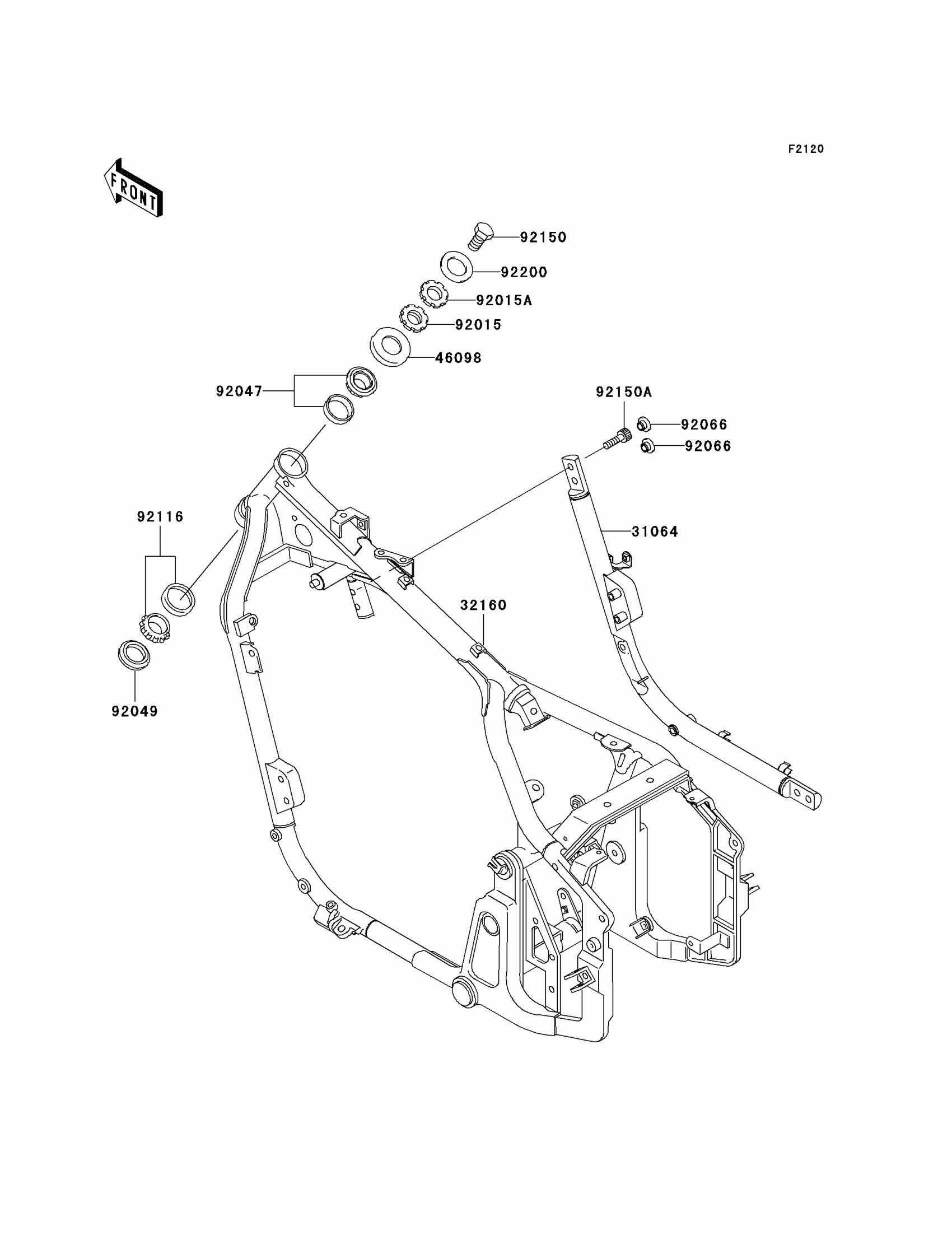

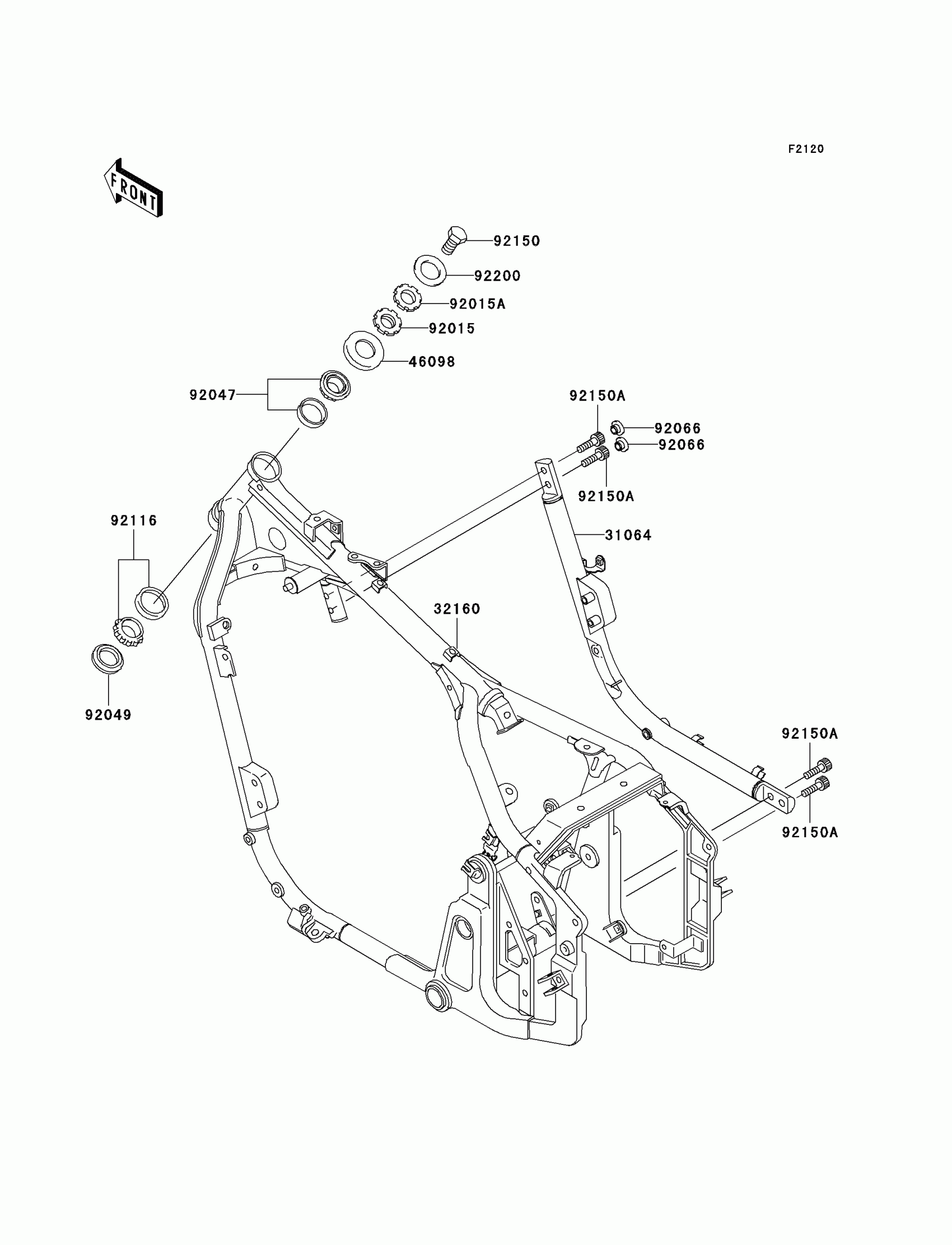

Kawasaki Vulcan 800 Drifter Frame Diagram

Description

Price

31064

PIPE-COMP,DOWNTUBE,RH

31064-1221

$346.23

32160

FRAME-COMP

32160-1697

$1,742.35

46098

CAP,STEERING STEM

46098-017

$6.16

92015

NUT,25MM,T=10

92015-1377

$27.29

92015A

NUT,25MM,T=6

92015-1378

$20.96

92047

RACE,ROLLER,32005JR RS

92047-017

$43.75

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92066

PLUG

92066-1285

$7.77

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92150

BOLT,14X25

92150-1672

$14.23

92150A

BOLT,SOCKET,10X23

92150-1942

$7.34

92200

WASHER

92200-1140

$11.50
