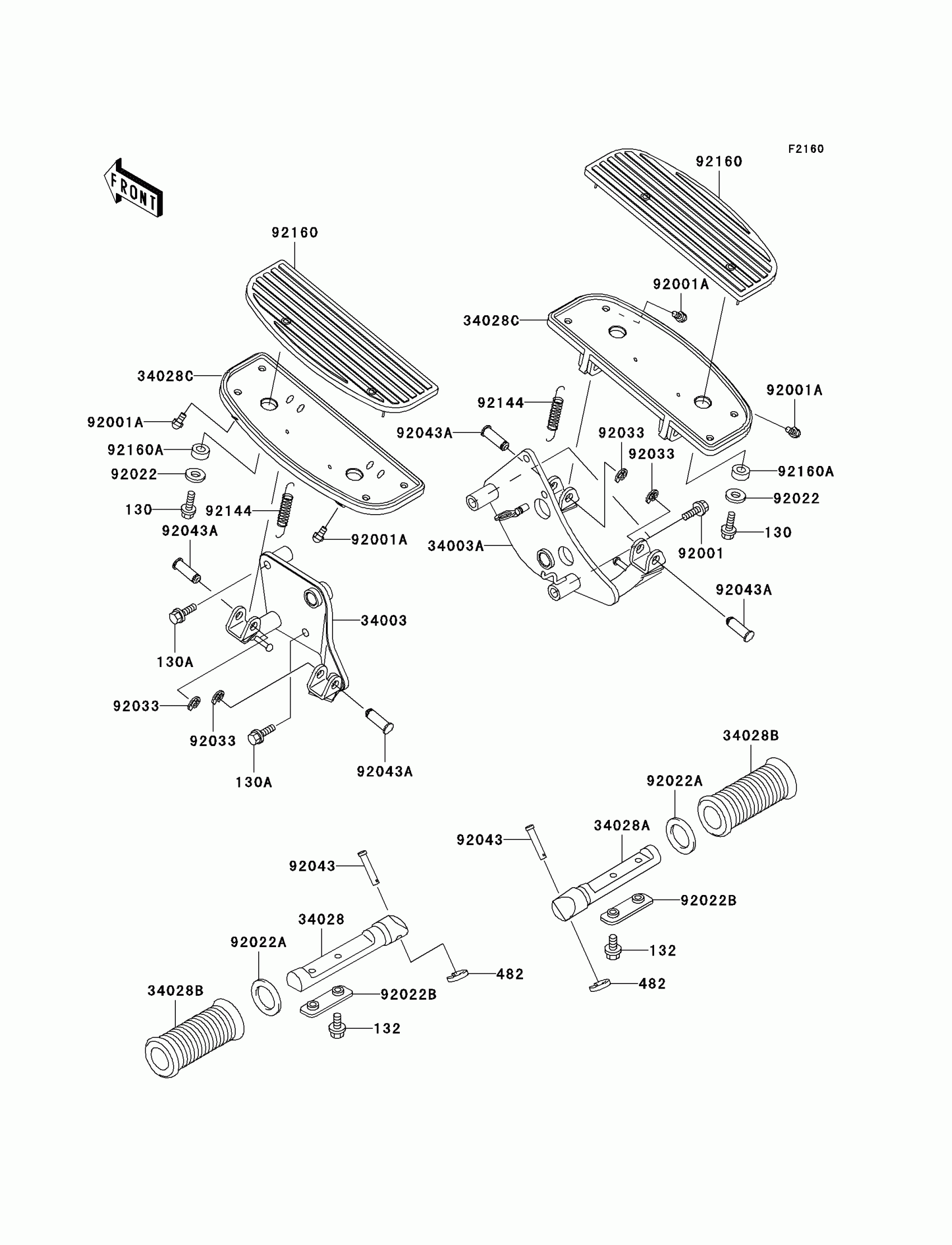

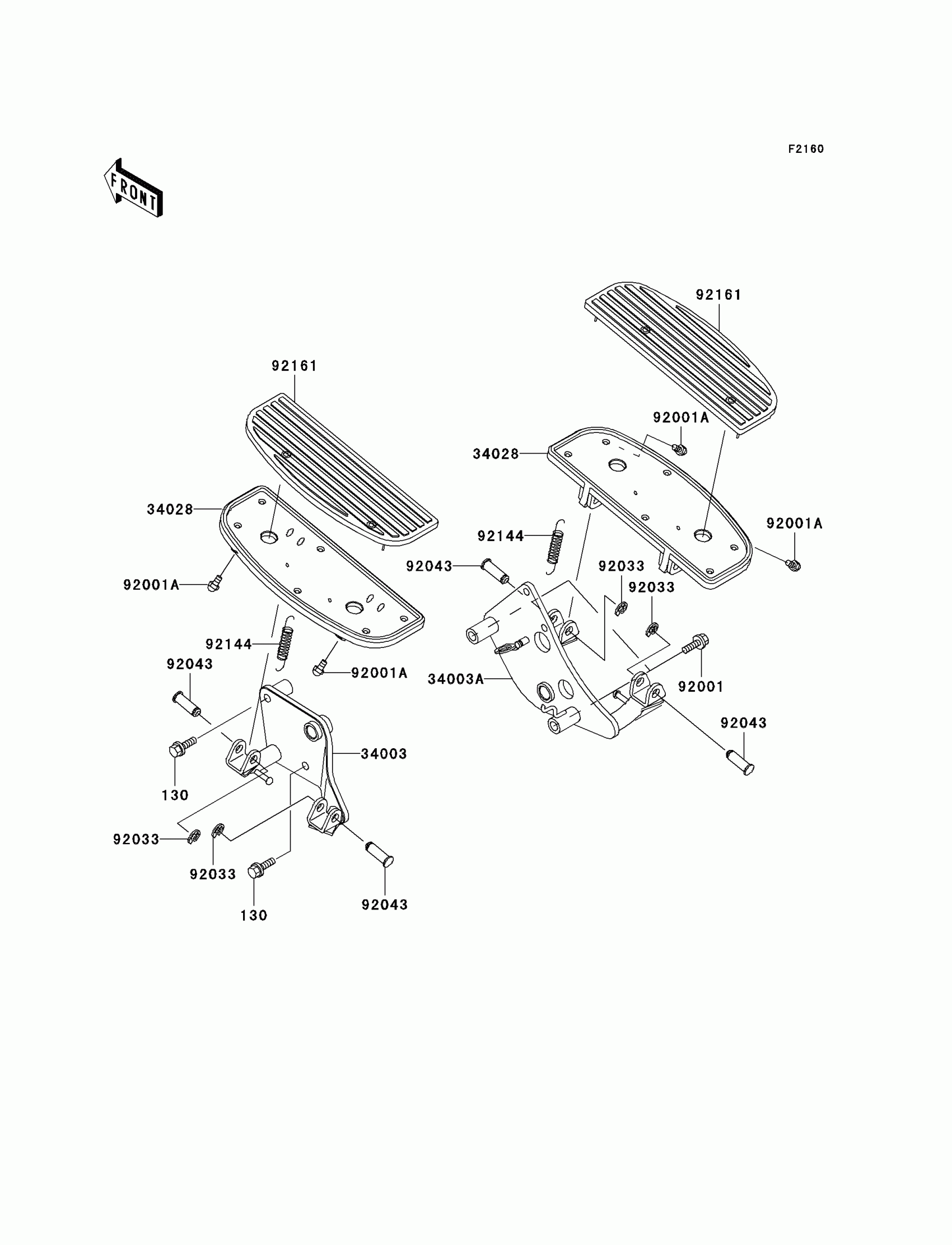

Kawasaki Vulcan 800 Drifter Footrests Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,10X55

130J1055

$6.21

132

BOLT-FLANGED-SMALL,5X10

132J0510

$3.19

482

CIRCLIP-TYPE-E

482L7000

$3.92

34003

HOLDER-STEP,FR,LH

34003-1487

$178.78

34003A

HOLDER-STEP,FR,RH

34003-1488

$181.97

34028

STEP,RR,LH

34028-1219

$48.65

34028A

STEP,RR,RH

34028-1220

$48.65

34028B

STEP,RR,RUBBER

34028-1221

$12.43

34028C

STEP,FR

34028-1417

$140.51

92001

BOLT,FLANGED,10X60

92001-1617

$9.89

92001A

BOLT,BANK SENSOR

92001-1905

$7.31

92022

WASHER,7X28X1.6,BLACK

92022-1392

$2.61

92022A

WASHER,20X30X2.3

92022-1568

$4.31

92022B

WASHER,STEP

92022-1874

$6.15

92033

RING-SNAP,10MM

92033-1166

$3.89

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,12X37

92043-1358

$8.10

92144

SPRING

92144-1266

$8.79

92160

DAMPER,FRONT STEP

92160-1727

$71.79

92160A

DAMPER

92160-1728

$3.96
