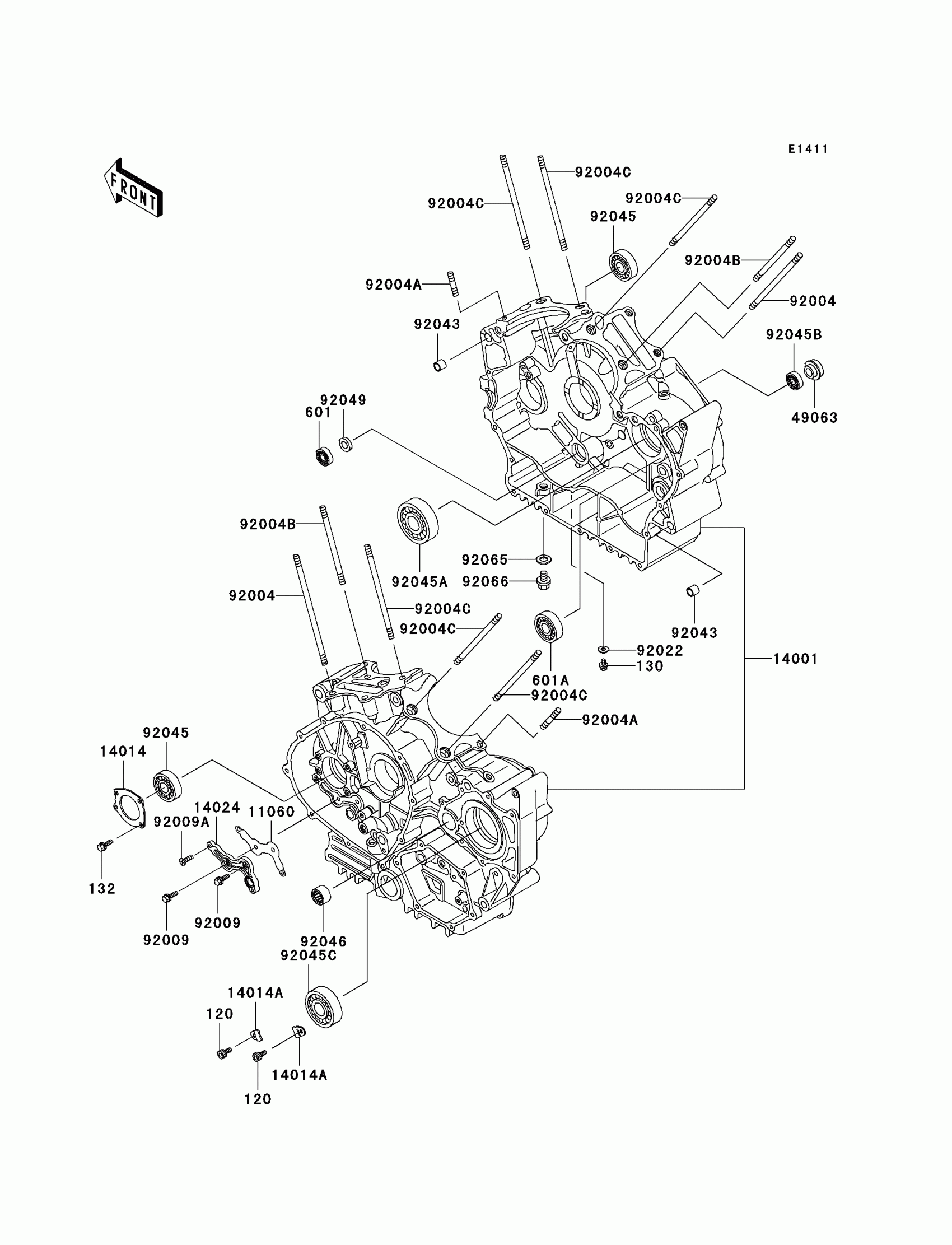

Kawasaki Vulcan 800 Drifter Crankcase Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120S0612

$2.33

130

BOLT-FLANGED

130J0610

$2.33

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

601

BEARING-BALL

601A6001

$11.71

601A

BEARING-BALL

601A6204Z

$29.98

11060

GASKET,OIL LINE COVER

11060-1087

$9.13

14001

SET-CRANKCASE

14001-5342

$1,585.40

14014

PLATE-POSITION

14014-1068

$17.56

14014A

PLATE-POSITION

14014-1121

$4.39

14024

COVER,OIL LINE

14024-1074

$36.01

49063

SEAL-MECHANICAL

49063-1057

$47.03

92004

STUD,8X165.5

92004-1035

$9.26

92004A

STUD,8X28.5

92004-1142

$6.89

92004B

STUD,10X148

92004-1220

$13.04

92004C

STUD,10X160

92004-1221

$13.82

92009

SCREW-PAN-CROS,6X16

92009-1266

$4.31

92009A

SCREW,6X20

92009-1447

$4.78

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92043

PIN,11X14X12.3

92043-1266

$1.08

92045

BEARING-BALL,TMB204 JR

92045-1041

$32.24

92045A

BEARING-BALL,TMB305

92045-1137

$49.59

92045B

BEARING-BALL,6001JRXLLU/5K

92045-1151

$27.31

92045C

BEARING-BALL,TMB305X3

92045-1167

$53.69

92046

BEARING-NEEDLE

92046-1239

$20.59

92049

SEAL-OIL,SC 12X22X5

92049-1228

$9.28

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16
