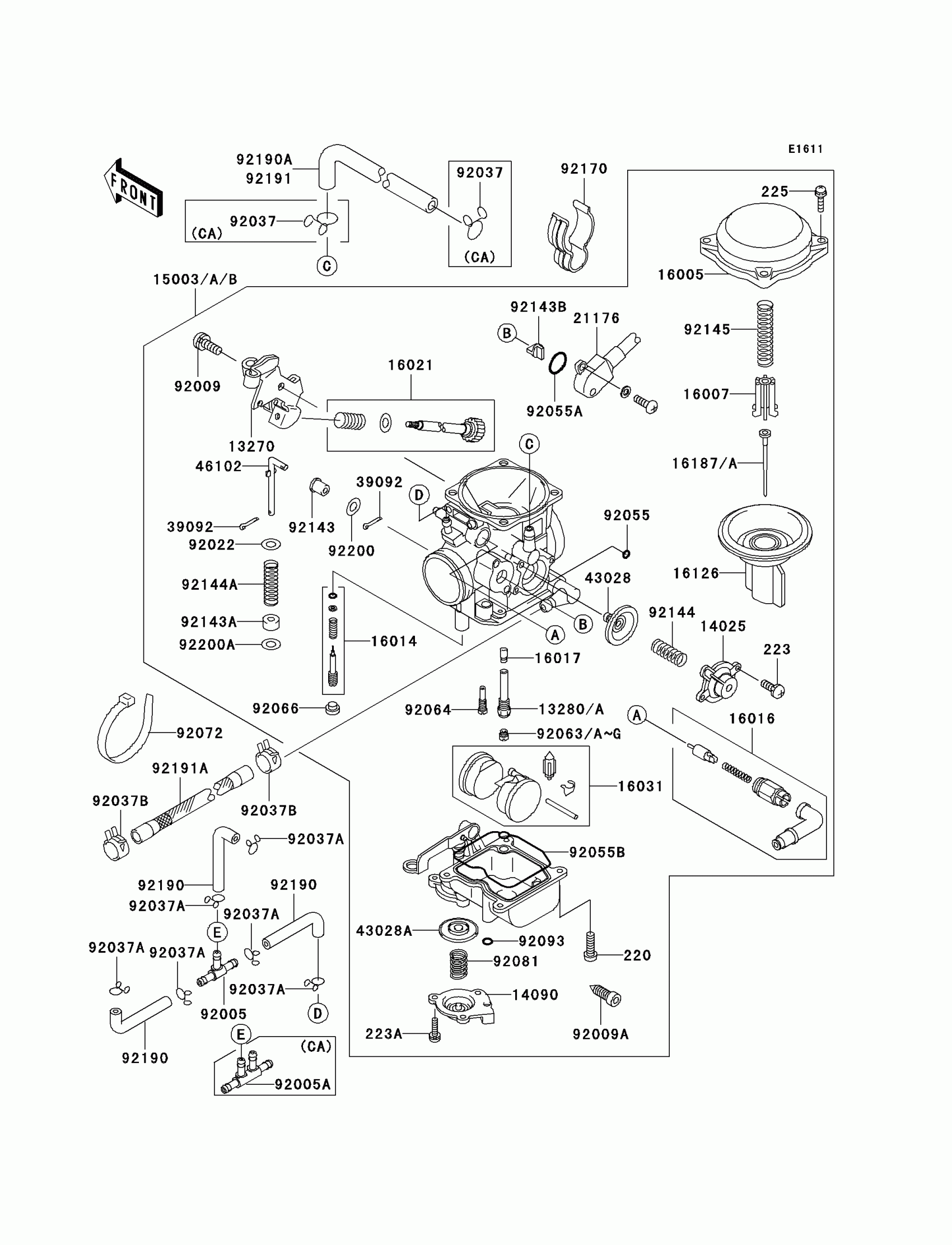

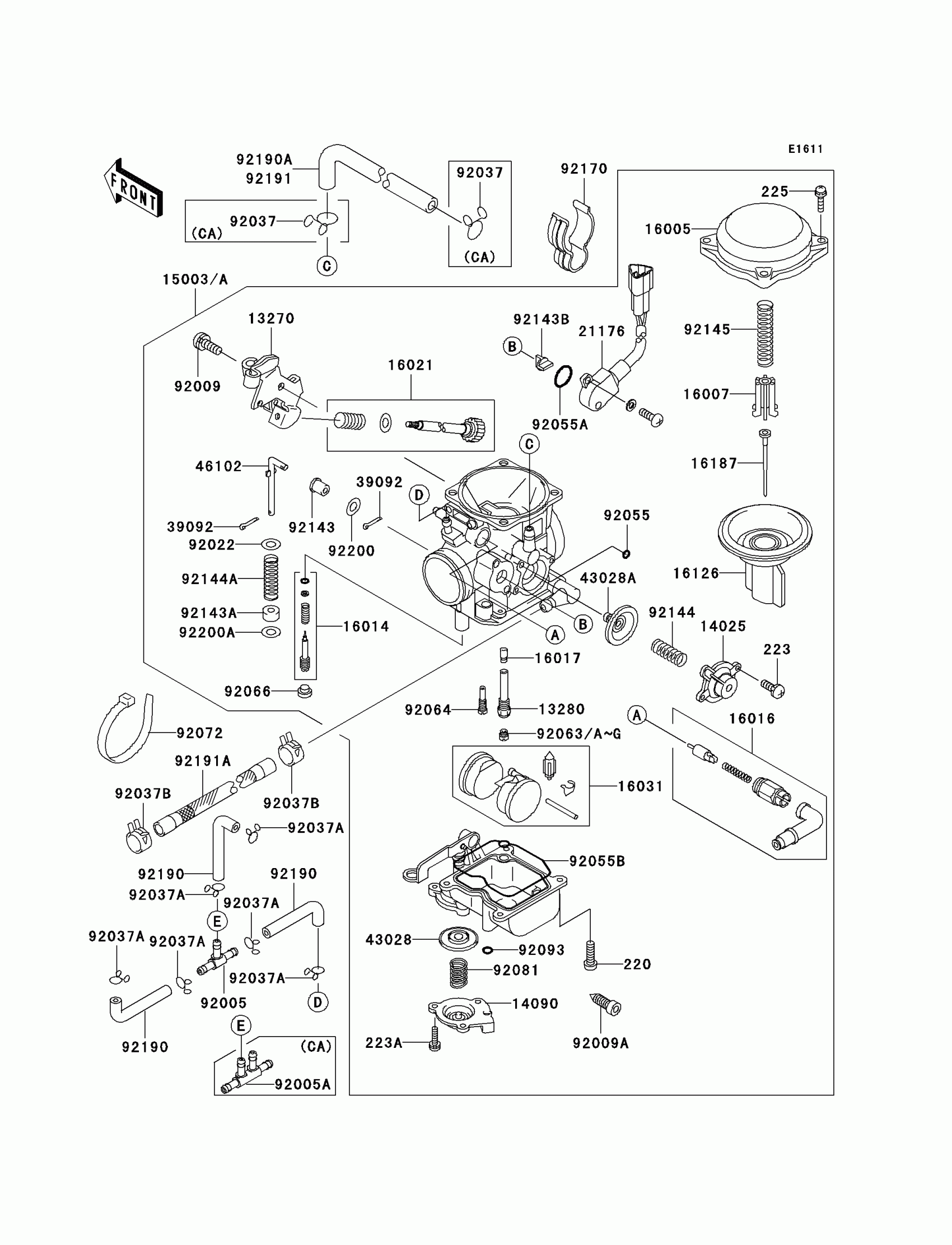

Kawasaki Vulcan 800 Drifter Carburetor Diagram

#

Description
Price

13270

PLATE

13270-1513

$42.51

13280

HOLDER,NEEDLE JET

13280-1140

$34.95

14025

COVER,AIR CUT VALVE

14025-1903

$58.45

14090

COVER,ACCELERATOR

14090-1635

$59.33

16005

TOP-CHAMBER,MIXING,27/60

16005-1057

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16014

SCREW-PILOT AIR

16014-1081

$24.57

16016

PLUNGER,STARTER

16016-1100

$45.48

16017

JET-NEEDLE,#6

16017-1405

$51.06

16021

SCREW-THROTTLE STOP

16021-1207

$121.16

16031

FLOAT

16031-1102

$70.82

16126

VALVE,VACUUM

16126-1170

$200.34

16187A

NEEDLE-JET,N8GT

16187-1114

$38.74

21176

SENSOR

21176-1096

$252.96

39092

PIN-HAIR

39092-1058

$3.06

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

43028A

DIAPHRAGM

43028-1077

$89.08

46102

ROD

46102-1385

$15.04

92009

SCREW,5X10

92009-1365

$7.34

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92022

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037A

CLAMP

92037-1610

$2.00

92037B

CLAMP

92037-2082

$1.45

92055

RING-O

92055-1245

$5.57

92055A

RING-O,SENSOR

92055-1574

$4.33

92055B

RING-O,FLOAT CHAMBER

92055-1615

$28.74

92063

JET-MAIN,#140

92063-1013

$14.10

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

223

SCREW-PAN-WS-CROS,4X8

223C0408

$1.20

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

92063B

JET-MAIN,#135

92063-1014

$14.10

92063G

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT

92064-1174

$19.04

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92072

BAND,L=365

92072-1197

$7.84

92081

SPRING,DIAPHRAGM

92081-1092

$11.61

92093

SEAL-"U"RING

92093-1046

$6.51

92143

COLLAR

92143-1790

$3.72

92143A

COLLAR

92143-1791

$8.94

92143B

COLLAR

92143-1907

$9.50

92144

SPRING

92144-1885

Unavailable

92144A

SPRING

92144-1886

Unavailable

92145

SPRING,VACUUM VALVE

92145-1064

$29.95

92170

CLAMP,HOSE

92170-1703

$9.47

92190

TUBE,4X9X80

92190-1610

$4.74

92191A

TUBE,FUEL

92191-1351

$24.25

92200

WASHER

92200-1274

$3.12

92200A

WASHER

92200-1275

$3.12

15003

CARBURETOR-ASSY

15003-1452

$1,002.22

15003B

CARBURETOR-ASSY

15003-1559

$1,002.22

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1307

$8.94

92037

CLAMP-HOSE

92037-1104

$1.45

92063A

JET-MAIN,#135

92063-1014

$14.10

92063C

JET-MAIN,#138

92063-1015

$14.10

92063D

JET-MAIN,#138

92063-1015

$14.10

92063E

JET-MAIN,#142

92063-1016

$14.10

92063F

JET-MAIN,#130

92063-1075

$14.10

92190A

TUBE,7X12X540,GREEN

92190-1619

$26.61

92191

TUBE,7X12X480,YELLOW

92191-1008

$23.10
