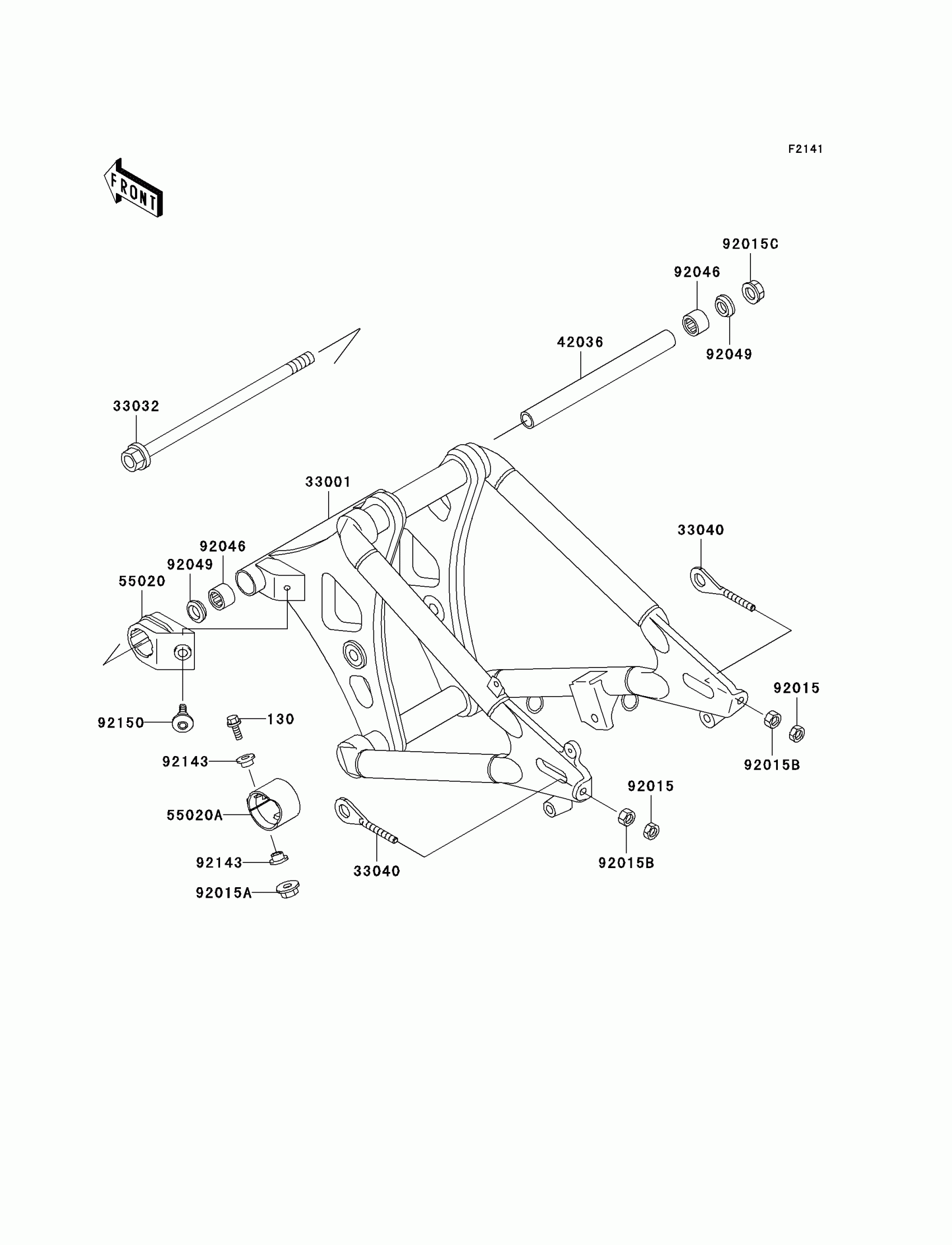

Kawasaki Vulcan 800 Classic Swingarm Diagram

Description

Price

130

BOLT-FLANGED,6X25

130J0625

$2.62

33001

ARM-COMP-SWING

33001-1509

$621.22

33032

SHAFT-SWING ARM

33032-1177

$67.66

33040

ADJUSTER-CHAIN

33040-1146

$31.80

42036

SLEEVE,SWING ARM,L=243

42036-1324

$42.43

55020

GUARD,CHAIN PIVOT

55020-1530

$52.47

55020A

GUARD,CHAIN CLOSS

55020-1531

$26.61

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015B

NUT,8MM

92015-1658

$4.87

92015C

NUT,FLANGED,16MM

92015-1946

$12.74

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$36.90

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

$8.86

92143

COLLAR,L=6.6

92143-1088

$5.33

92150

BOLT,SOCKET,6MM

92150-1154

$7.84
