Description

Price

554

PIN-SNAP,10MM

554A1000

$1.36

601

BEARING-BALL,#6205UG

601B6205UG

$33.41

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$33.26

41034

DRUM-ASSY,REAR BRAKE

41034-1248

$510.58

41035

PANEL-ASSY-BRAKE,RR

41035-1482

$506.30

41048

SHOE-BRAKE

41048-1070

$51.67

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-1013

$58.76

41051

SEAL,BRAKE CAM

41051-003

$4.26

41053

LEVER-BRAKE CAM

41053-1063

$67.12

41060

GEAR-METER SCREW,23T

41060-1154

$21.74

41060A

GEAR-METER SCREW,8T

41060-1155

$21.74

41064

RECEIVER-SPEEDOMETER

41064-1057

$56.68

41068

AXLE,RR

41068-1365

$79.09

41085

INDICATOR

41085-1054

$14.32

42033

COUPLING-ASSY,RR HUB

42033-1219

$212.86

42036

SLEEVE,RR HUB,L=33

42036-1146

$49.58

42041

SPROCKET-HUB,42T

42041-1473

$69.17

92004

STUD,10X19

92004-1275

Unavailable

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,FLANGED,16MM

92015-1946

$12.74

92022

WASHER,5X9.5X0.8

92022-1511

$3.92

92027

COLLAR,REAR AXLE,LH,L=18.5

92027-1321

$27.33

92027A

COLLAR,17.2X25X96

92027-1555

$20.50

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK50MV-XX112L

92057-0002

$387.57

92058

JOINT-CHAIN,DRIVE

92058-1098

$16.57

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1816

$11.38

92087

BUSHING-METER GEAR

92087-1060

$19.48

92150

BOLT,8X27

92150-1797

$5.57

92160

DAMPER,SHOCK,RR HUB

92160-1697

$26.04

92200

WASHER,24X32X1.5

92200-1269

$5.88

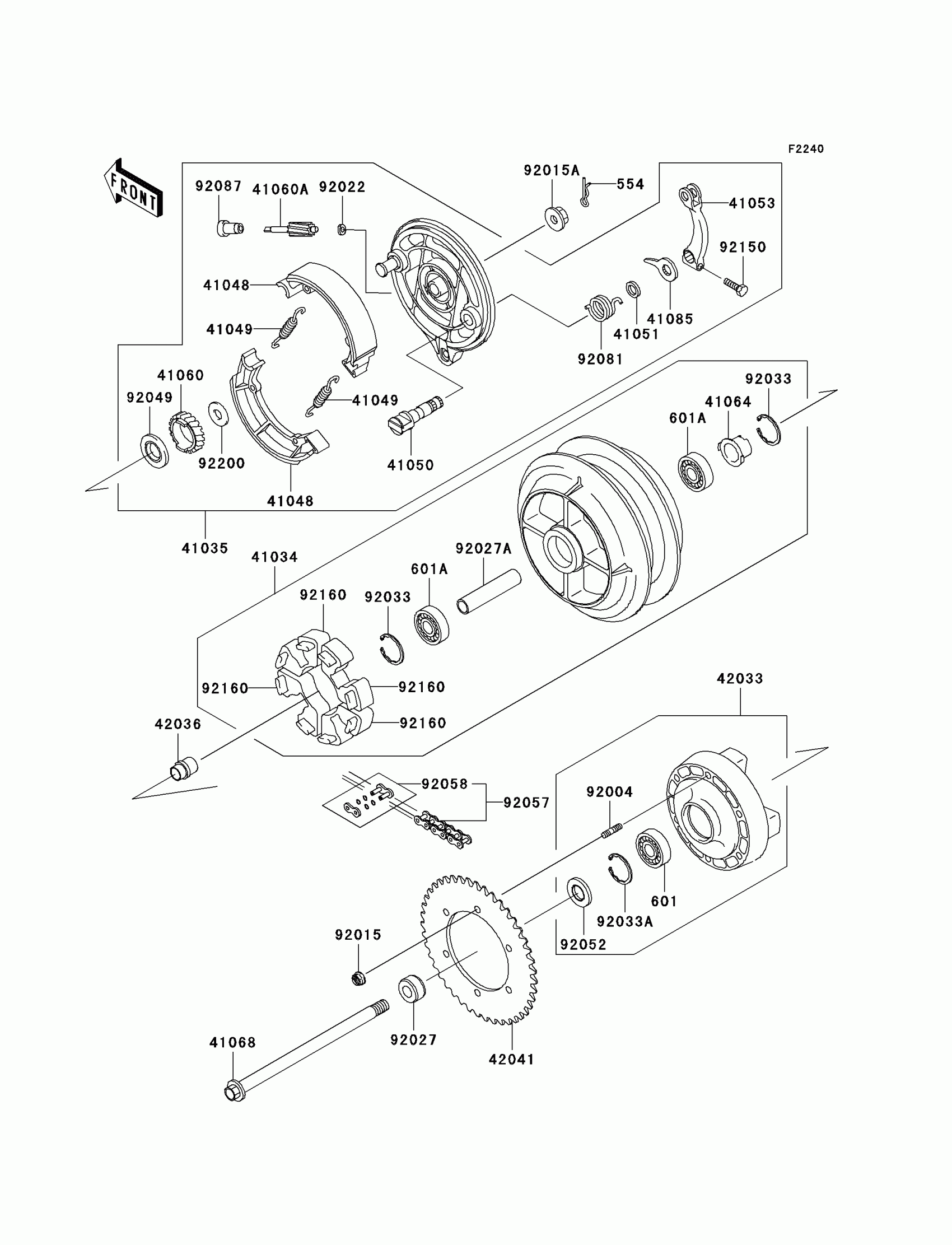

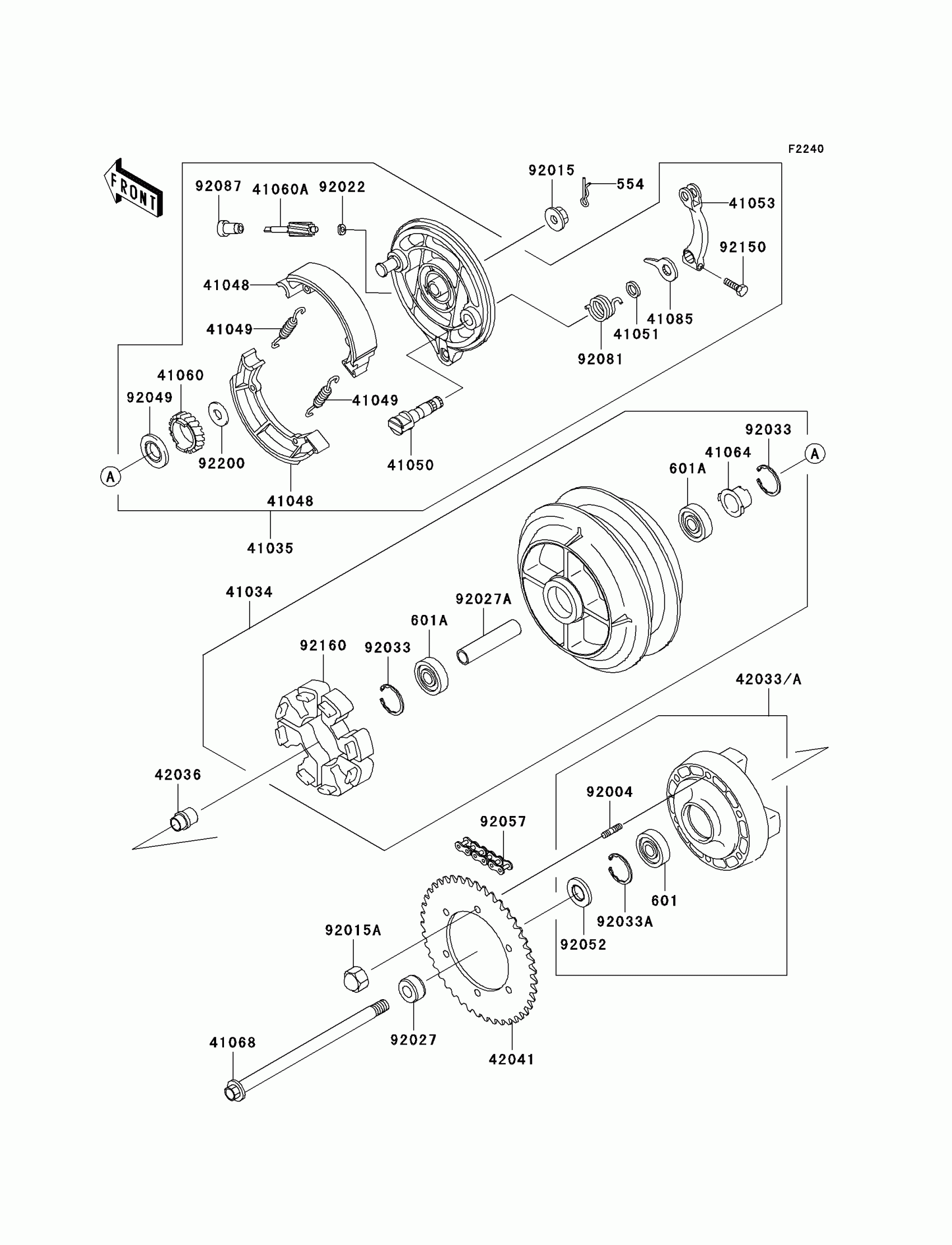

Kawasaki Vulcan 800 Classic Rear Wheel/Chain Diagram
