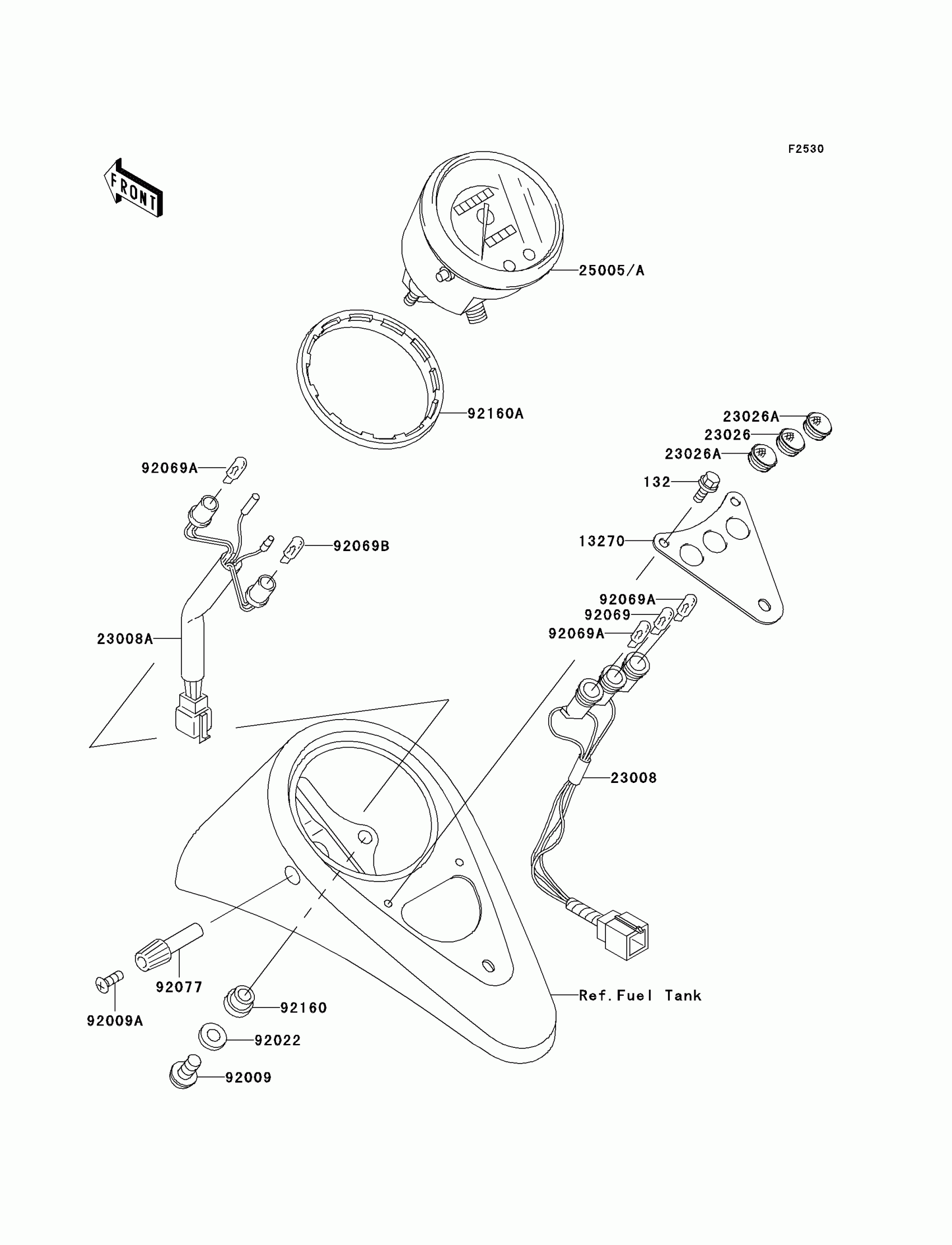

Kawasaki Vulcan 800 Classic Meter(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

13270

PLATE,PILOT LAMP

13270-1637

$35.47

23008

SOCKET-ASSY,PILOT LAMP

23008-1546

$38.87

23008A

SOCKET-ASSY,SPEEDOMETER

23008-1575

$72.80

23026

LENS,GREEN

23026-1171

$6.46

23026A

LENS,RED

23026-1173

$6.77

92009

SCREW,4X6

92009-1690

$3.91

92009A

SCREW,3X8

92009-1799

$3.91

92022

WASHER,4.3X12.5X1

92022-1949

$3.60

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 1.7W,T10

92069-1059

$4.96

92069B

BULB,14V 3W,T6.5

92069-1068

$5.00

92077

KNOB,TRIP

92077-1117

$33.16

92160

DAMPER

92160-1068

$7.55

92160A

DAMPER,SHOCK,METER

92160-1380

$8.19

25005

SPEEDOMETER,KPH

25005-1708

$508.57

25005A

SPEEDOMETER,MPH

25005-1725

$508.57
