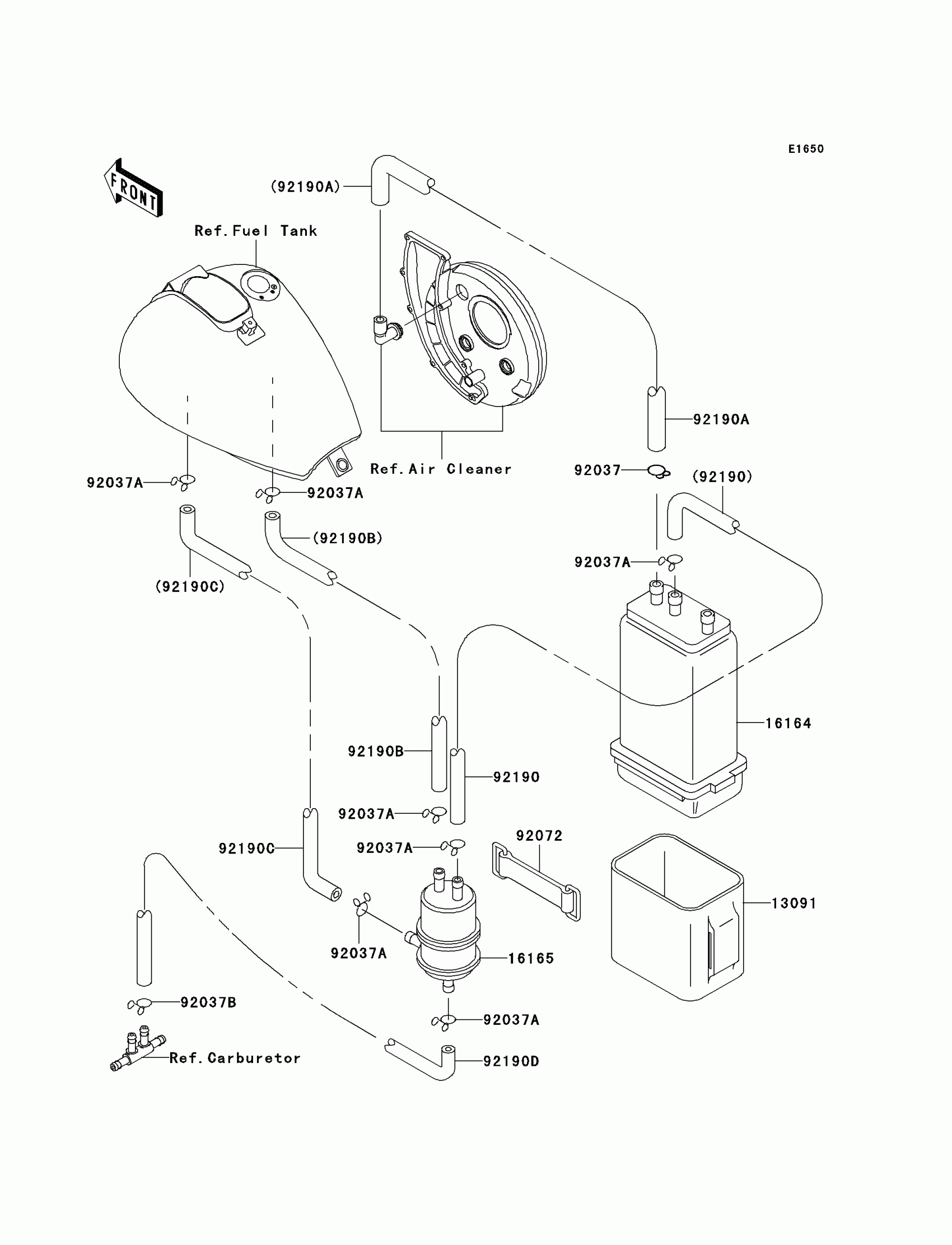

Kawasaki Vulcan 800 Classic Fuel Evaporative System Diagram

Description

Price

13091

HOLDER,CANISTER

13091-1308

$38.44

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP

92037-1610

$2.00

92072

BAND,L=50

92072-066

$16.08

92190

TUBE,CANISTER-SEPA

92190-1618

$11.25

92190A

TUBE,7X12X540,GREEN

92190-1619

$26.61

92190B

TUBE,SEPA-TANK

92190-1620

$40.06

92190C

TUBE,SEPA-TANK

92190-1621

$48.80

92190D

TUBE,SEPA-FITTING

92190-1622

$38.16
