2000 Kawasaki Vulcan 800 Classic Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

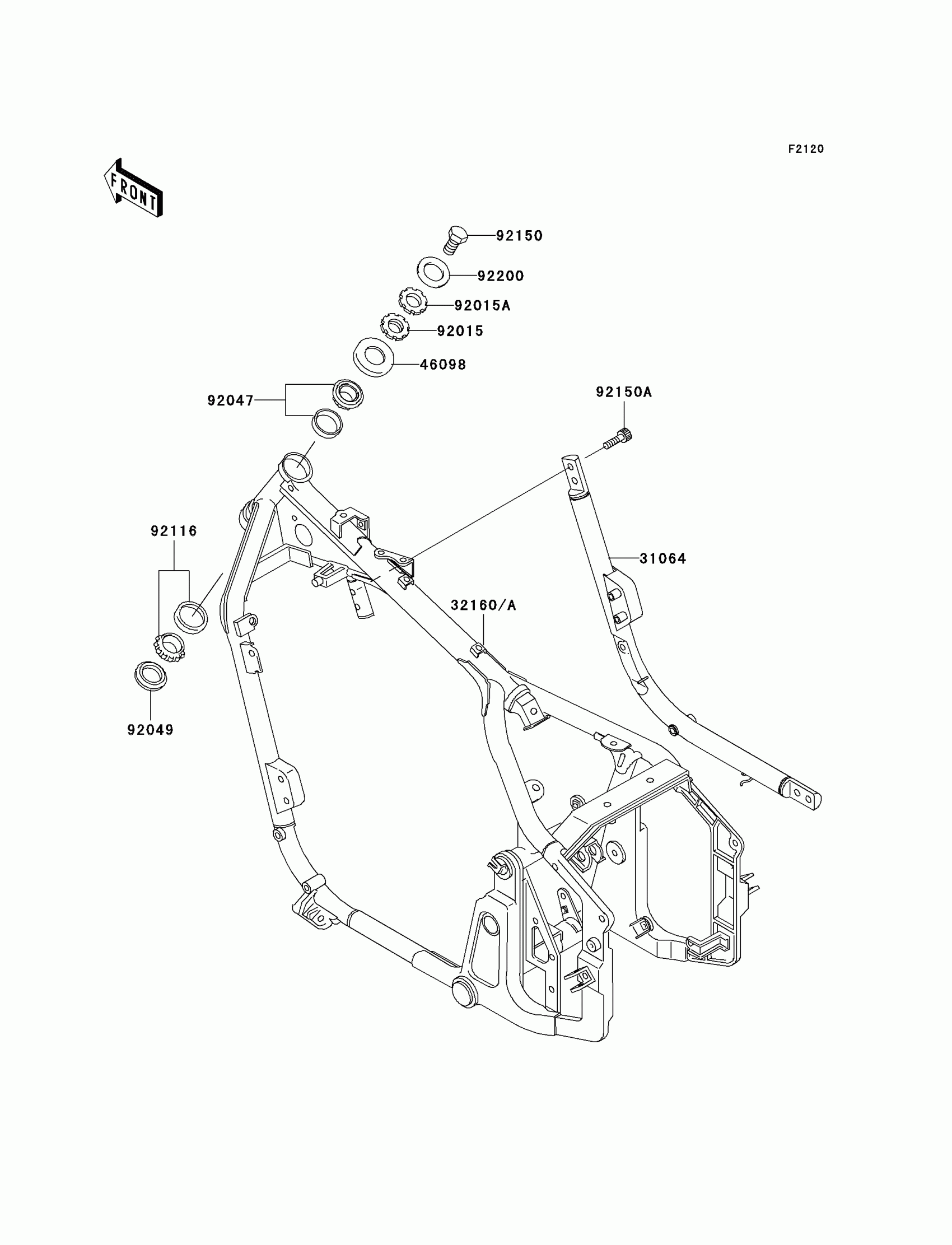

2000 Kawasaki Vulcan 800 Classic Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

1

$339.22

In stock

46098

CAP,STEERING STEM

46098-017

1

$5.37

In stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92047

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92116

1

$33.21

In stock

92150

BOLT,14X25

92150-1672

1

$13.51

In stock

92150A

BOLT,SOCKET,10X23

92150-1942

1

$5.84

In stock

92200

WASHER

92200-1140

1
Out of stock

32160

FRAME-COMP,FR

32160-1400

1
Out of stock

32160A

FRAME-COMP,FR

32160-1502

1

$1,333.63

In stock
← Footrests Frame Fittings →
