2000 Kawasaki Vulcan 800 Classic Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

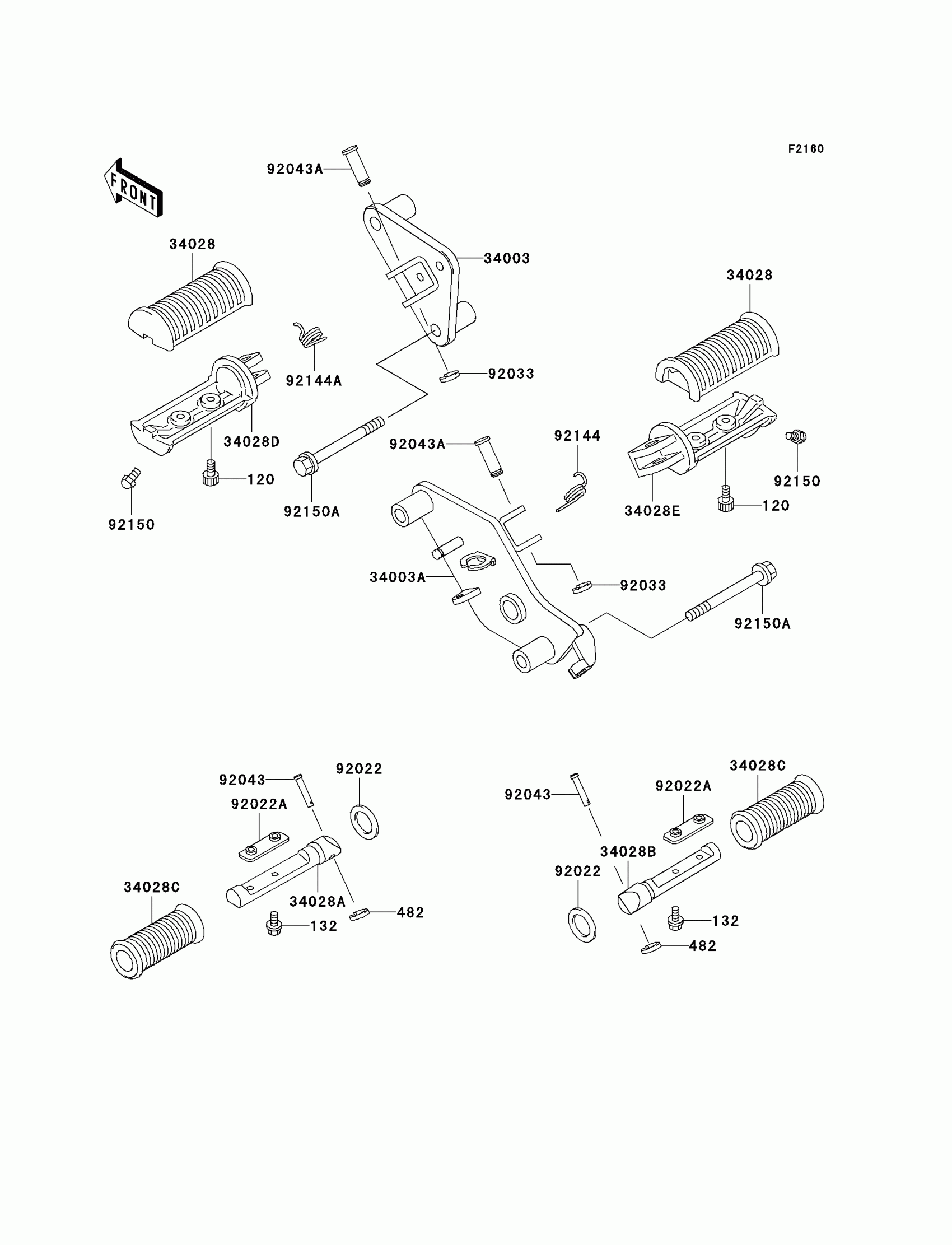

2000 Kawasaki Vulcan 800 Classic Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

132

BOLT-FLANGED-SMALL,5X10

132J0510

1
Out of stock

482

CIRCLIP-TYPE-E

482L7000

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1413

1
Out of stock

34003A

HOLDER-STEP,FR,RH

34003-1414

1
Out of stock

34028

STEP,FR,RUBBER

34028-1217

1

$23.19

In stock

34028A

STEP,RR,LH

34028-1219

1
Out of stock

34028B

STEP,RR,RH

34028-1220

1

$49.59

In stock

34028C

STEP,RR,RUBBER

34028-1221

1
Out of stock

34028D

STEP,FR,LH

34028-1407

1

$57.51

In stock

34028E

STEP,FR,RH

34028-1408

1

$57.51

In stock

92022

WASHER,20X30X2.3

92022-1568

1
Out of stock

92022A

WASHER,STEP

92022-1874

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,12X37

92043-1358

1
Out of stock

92144

SPRING,STEP RETURN

92144-1126

1
Out of stock

92144A

SPRING,STEP RETURN

92144-1210

1
Out of stock

92150

BOLT,BANK SENSOR

92150-1114

1
Out of stock

92150A

BOLT,FLANGED,10X55

92150-1897

1
Out of stock
