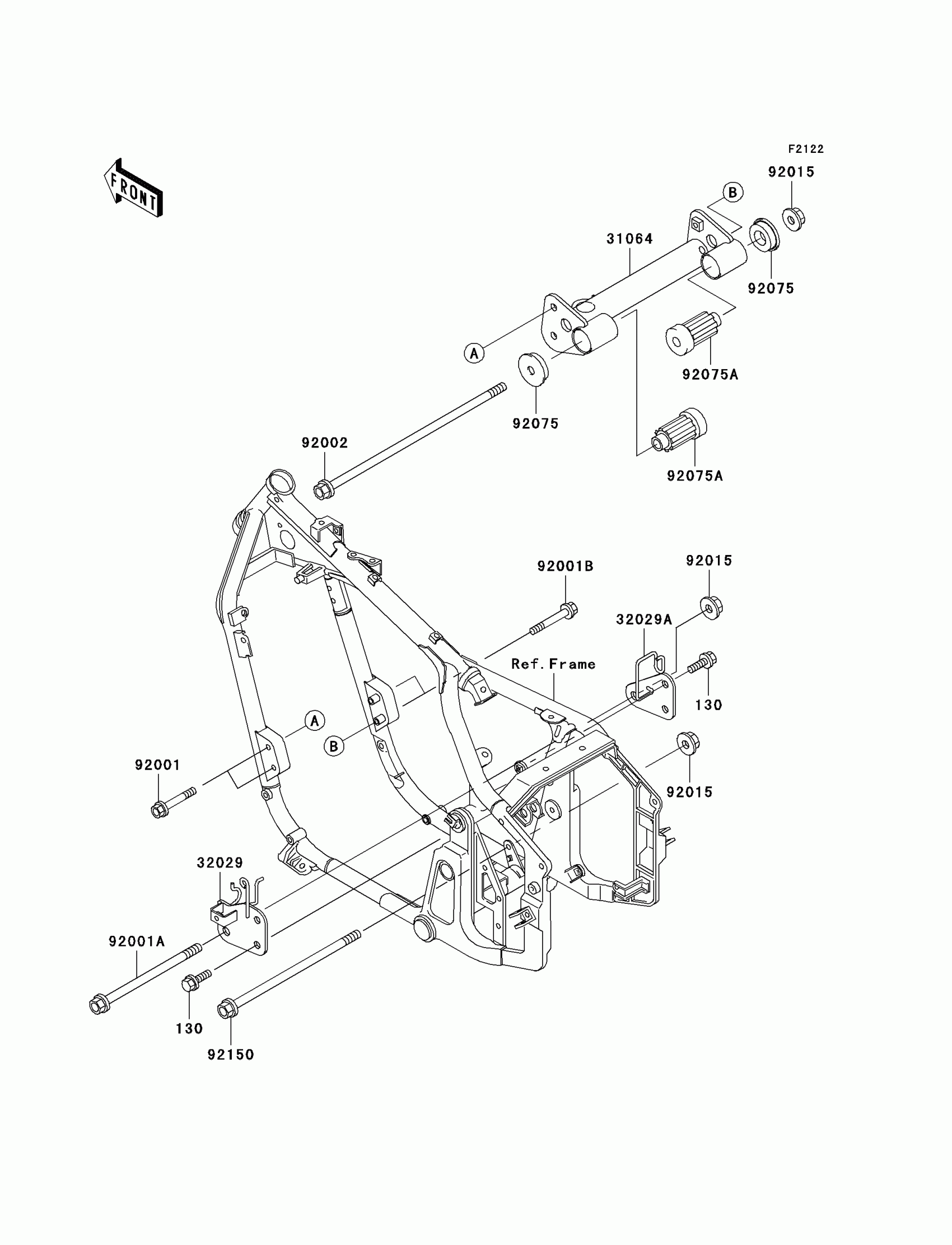

Kawasaki Vulcan 800 Classic Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130J0816

$1.66

31064

PIPE-COMP,ENGINE MOUNT,FR

31064-1175

$149.88

32029

BRACKET-ENGINE,RR,UPP,LH

32029-1947

$26.86

32029A

BRACKET-ENGINE,RR,UPP,RH

32029-1948

$24.84

92001

BOLT,FLANGED,8X50

92001-1614

$6.16

92001A

BOLT,FLANGED,10X155,BLACK

92001-1620

$24.03

92001B

BOLT,FLANGED,8X55,BLACK

92001-1641

$7.22

92002

BOLT,FLANGED,10X285

92002-1206

$22.70

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92075

DAMPER,ENGINE MOUNT

92075-1738

$23.47

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92150

BOLT,FLANGED,10X205

92150-1899

$18.23
