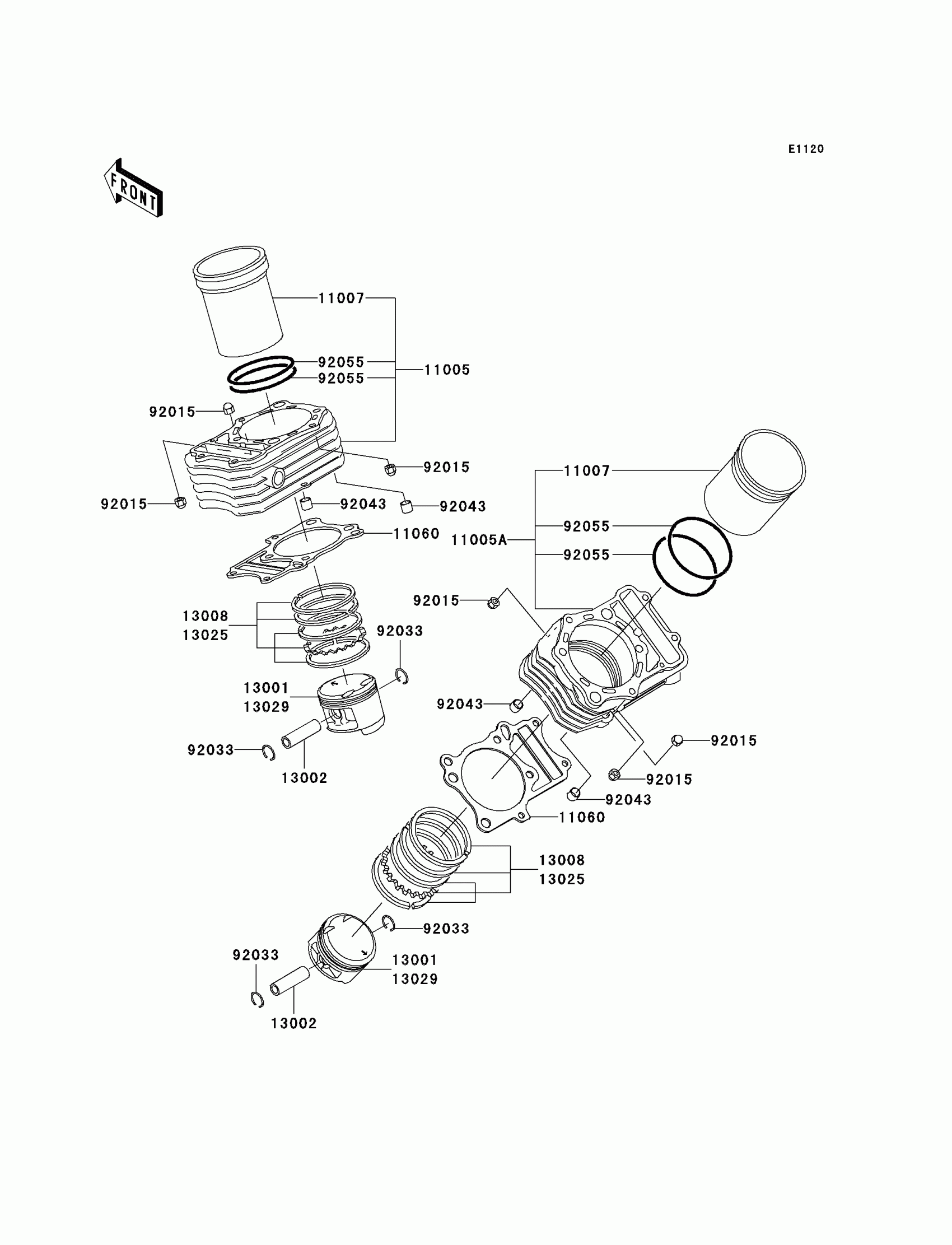

Kawasaki Vulcan 800 Classic Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,FR

11005-1768

$931.63

11005A

CYLINDER-ENGINE,RR

11005-1770

$931.63

11007

LINER-CYLINDER

11007-1134

$158.14

11060

GASKET,CYLINDER BASE

11060-1678

$14.14

13001

PISTON-ENGINE,STD

13001-1434

$140.43

13002

PIN-PISTON

13002-1056

$28.79

13008

RING-SET-PISTON,STD

13008-1164

$89.94

13025

RING-SET-PISTON L,O/S,0.50

13025-1127

$89.94

13029

PISTON-ENGINE L,O/S,0.50

13029-1228

$140.43

92015

NUT,CAP,8MM

92015-1370

Unavailable

92033

RING-SNAP

92033-1188

$3.89

92043

PIN,11X14X12.3

92043-1266

$1.08

92055

RING-O,95.3X2.5

92055-1535

$5.52
