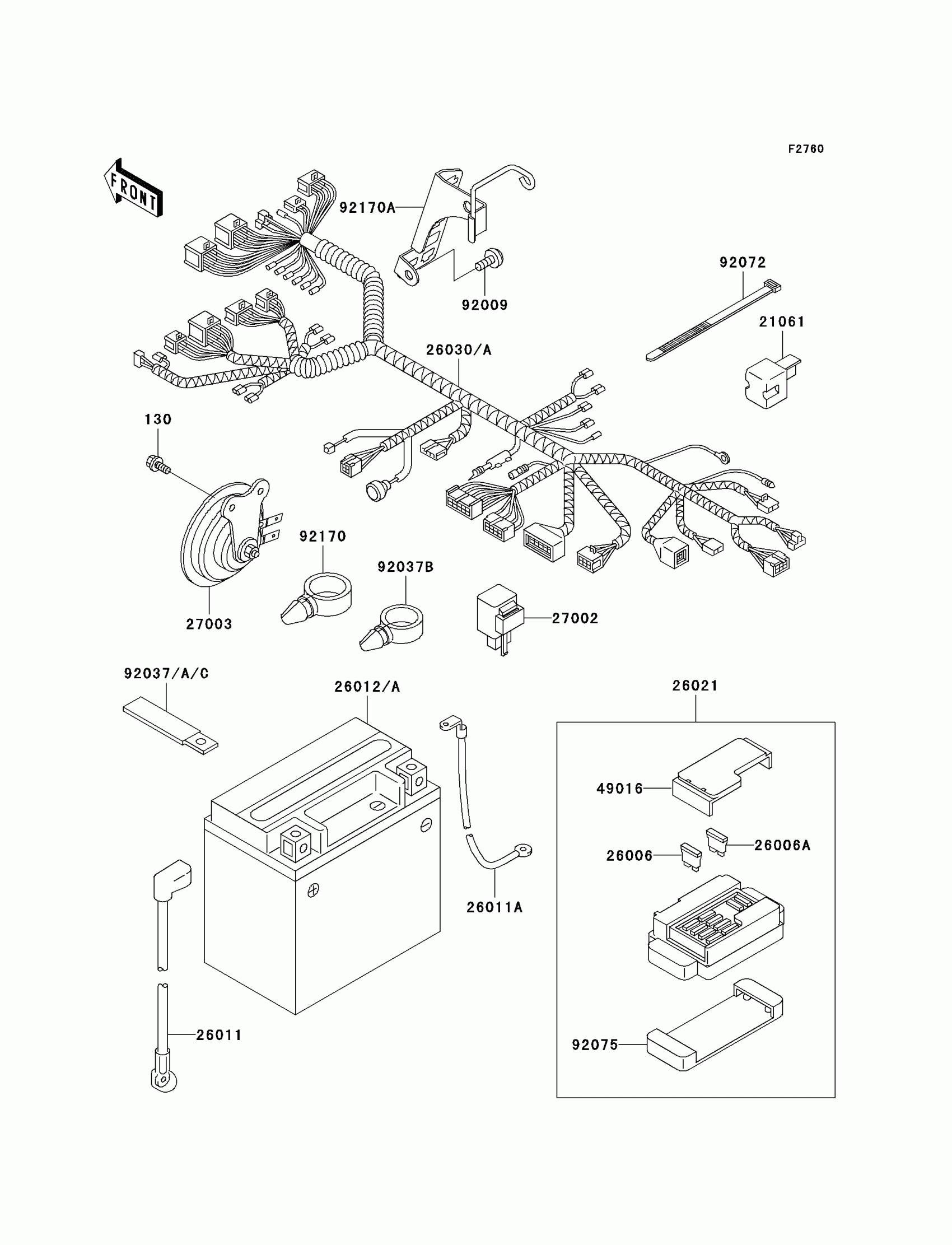

Kawasaki Vulcan 800 Classic Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

21061

RECTIFIER

21061-1003

$29.60

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1621

$38.20

26011A

WIRE-LEAD,BATTERY(-)

26011-1633

$30.83

26021

JUNCTION BOX

26021-1089

Unavailable

26030

HARNESS,MAIN

26030-1739

$389.19

27002

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN,350HZ,LH

27003-1239

$83.85

49016

COVER-SEAL,FUSE

49016-1177

$9.54

92009

SCREW,6X14

92009-1662

$3.92

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,L=45

92037-1539

$5.00

92037B

CLAMP,HOSE

92037-1827

$7.45

92037C

CLAMP

92037-1993

$5.52

92072

BAND,L=365

92072-1197

$7.84

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

92160

DAMPER,BATTERY

92160-1635

$28.40

92170

CLAMP

92170-1067

$7.45

92170A

CLAMP,HARNESS

92170-1570

$25.59

26012

BATTERY,YTX12-BS,12V 10AH

26012-0049

$79.52

26012A

BATTERY,YTX12-BS,12V 10AH

26012-1330

$119.64
