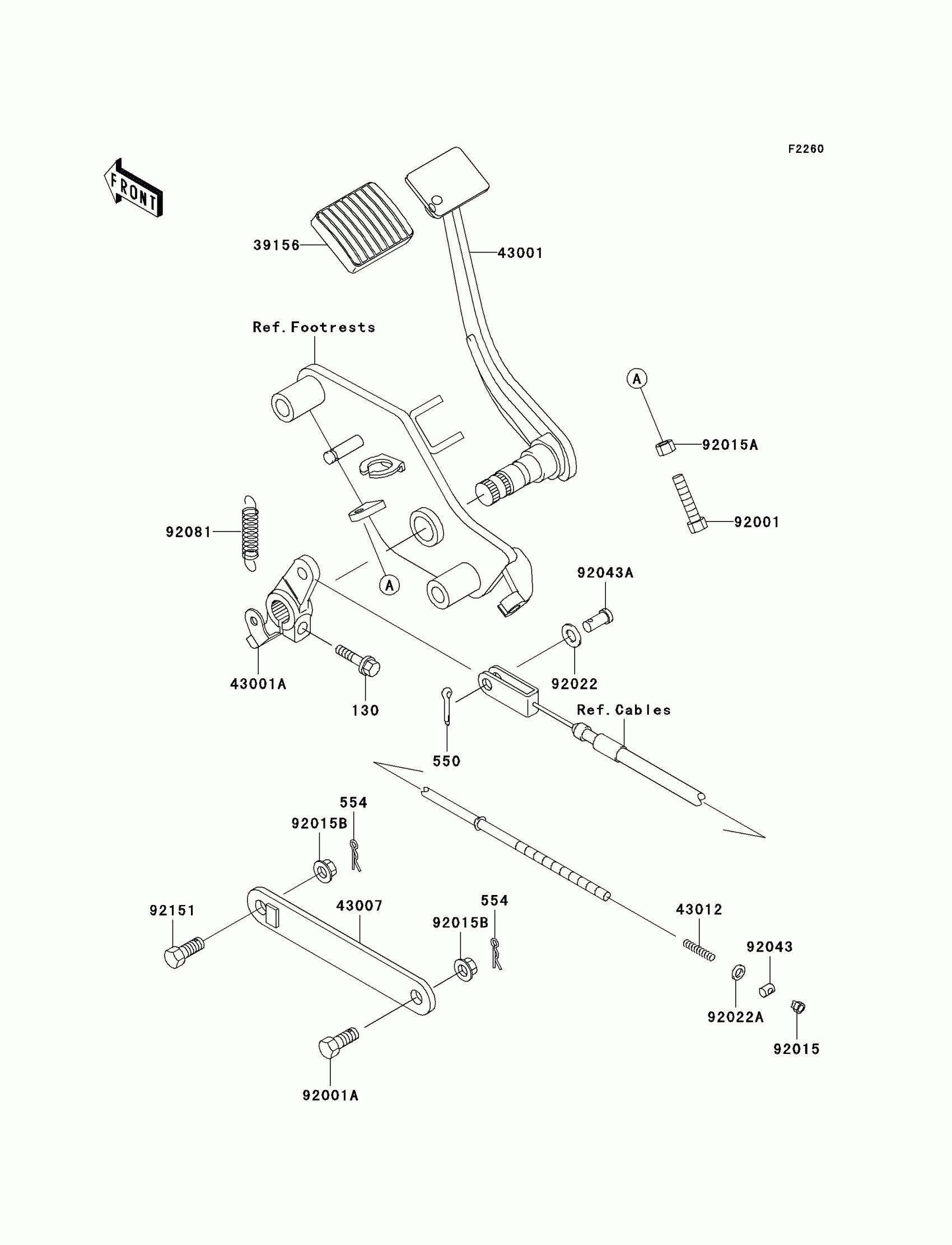

Kawasaki Vulcan 800 Classic Brake Pedal/Torque Link Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

39156

PAD,BRAKE PEDAL

39156-1071

$8.97

43001

LEVER-BRAKE,PEDAL

43001-1222

$129.54

43001A

LEVER-BRAKE

43001-1356

$44.61

43007

ROD-TORQUE

43007-1179

$18.69

43012

SPRING,BRAKE ROD

43012-001

$3.54

92001

BOLT,6X25

92001-1090

Unavailable

92001A

BOLT,10X37

92001-1519

$7.49

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,6MM

92015-1391

$1.77

92015B

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92022A

WASHER,6.3X10.2X1.6

92022-1588

$3.53

92043

PIN,BRAKE ROD

92043-065

$4.23

92043A

PIN,8X16

92043-1013

$7.54

92081

SPRING,BRAKE PEDAL

92081-1845

Unavailable

92151

BOLT,10X25

92151-1125

$5.37
