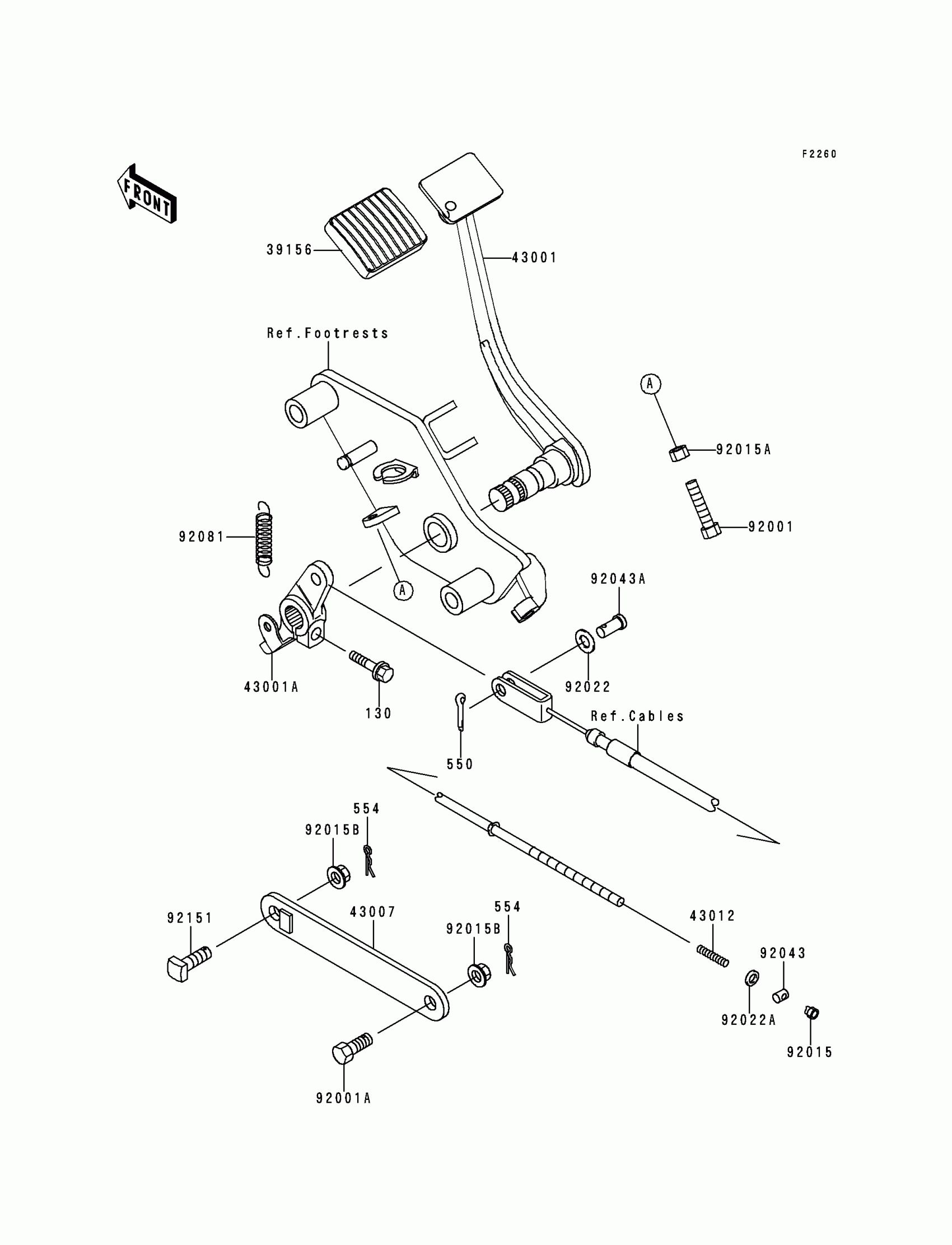

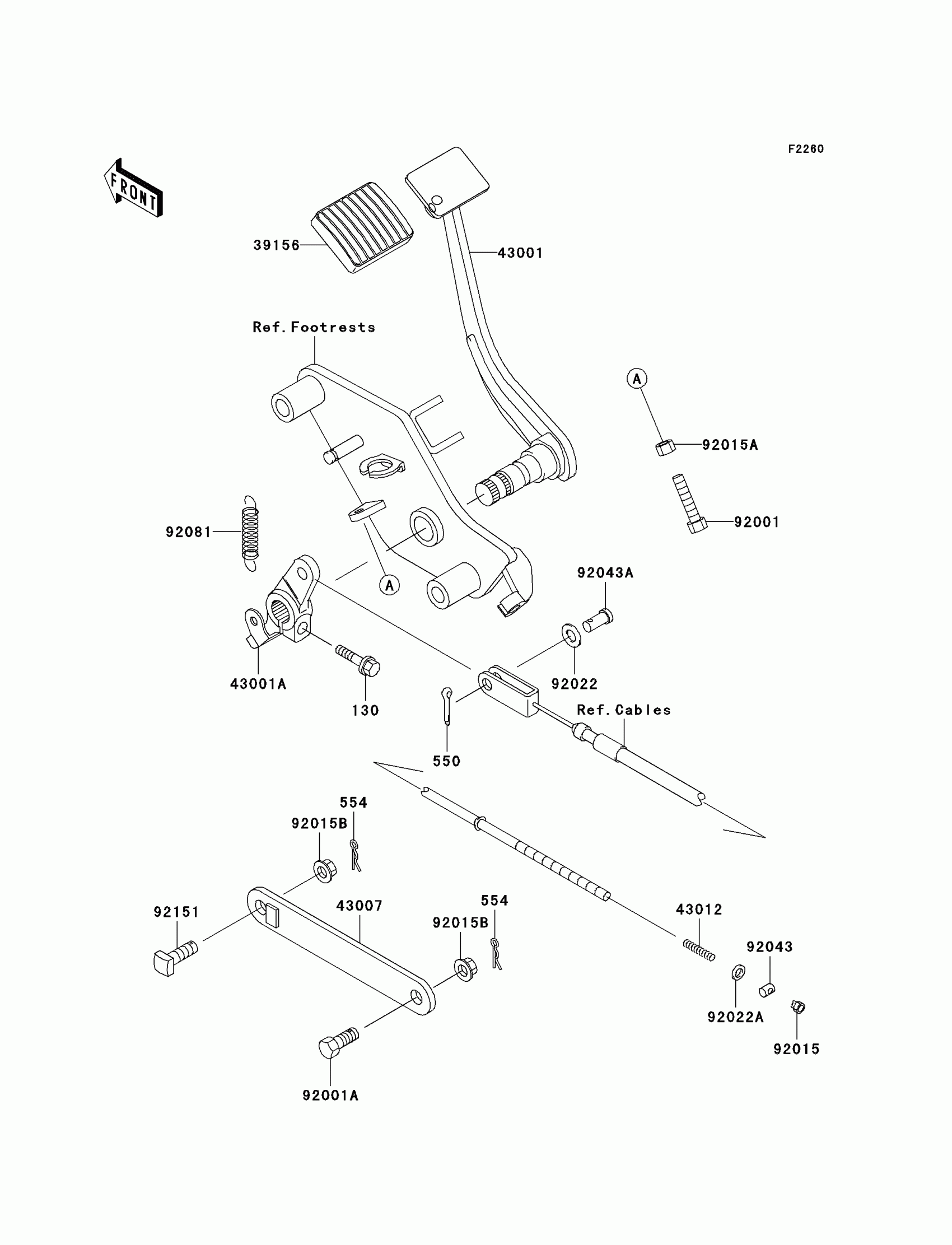

Kawasaki Vulcan 800 Brake Pedal/Torque Link Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

$4.15

550

PIN COTTER 2.0X15

550D2015

$1.04

554

PIN-SNAP,8MM

554A0800

$1.26

39156

PAD,BRAKE PEDAL

39156-1071

$11.80

43001

LEVER-BRAKE,PEDAL

43001-1222

$126.89

43001A

LEVER-BRAKE

43001-1356

$43.77

43007

ROD-TORQUE

43007-1179

$20.04

43012

SPRING,BRAKE ROD

43012-001

$4.65

92001

BOLT,6X25

92001-1090

$4.11

92001A

BOLT,10X37

92001-1519

$7.62

92015

NUT,BRAKE ROD

92015-042

$6.22

92015A

NUT,6MM

92015-1391

$2.49

92015B

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92022A

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92043

PIN,BRAKE ROD

92043-065

$5.57

92043A

PIN,8X16

92043-1013

$9.91

92081

SPRING,BRAKE PEDAL

92081-1845

$9.38

92151

BOLT,10X25

92151-1125

$6.15
