Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,8X20

130J0820

$0.83

132

BOLT-FLANGED-SMALL,8X35

132E0835

$5.52

11012

CAP

11012-1926

$11.80

11049

BRACKET,SIDE COVER LOCK

11049-1183

$17.10

11049A

BRACKET,RESERVOIR TANK

11049-1233

$11.30

11049B

BRACKET,TOOL CASE LOCK

11049-1266

$5.13

11049C

BRACKET,CHOCK CABLE

11049-1284

Unavailable

27012

HOOK,SEAT

27012-1495

$33.67

32098

CASE-TOOL

32098-1106

$93.83

32099A

CASE

32099-1164

$19.99

35011

STAY,LH

35011-1725

$206.57

35011A

STAY,RH

35011-1726

$206.57

35011B

STAY,MUFFLER

35011-1727

$51.49

53044

TRIM,L=20

53044-1292

$3.13

92009

SCREW,6X10

92009-1402

$2.41

92009A

SCREW,TAPPING,5X14

92009-1635

$2.80

92009B

SCREW,5X14

92009-1653

$3.96

92022

WASHER

92022-1823

$7.36

92066

PLUG

92066-1277

$6.51

92066A

PLUG

92066-1434

$11.38

92072

BAND,BATTERY

92072-1320

$38.20

92150

BOLT,SOCKET,10X30

92150-1517

$9.21

92150A

BOLT,FLANGED,6X14

92150-1689

$3.94

92150B

BOLT,HOOK

92150-1947

$17.78

92160

DAMPER,BATTERY BAND

92160-1634

$37.47

92170

CLAMP,HARNESS

92170-1605

$12.40

92170A

CLAMP,CABLE

92170-1608

$9.02

92170B

CLAMP,HARNESS&CABLE

92170-1622

$13.00

92191

TUBE,6X10X80

92191-1009

$4.72

32099

CASE,BASE

32099-1163

$52.96

32099B

CASE,BASE

32099-1167

$52.96

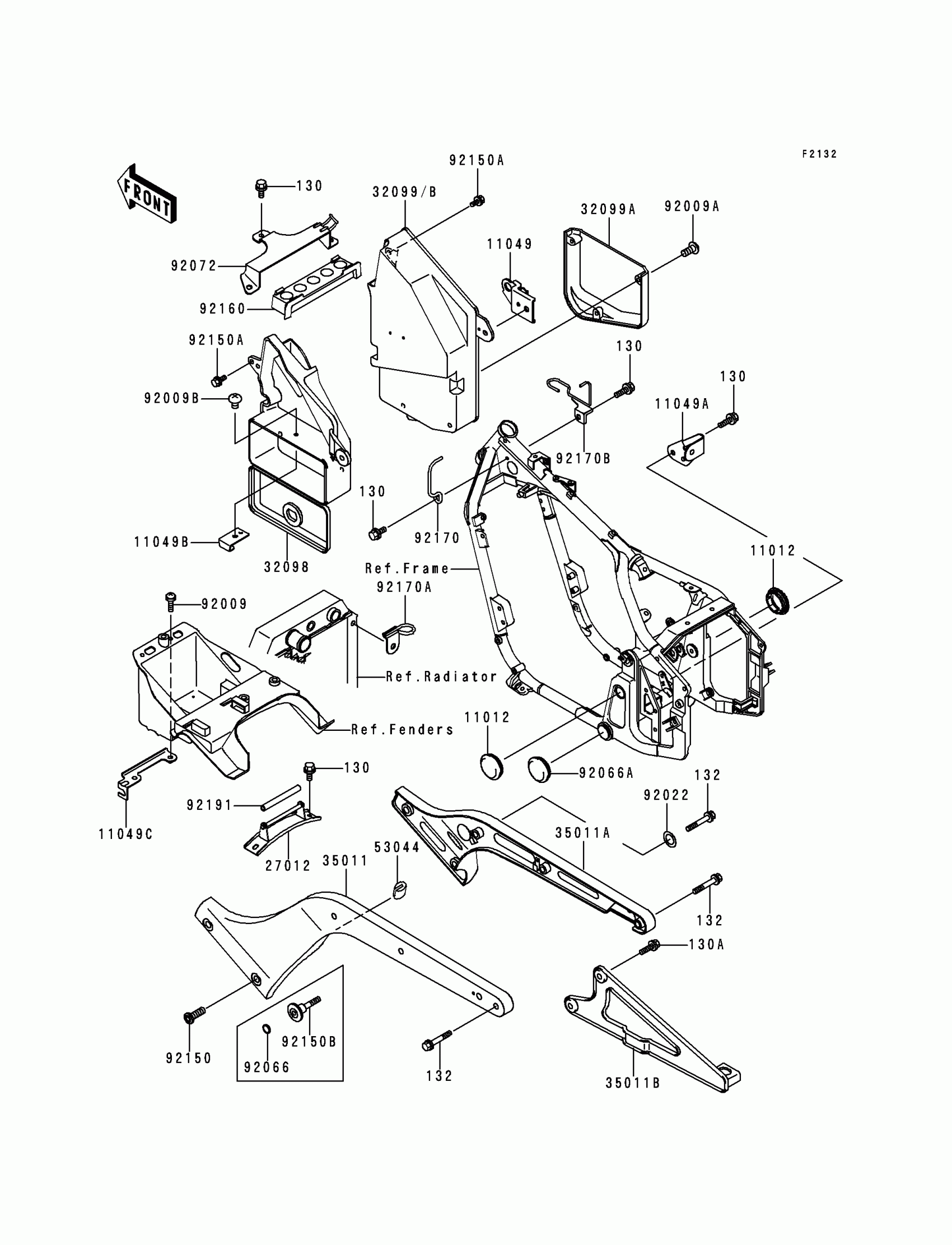

Kawasaki Vulcan 800 Battery Case Diagram

BOLT-FLANGED,6X12

BOLT-FLANGED,8X20

BOLT-FLANGED-SMALL,8X35

CAP

BRACKET,SIDE COVER LOCK

BRACKET,RESERVOIR TANK

BRACKET,TOOL CASE LOCK

BRACKET,CHOCK CABLE

HOOK,SEAT

CASE-TOOL

CASE

STAY,LH

STAY,RH

STAY,MUFFLER

TRIM,L=20

SCREW,6X10

SCREW,TAPPING,5X14

SCREW,5X14

WASHER

PLUG

PLUG

BAND,BATTERY

BOLT,SOCKET,10X30

BOLT,FLANGED,6X14

BOLT,HOOK

DAMPER,BATTERY BAND

CLAMP,HARNESS

CLAMP,CABLE

CLAMP,HARNESS&CABLE

TUBE,6X10X80

CASE,BASE

CASE,BASE
