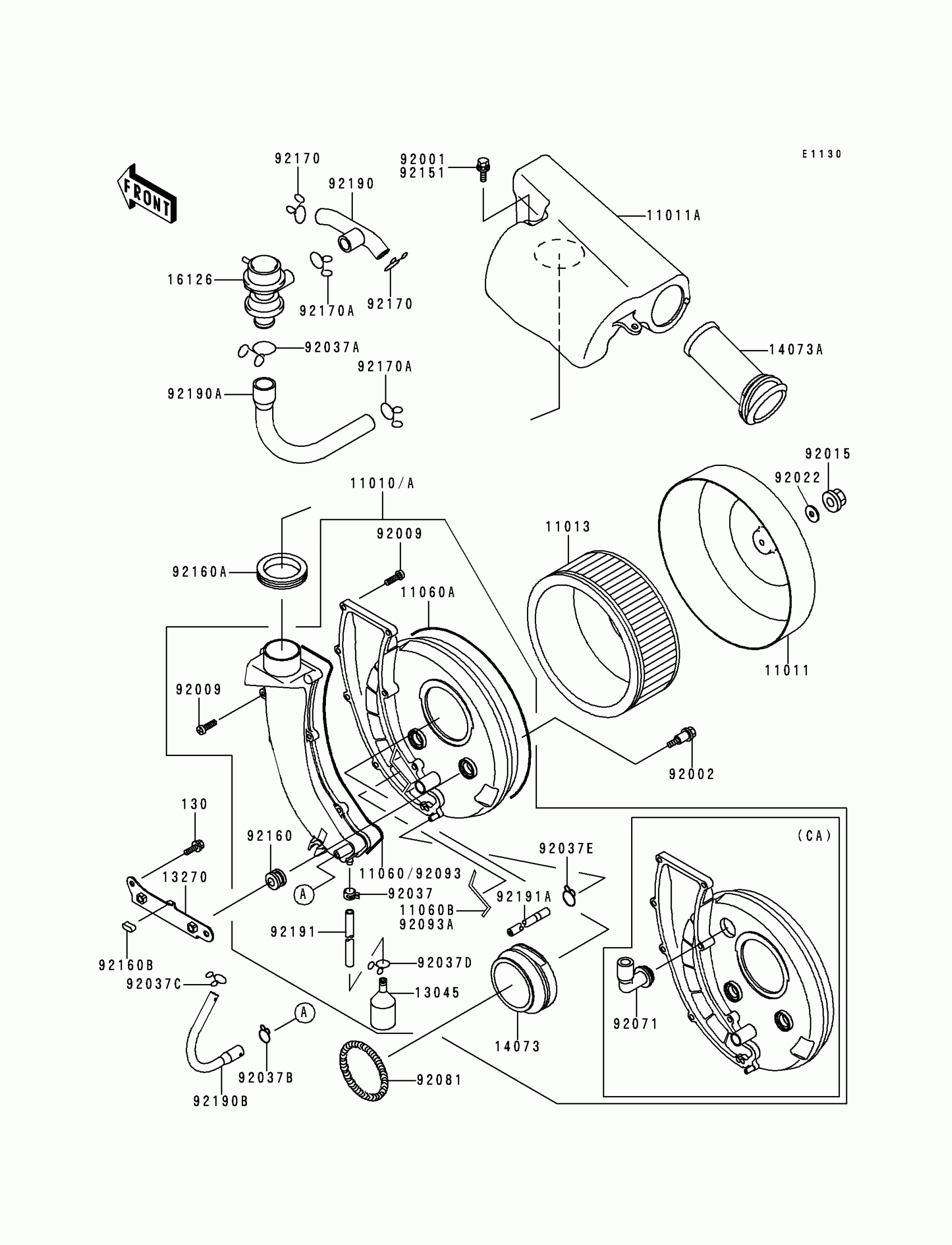

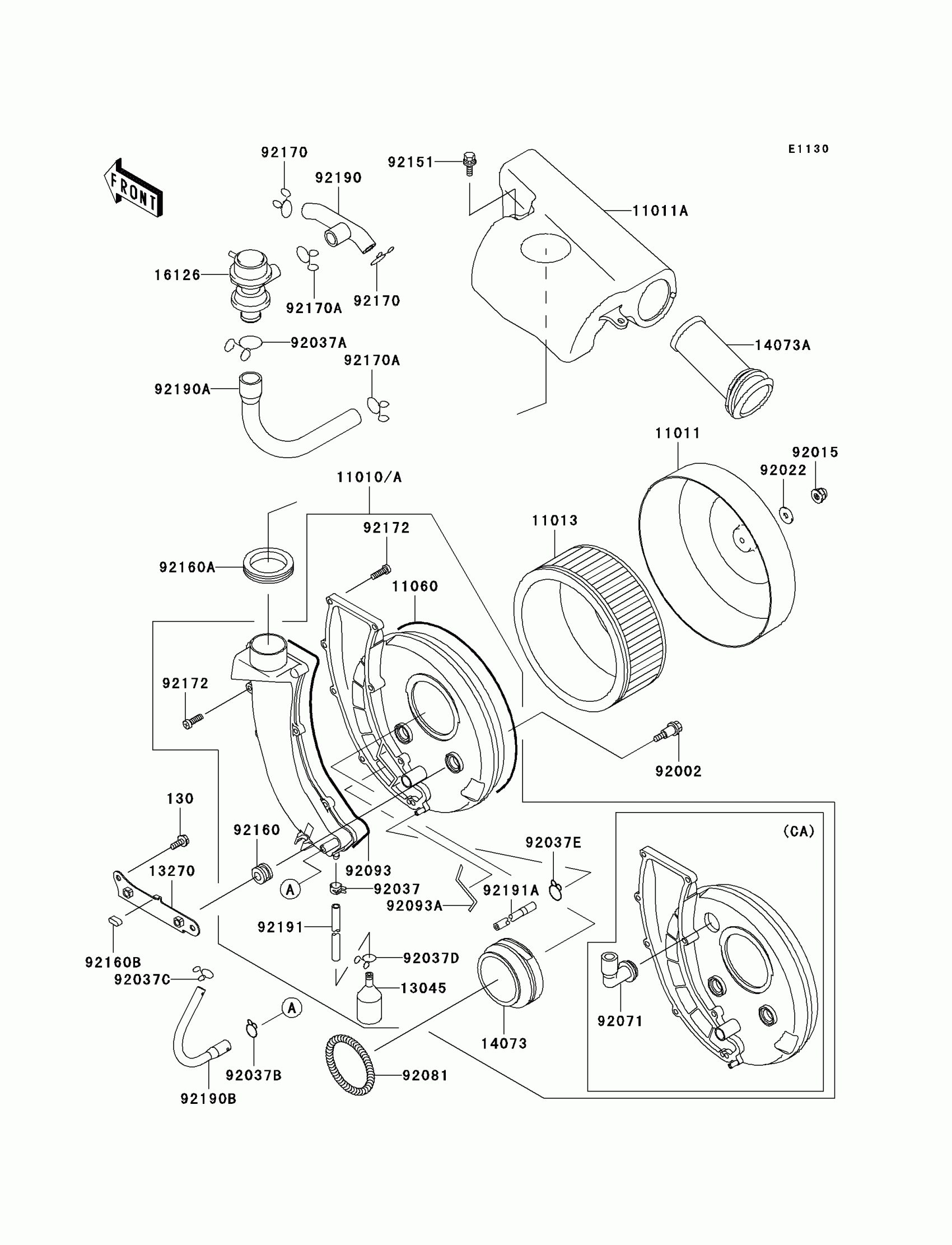

Kawasaki Vulcan 800 Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,COVER

11011-1453

$92.35

11011A

CASE-AIR FILTER,CHAMBER

11011-1454

$122.28

11013

ELEMENT-AIR FILTER

11013-1243

$47.86

11060A

GASKET,AIR FILTER

11060-1721

$9.50

13045

RECEIVER-OIL

13045-1057

$9.82

13270

PLATE,AIR FILTER CASE

13270-1388

$15.89

14073

DUCT,AIR FILTER

14073-1622

$19.85

14073A

DUCT,AIR FILTER CHAMBER

14073-1623

$41.88

16126

VALVE,AIR SWITCH

16126-1289

$200.34

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$13.07

92009

SCREW,TAPPING,5X20

92009-1399

$2.80

92015

NUT,CAP,6MM

92015-1385

$4.31

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$5.33

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-1076

$7.22

92037B

CLAMP,12.5MM

92037-1271

$2.79

92037C

CLAMP,TUBE

92037-147

$7.34

92037D

CLAMP

92037-1712

$5.00

92037E

CLAMP,TUBE

92037-3025

$6.27

92081

SPRING,DUCT

92081-1638

$9.80

92093

SEAL,AIR FILTER

92093-1501

$6.29

92093A

SEAL,AIR FILTER

92093-1502

$6.89

92151

BOLT

92151-1579

$2.49

92160

DAMPER

92160-1594

$4.69

92160A

DAMPER

92160-1600

$7.62

92160B

DAMPER,PLATE

92160-1605

$3.74

92170

CLAMP

92170-1017

$4.69

92170A

CLAMP,TUBE

92170-1445

$4.92

92190

TUBE,AIR SWITCH-HEAD

92190-1600

$18.77

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

92190A

TUBE,AIR SWITCH-FILTER CASE

92190-1601

$20.79

92190B

TUBE,BREATHER

92190-1602

$11.80

92191

TUBE,6X9X345

92191-1111

$7.55

92191A

TUBE

92191-1112

$10.76

11010

FILTER-ASSY-AIR

11010-1597

Unavailable

11010A

FILTER-ASSY-AIR

11010-1598

Unavailable

92071

GROMMET,AIR FILTER

92071-1114

$24.61
