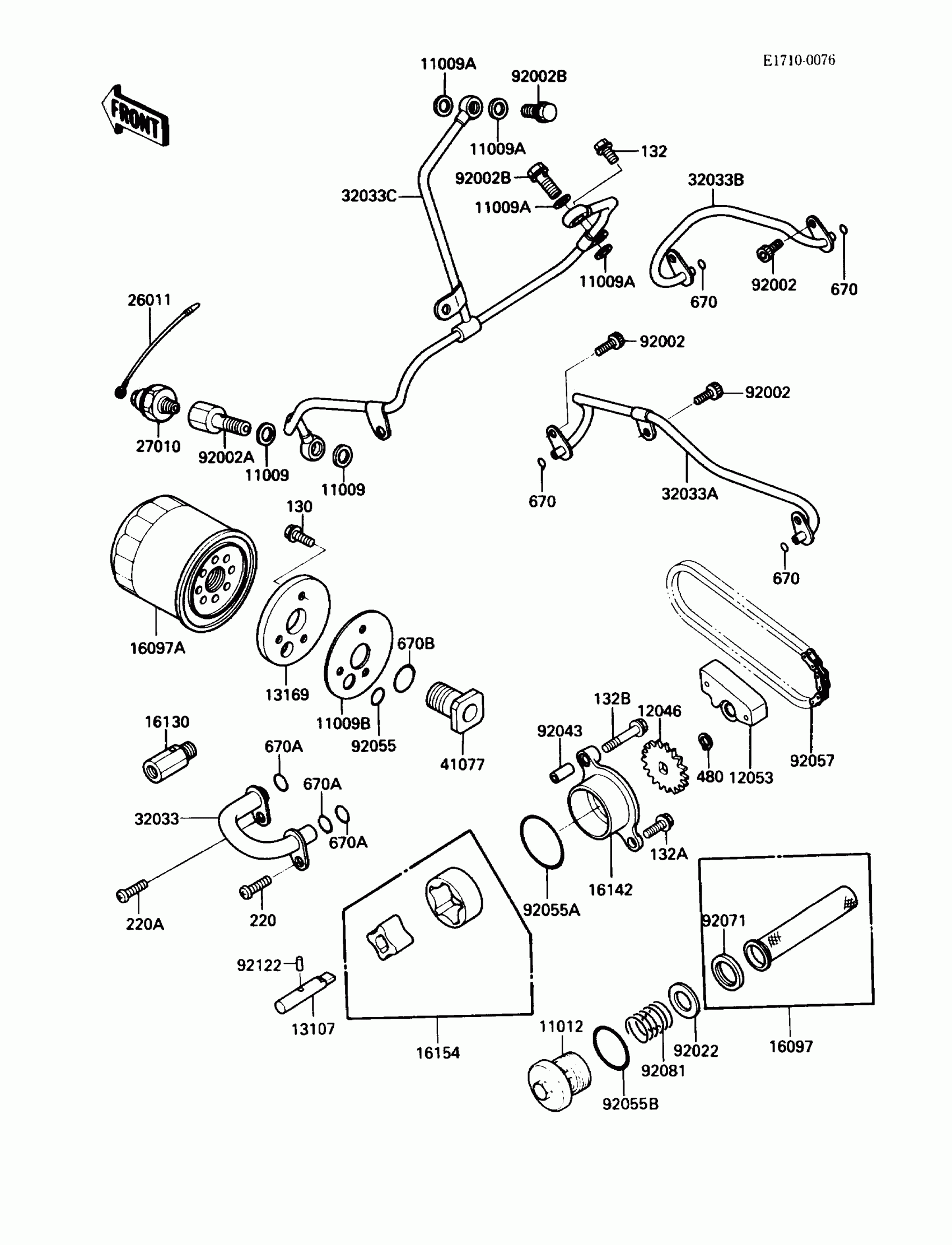

Kawasaki Vulcan 750 Oil Pump/Oil Filter Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$6.51

11009A

GASKET,8.2X14X1.0

11009-1344

$3.17

11009B

GASKET,OIL FILTER

11009-1509

Unavailable

11012

CAP,OIL FILTER

11012-1483

$45.98

12046

SPROCKET,OIL PUMP,19T

12046-1079

$18.83

12053

GUIDE-CHAIN

12053-1187

$25.48

13107

SHAFT,OIL PUMP

13107-1131

$33.23

13169

PLATE,OIL FILTER

13169-1921

Unavailable

16097

FILTER-ASSY-OIL

16097-1053

$14.37

16097A

FILTER-ASSY-OIL

16097-1054

$14.50

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP,OIL

16142-1061

$63.61

16154

ROTOR-PUMP,40.56X18

16154-1056

$67.73

26011

WIRE-LEAD

26011-1295

$7.24

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

32033

PIPE,OIL,PUMP-FILTER

32033-1479

$45.98

32033A

PIPE,OIL,FILTER-TRANSMISSION

32033-1741

$57.35

32033B

PIPE,OIL,FILTER-CRANKSHAFT

32033-1742

$39.98

32033C

PIPE,FILTER-HEAD

32033-1863

$159.02

41077

ADAPTER

41077-1052

$31.88

92002

BOLT,SOCKET,6X14

92002-1592

$4.31

92002A

BOLT,OIL SWITCH

92002-1617

$26.05

92002B

BOLT,BANJO,8X20

92002-1618

$10.56

92022

WASHER,16.5X28X0.5

92022-169

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,13X1.9

92055-1021

$7.62

92055A

RING-O,44.7X2.4

92055-1279

$7.34

92055B

RING-O,35.2X2.4

92055-1358

$7.34

92057

CHAIN,PUMP,BS25HX50L

92057-1183

$43.14

92071

GROMMET,OIL STRAINER

92071-100

$5.46

92081

SPRING,OIL FILTER

92081-1862

$12.96

92122

ROLLER,3X15.8

92122-1126

$3.92

130

BOLT-FLANGED,5X14

130P0514

$4.71

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

132A

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

132B

BOLT-FLANGED-SMALL,6X30

132G0630

$2.48

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

670

O RING,6MM

670D1506

$1.66

670A

O RING,12MM

670D2012

$2.77

670B

O RING,20MM

670D2020

$6.22
