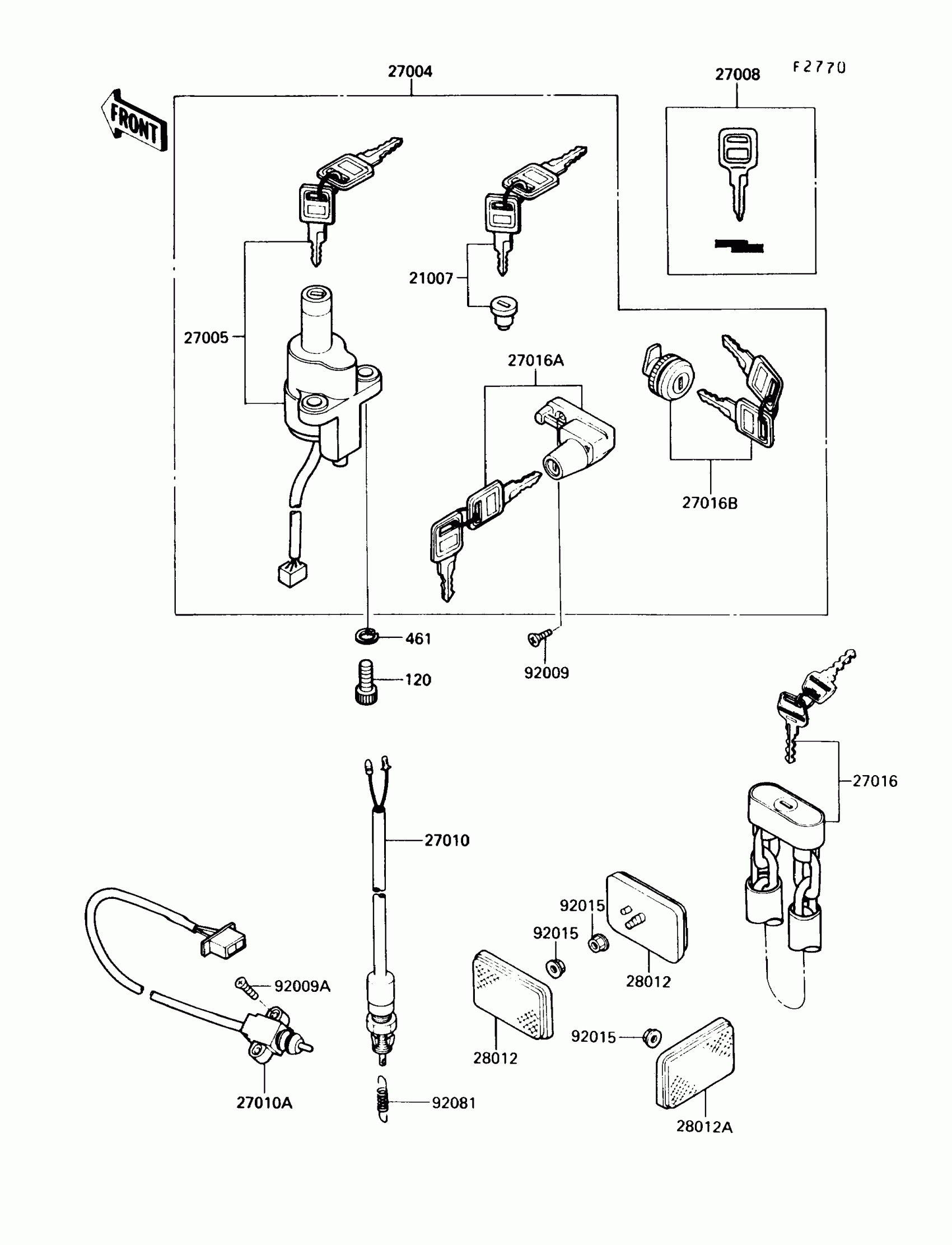

Kawasaki Vulcan 750 Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,8X22

120T0822

Unavailable

461

WASHER-SPRING

461L0800

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5005

$101.48

27004

SWITCH-ASSY

27004-5270

$392.25

27005

SWITCH-ASSY-IGNITION

27005-5052

$167.93

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE LAMP

27010-1181

$27.07

27010A

SWITCH,SIDE STAND

27010-1189

Unavailable

27016

LOCK-ASSY,WHEEL

27016-1051

$134.03

27016A

LOCK-ASSY,HELMET

27016-5060

$106.07

27016B

LOCK-ASSY,BOX

27016-5081

$106.07

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-1051

$24.63

92009

SCREW,5X18

92009-1305

$3.58

92009A

SCREW,5X20

92009-1359

$4.25

92015

NUT,FLANGED,5MM

92015-1259

$3.04

92081

SPRING

92081-1544

$5.32
