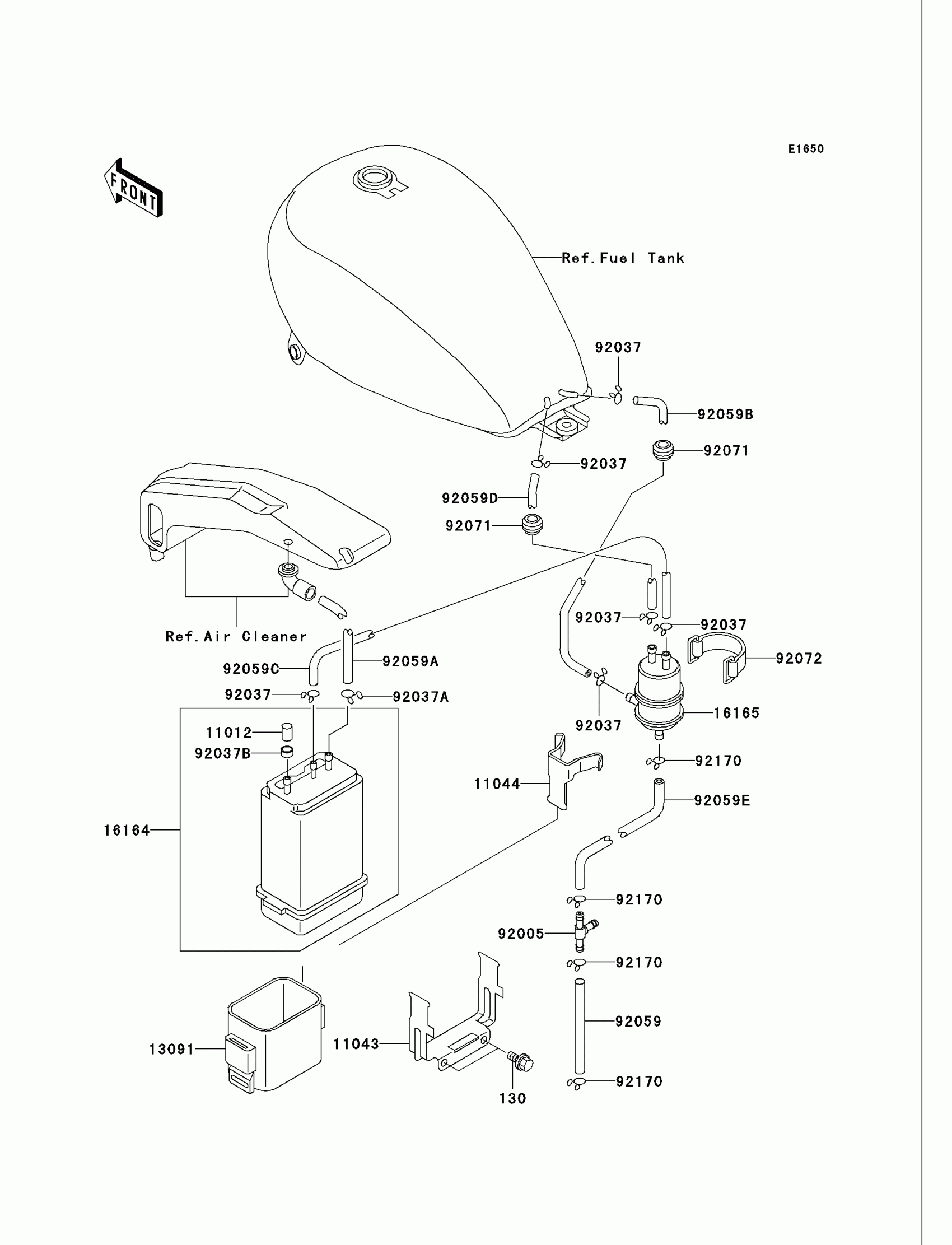

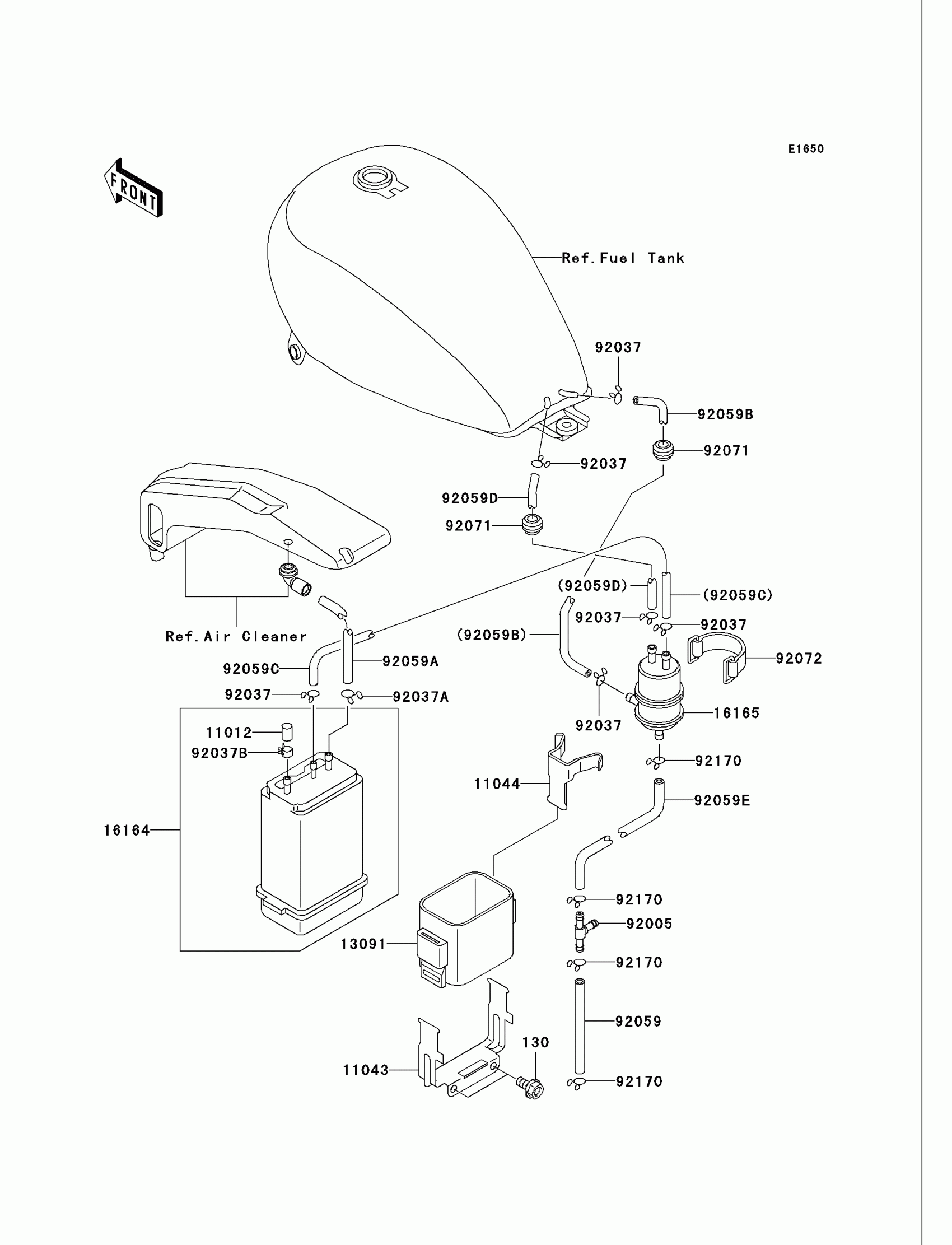

Kawasaki Vulcan 750 Fuel Evaporative System(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130C0612

$0.63

11012

CAP,CANISTER

11012-1388

$8.51

11043

BRACKET,CANISTER

11043-1168

$44.04

11044

BRACKET,CANISTER

11044-1056

$14.45

13091

HOLDER,CANISTER

13091-1343

$53.26

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,CANISTER

92037-1512

$6.57

92059

TUBE,4X9X110

92059-1131

Unavailable

92059A

TUBE,7X12X540,GREEN

92059-1415

$41.13

92059B

TUBE,5X8X470,RED

92059-1564

Unavailable

92059C

TUBE,5X8X230,BLUE

92059-1566

$14.32

92059D

TUBE,5X8X400,BLUE

92059-1567

Unavailable

92059E

TUBE,4X9X420,WHITE

92059-1568

$10.19

92071

GROMMET,10MM

92071-019

$3.89

92072

BAND,L=50

92072-1419

$16.08

92170

CLAMP

92170-1450

$6.34
