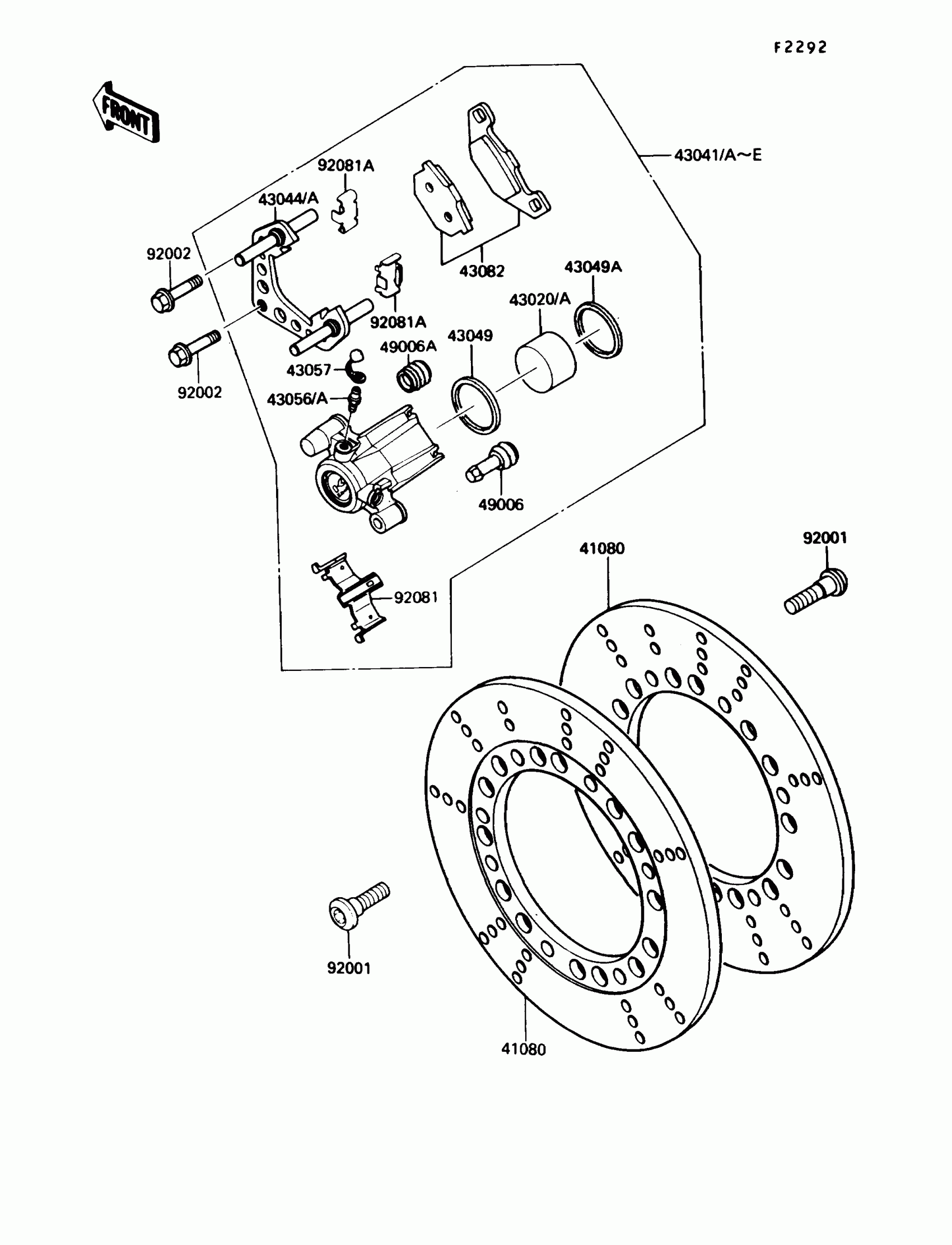

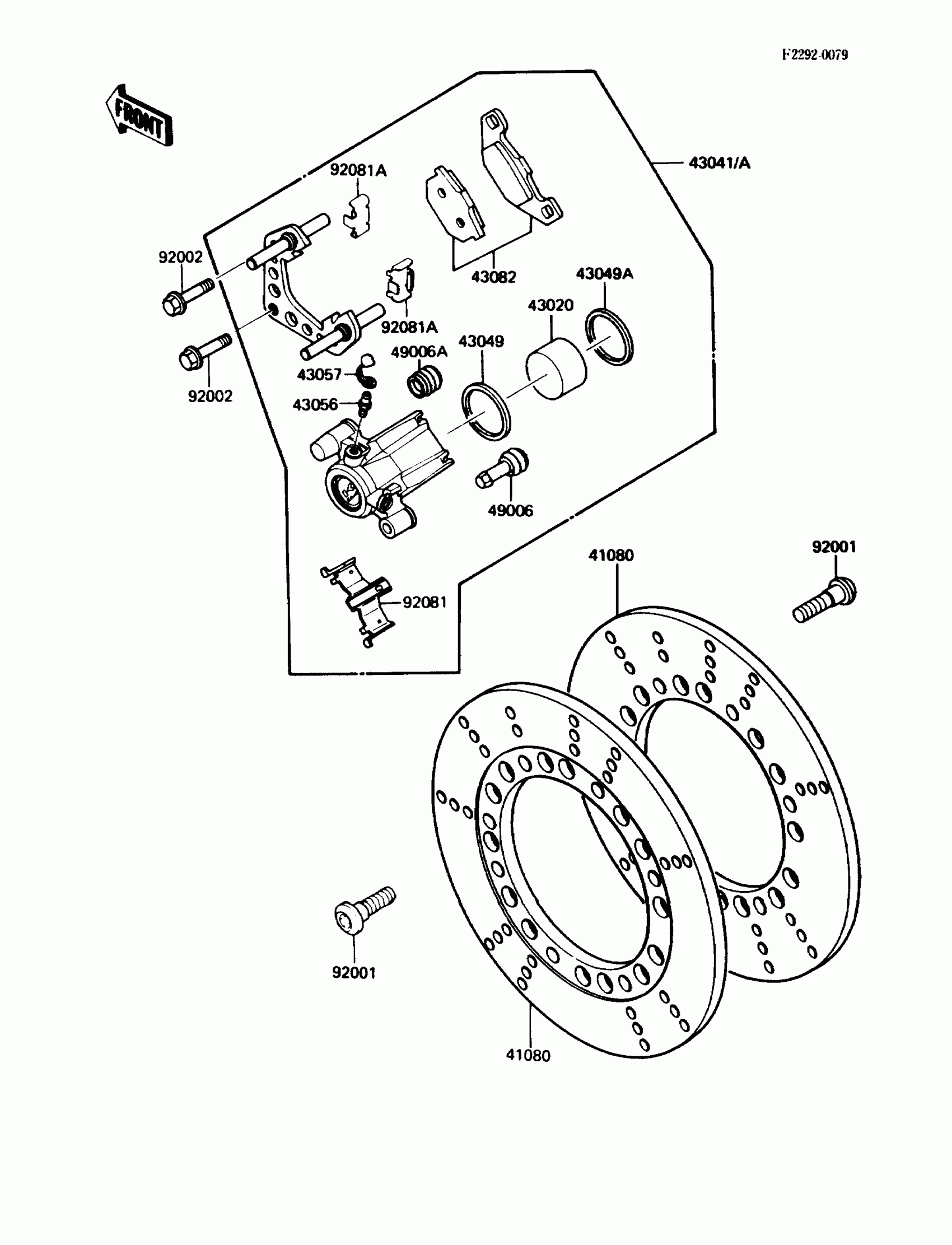

Kawasaki Vulcan 750 Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1130

$441.35

43020A

PISTON-COMP-BRAKE

43020-1066

$105.36

43041D

CALIPER-ASSY,FR,LH

43041-1469

$396.78

43041E

CALIPER-ASSY,FR,RH

43041-1470

$443.79

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1032

$171.32

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1033

$171.32

43049

PACKING,PISTON SEAL

43049-002

$13.90

43049A

PACKING,PISTON

43049-1028

$12.65

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1062

$61.15

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92002

BOLT,FLANGED,10X41

92002-1468

$8.86

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80
