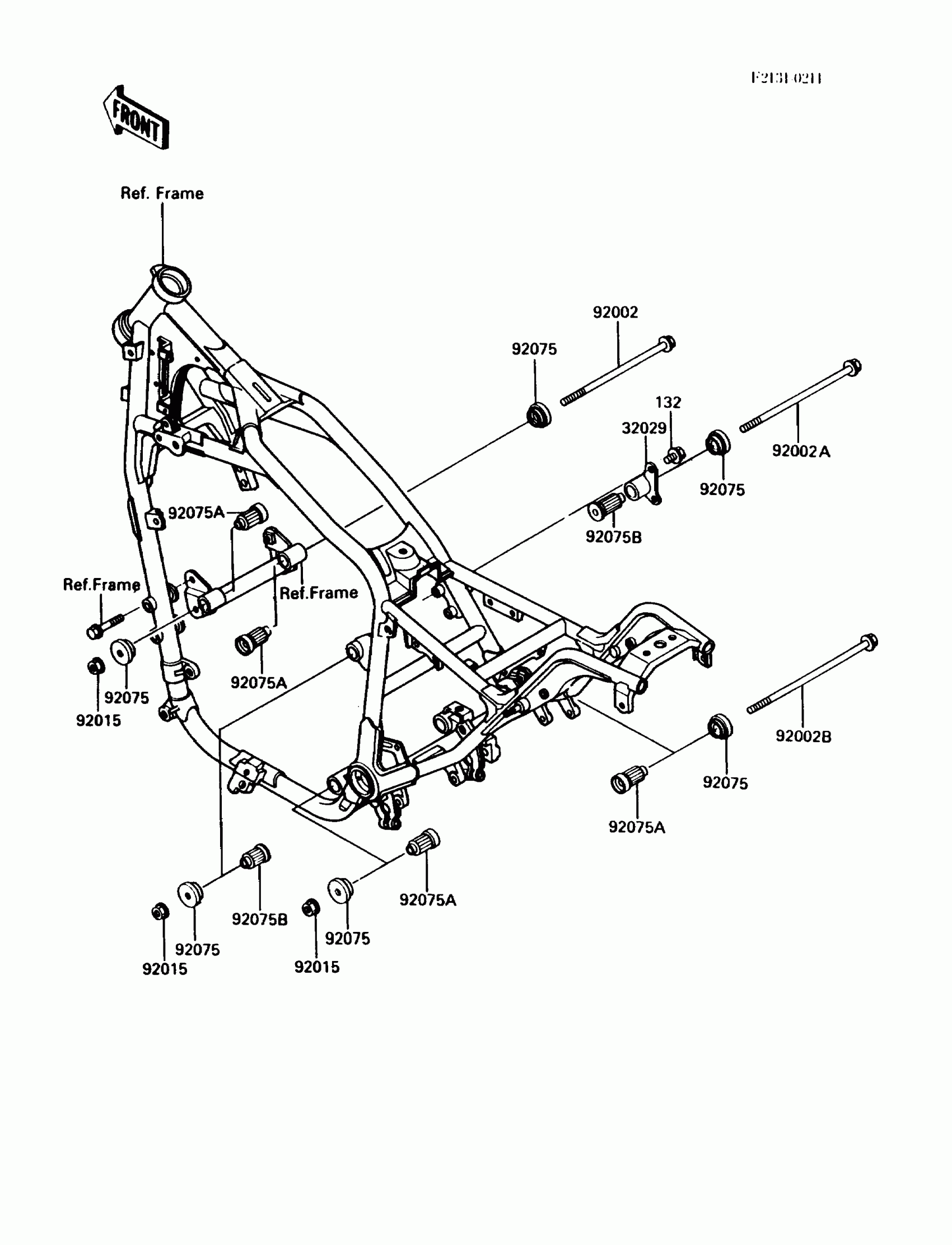

Kawasaki Vulcan 750 Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED

130D0612

$0.67

132

BOLT-FLANGED-SMALL,8X30

132E0830

$5.78

132A

BOLT-FLANGED-SMALL,8X35

132E0835

$5.52

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

11012

CAP,SWING ARM

11012-1433

$21.93

11043

BRACKET,JOINT BOX

11043-1934

Unavailable

11043A

BRACKET,HARNESS

11043-1935

$12.40

14025

COVER,FUEL TANK,LH

14025-1994

$53.05

14025A

COVER,FUEL TANK,RH

14025-1995

$44.09

32097

CASE-BATTERY

32097-1121

$130.02

32098

CASE-TOOL

32098-1057

$73.59

32098A

CASE-TOOL

32098-1058

$49.12

32109

GRIP-FRAME,LWR,LH

32109-1131

$214.77

32109A

GRIP-FRAME,LWR,RH

32109-1132

$214.77

32109B

GRIP-FRAME,UPP

32109-1133

Unavailable

35011

STAY,MUFFLER,LH

35011-1263

$368.27

35011A

STAY,MUFFLER,RH

35011-1264

$368.27

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92037

CLAMP

92037-093

$11.37

92072

BAND,L=82

92072-053

$12.35

92072A

BAND,BATTERY

92072-1177

$10.62

92075

DAMPER

92075-1076

$8.86

92075A

DAMPER,BATTERY BAND

92075-1371

$11.49

92172

SCREW,6X14

92172-0004

$2.80
