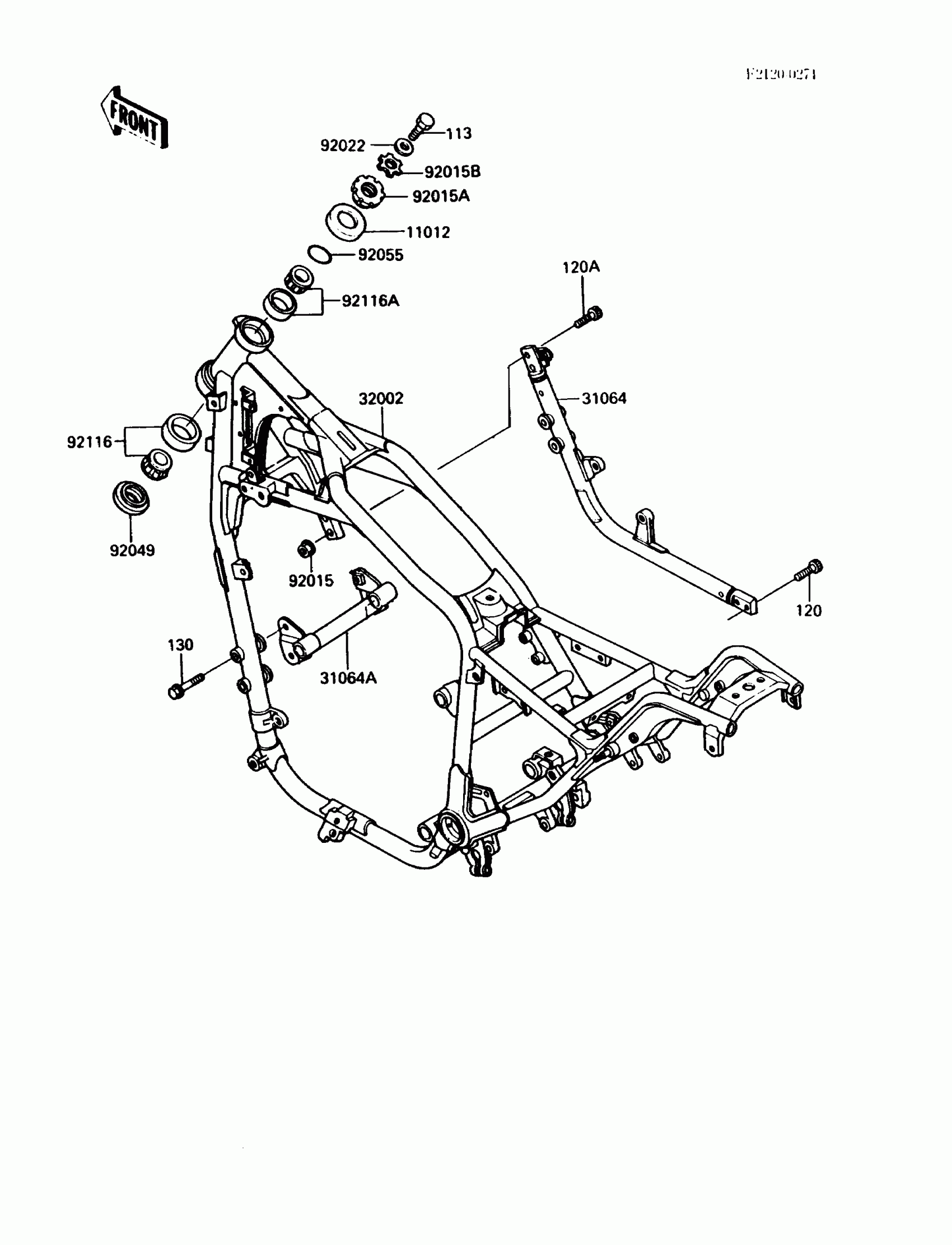

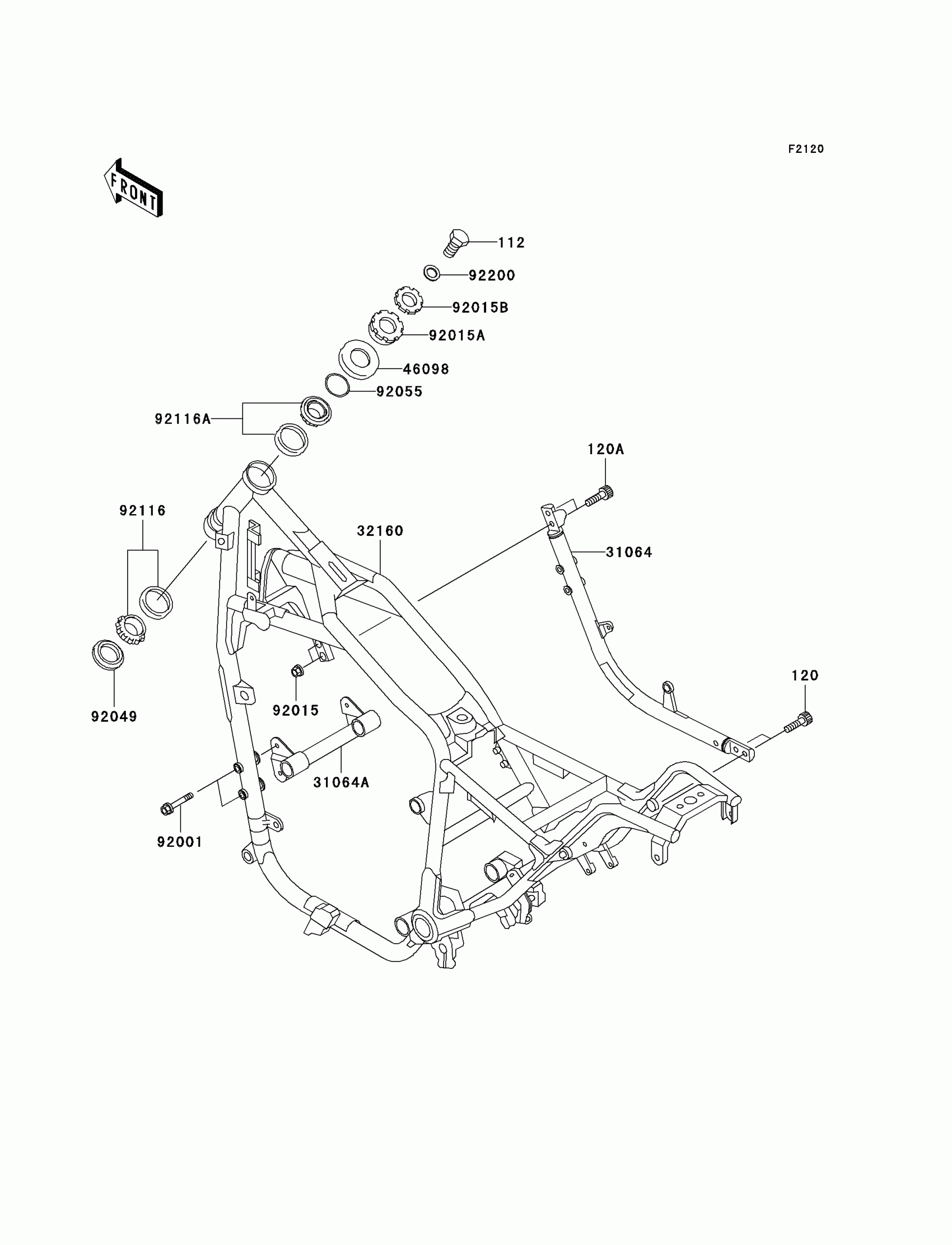

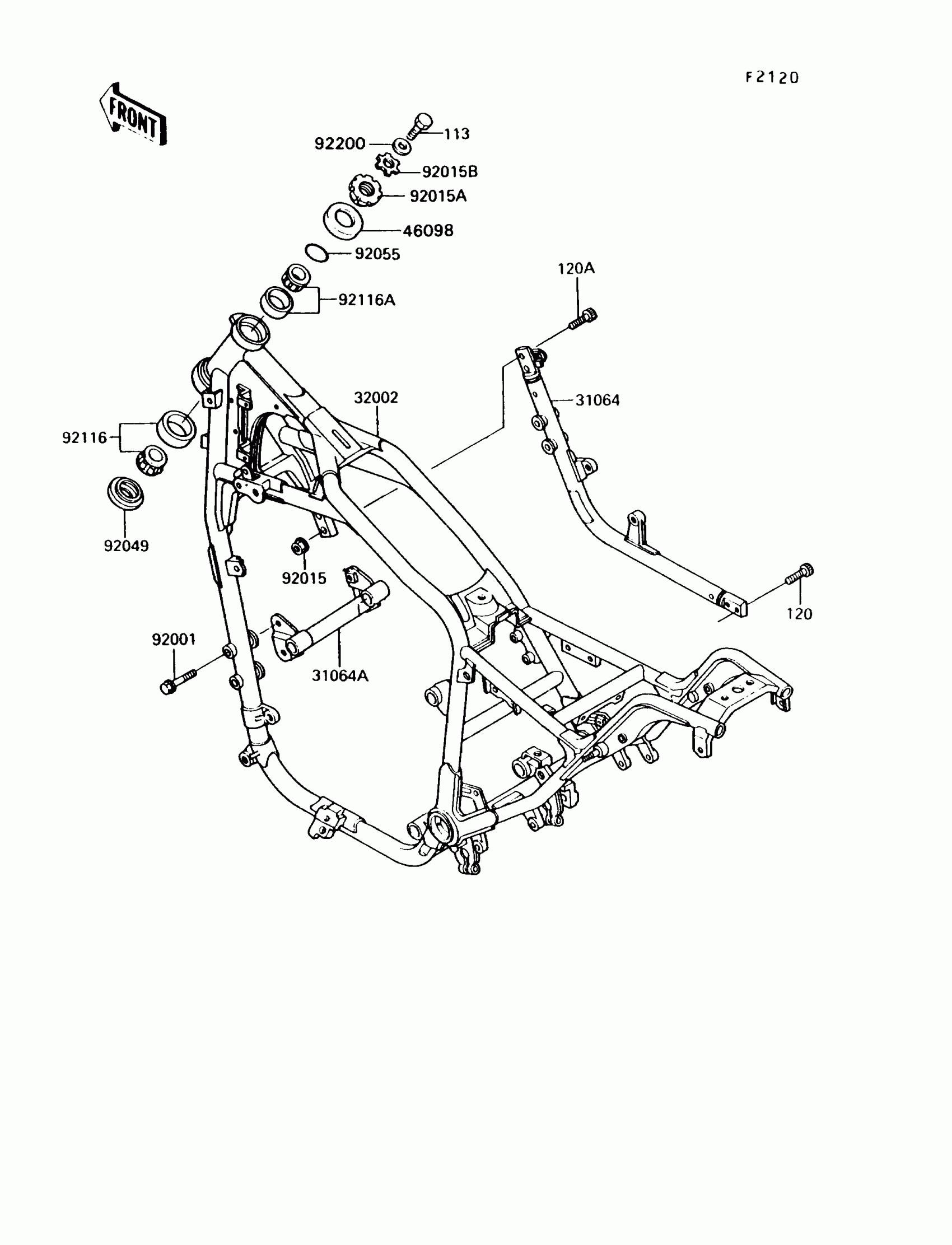

Kawasaki Vulcan 750 Frame Diagram

Description

Price

112

BOLT-UPSET,14X25

112G1425

Unavailable

120

BOLT-SOCKET,10X20

120S1020

$5.44

120A

BOLT-SOCKET,10X30

120S1030

$6.22

31064

PIPE-COMP,SUB FRAME

31064-1058

Unavailable

31064A

PIPE-COMP

31064-1059

$144.24

32160

FRAME-COMP

32160-1314

$1,221.30

46098

CAP,STEERING STEM

46098-017

$6.16

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

$6.88

92015

NUT,10MM

92015-1021

$4.23

92015A

NUT,25MM,T=10

92015-1377

$27.29

92015B

NUT,25MM,T=6

92015-1378

$20.96

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92055

RING-O,ID=24.5

92055-1459

$4.73

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92116A

BEARING-ROLLER,HI-CAP32005JR

92116-1058

$50.00

92200

WASHER

92200-1140

$11.50
