Description

Price

11009

GASKET,GENERATOR COVER

11009-1474

Unavailable

11009A

GASKET,TRANSMISSION COVER

11009-1475

Unavailable

11009B

GASKET,CLUTCH OUTSIDE COVER

11009-1512

Unavailable

11009C

GASKET,CLUTCH COVER

11009-1561

Unavailable

11044

BRACKET,LEAD WIRE

11044-1474

$9.47

14024

COVER,TRANSMISSION

14024-1175

$126.36

14031

COVER-GENERATOR

14031-1187

$245.56

14031A

COVER-GENERATOR,OUTSIDE

14031-1188

$135.39

14032

COVER-CLUTCH,OUTSIDE

14032-1207

$135.39

14032A

COVER-CLUTCH

14032-1211

$440.42

16115

CAP-OIL FILLER

16115-1055

$15.98

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92002

BOLT,6X16

92002-1439

$4.69

92002A

BOLT,6X30

92002-1622

$7.24

92009

SCREW,6X20

92009-1156

$4.39

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,5.28X1.78

92055-109

$4.39

92055B

RING-O,GENERATOR COVER

92055-1319

$20.98

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132B

BOLT-FLANGED-SMALL,6X40

132E0640

$5.91

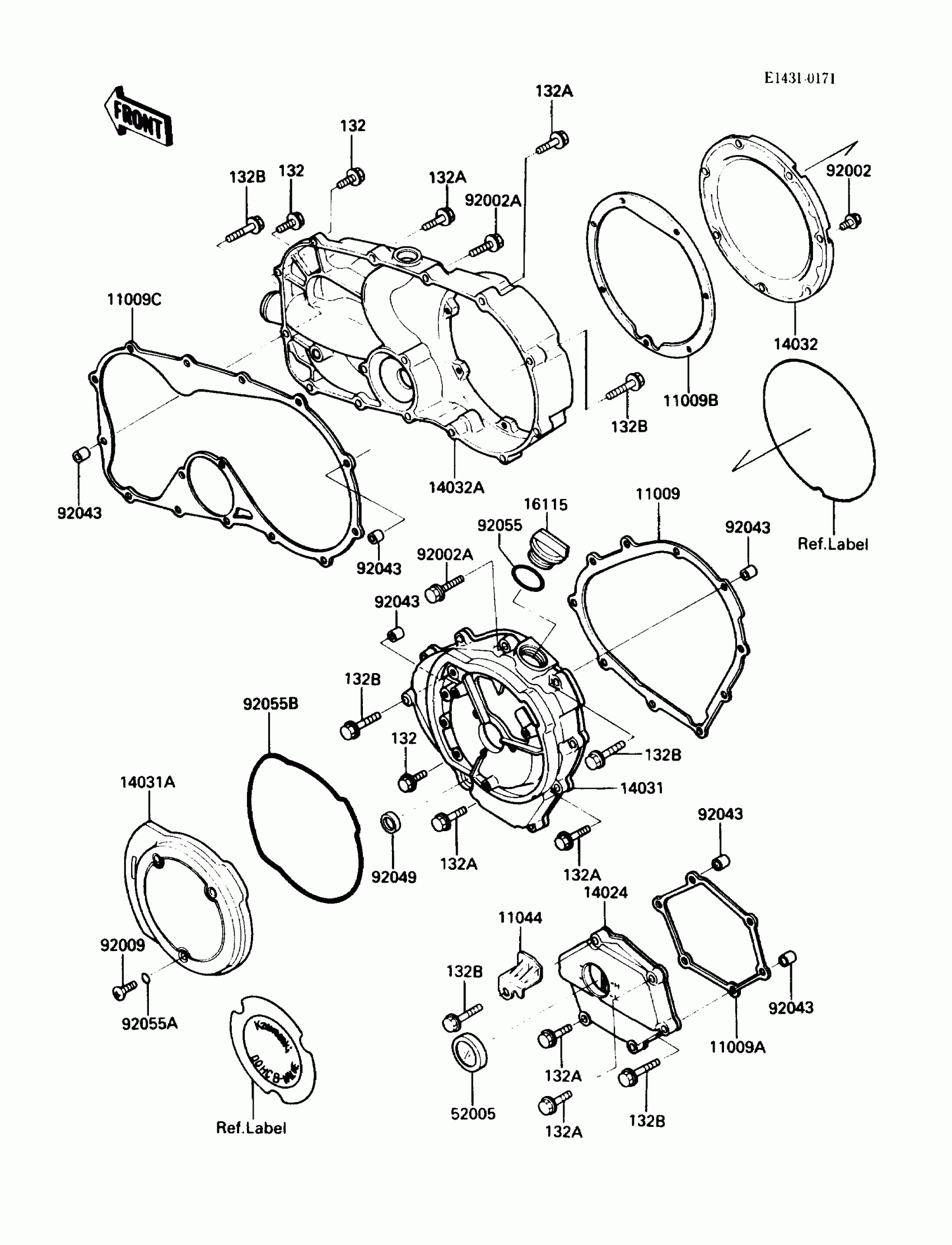

Kawasaki Vulcan 750 Engine Cover(s) Diagram

GASKET,GENERATOR COVER

GASKET,TRANSMISSION COVER

GASKET,CLUTCH OUTSIDE COVER

GASKET,CLUTCH COVER

BRACKET,LEAD WIRE

COVER,TRANSMISSION

COVER-GENERATOR

COVER-GENERATOR,OUTSIDE

COVER-CLUTCH,OUTSIDE

COVER-CLUTCH

CAP-OIL FILLER

GAUGE,OIL LEVEL

BOLT,6X16

BOLT,6X30

SCREW,6X20

PIN,6.2X8X14

SEAL-OIL,TB13225.5

RING-O,31.5X2.6

RING-O,5.28X1.78

RING-O,GENERATOR COVER

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL,6X30

BOLT-FLANGED-SMALL,6X40
