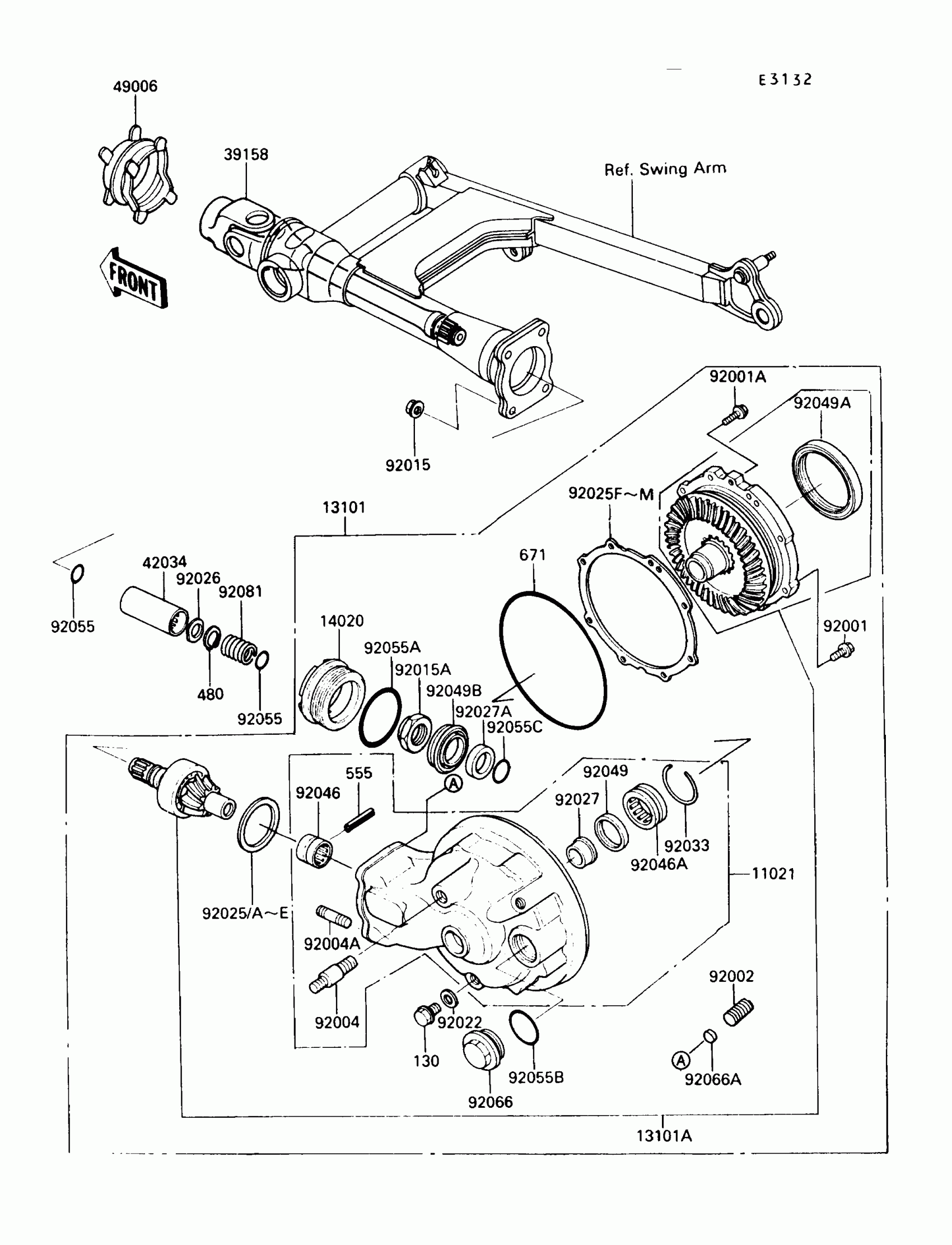

Kawasaki Vulcan 750 Drive Shaft/Final Gear Diagram

#

Description
Price

11021A

CASE-ASSY,FINAL GEAR,M.SILVER

11021-1066-7J

$1,258.76

13101A

GEAR-ASSY,FINAL,M.SILVER

13101-1124-7J

$1,862.30

13101B

GEAR-ASSY,FINAL BEVEL

13101-5056

$1,503.40

14020

RETAINER

14020-1055

$83.85

39158

SHAFT-ASSY-DRIVE

39158-1052

$361.92

42034

COUPLING,DRIVE SHAFT,OUTER

42034-1035

$135.39

49006

BOOT,PROPELLER SHAFT

49006-1173

$36.66

92001

BOLT,FLANGED,8X28

92001-1095

$6.57

92001A

BOLT,FLANGED,10X24

92001-1110

$5.88

92002

SCREW-SET-SOCKET,8X18

92002-1836

$4.69

92004

STUD,RR SHOCKABSORBER

92004-1047

$15.74

92004A

STUD,8X20

92004-1159

$5.41

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015A

NUT,25MM

92015-1241

$22.14

92022

WASHER,8.2X16X1

92022-1086

$3.92

92025

SHIM,50X61X0.10

92025-1519

Unavailable

92025A

SHIM,50X61X0.15

92025-1520

Unavailable

92025B

SHIM,50X61X0.20

92025-1521

Unavailable

92025C

SHIM,50X61X0.30

92025-1522

Unavailable

92025D

SHIM,50X61X0.40

92025-1523

Unavailable

92025E

SHIM,50X61X0.50

92025-1524

Unavailable

92025F

SHIM,T=0.15

92025-1525

Unavailable

92025G

SHIM,T=0.50

92025-1526

Unavailable

92025H

SHIM,T=0.60

92025-1527

Unavailable

92025I

SHIM,T=0.70

92025-1528

Unavailable

92025J

SHIM,T=0.80

92025-1529

Unavailable

92025K

SHIM,T=0.90

92025-1530

Unavailable

92025L

SHIM,T=1.00

92025-1531

Unavailable

92025M

SHIM,T=1.20

92025-1532

Unavailable

92026

SPACER,DRIVE SHAFT

92026-1129

$8.21

92027

COLLAR

92027-1412

$33.67

92027A

COLLAR,25X35X11

92027-1972

$32.39

92033

RING-SNAP,50.4MM

92033-1187

$5.17

92046

BEARING-NEEDLE,NK22/20R

92046-1131

$44.57

92046A

BEARING-NEEDLE,KN35/20R

92046-1132

$63.44

92049

SEAL-OIL,S3141 5.5

92049-1210

$17.56

92049A

SEAL-OIL,S75 9510

92049-1212

$32.95

92049B

SEAL-OIL,SD 35 48 8 L HS

92049-1234

$33.23

92055

RING-O,ID=18.64

92055-1044

$4.78

92055A

RING-O,61.6MM

92055-1280

$11.07

92055B

RING-O,35.8MM

92055-1281

$7.34

92055C

RING-O,19.8X1.9

92055-1332

$4.69

92066A

PLUG,OIL FILLER CAP,M.SILVER

92066-1006-7J

$16.53

92066B

PLUG,6.2X3

92066-1272

$3.18

92081

SPRING,DRIVE SHAFT

92081-1717

Unavailable

130

BOLT-FLANGED,8X12

130X0812

Unavailable

480

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

555

PIN-SPRING

555A0428

$2.30

671

O RING

671B25145

$20.98
