Description

Price

13091

HOLDER,NEEDLE JET

13091-1384

$41.88

14024

COVER,DRAIN

14024-1094

$128.03

14024A

COVER,AIR CUT VALVE

14025-1903

$58.45

14041

COVER-COMP,MIXING,INSIDE

14041-1061

$72.14

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009D

NEEDLE-JET,N53A,FR

16009-1327

$37.51

16009E

NEEDLE-JET,N53B,RR

16009-1328

$37.51

16012

CAP-STARTER PLUNGER

16012-1051

$10.88

16012A

CAP-STARTER PLUNGER

16012-1052

$15.04

16014

SCREW-PILOT AIR

16014-1054

$24.57

16016

PLUNGER,STARTER

16016-1066

$45.48

16020

CHAMBER-FLOAT,COMP

16020-1051

$299.62

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1059

$59.98

16126

VALVE,VACUUM

16126-1173

$200.34

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92002

BOLT,4X14

92002-1761

Unavailable

92009

SCREW,DRAIN,M6X1.0

92009-1434

$14.92

92022

WASHER,PLAIN

92022-1003

$4.31

92037

CLAMP,FLOAT VALVE

16044-007

$7.91

92043

PIN,FLOAT

92043-1285

$18.39

92055

RING-O,PILOT ADJUST

92055-1002

$4.31

92055A

RING-O

92055-1245

$5.57

92055B

RING-O

92055-1290

$18.39

92055C

RING-O

92055-1291

$21.74

92063

JET-MAIN,#135

92063-1014

$14.10

92063A

JET-MAIN,#138

92063-1015

$14.10

92063B

JET-MAIN,#125

92063-1069

$14.79

92063C

JET-MAIN,#122

92063-1073

$14.79

92063D

JET-MAIN,#128

92063-1074

$14.10

92063E

JET-MAIN,#130

92063-1075

$14.10

92063F

JET-MAIN,#132

92063-1076

$14.10

92064

JET-PILOT,#38

92064-1118

$19.04

92064A

JET-PILOT,#35

92064-1123

$19.04

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$5.46

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.36

92081B

SPRING,VACUUM VALVE

92081-1874

$29.43

92081C

SPRING,AIR CUT VALVE

92081-1891

$12.96

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

223

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

223A

SCREW-PAN-WS-CROS,5X12

223D0512

$1.91

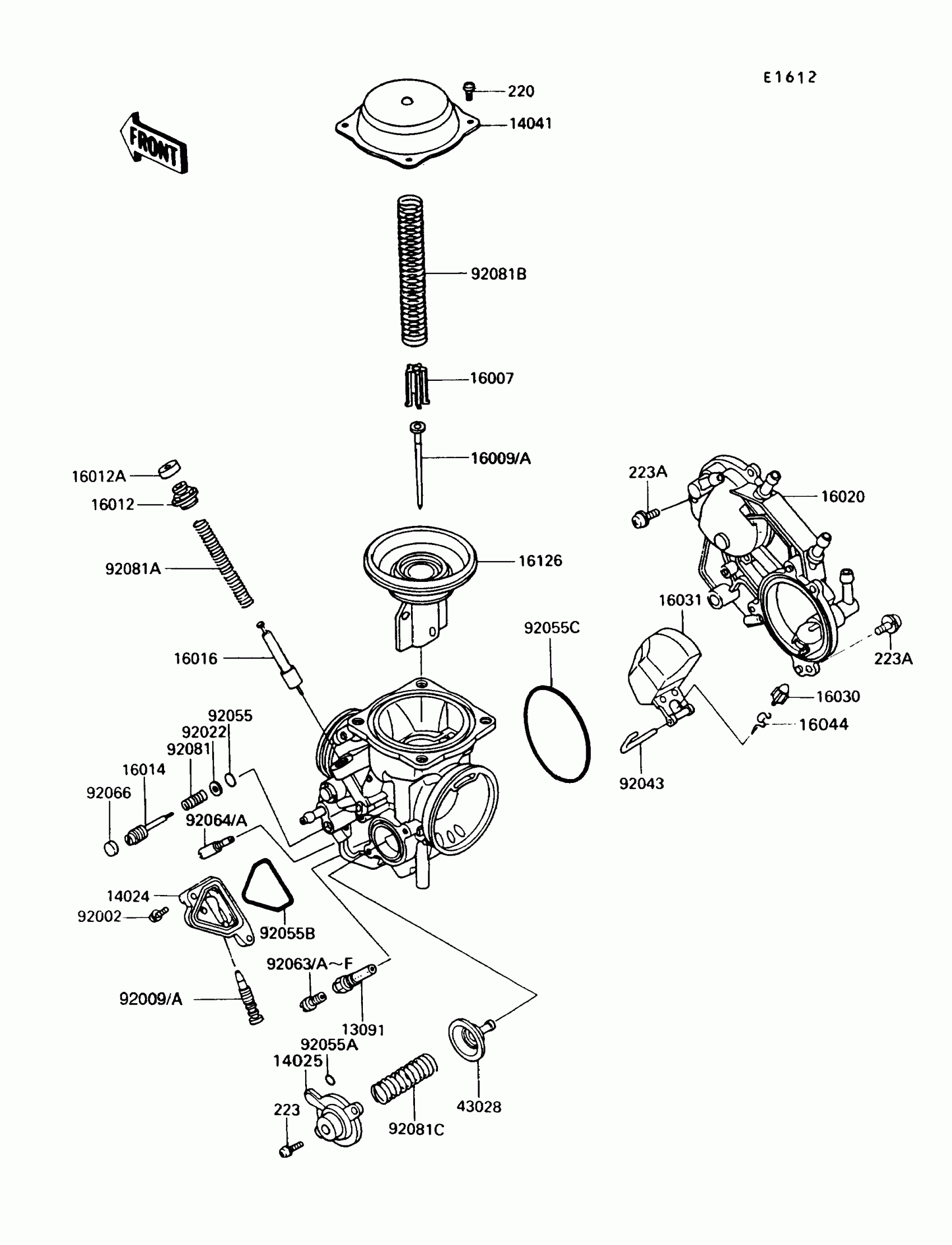

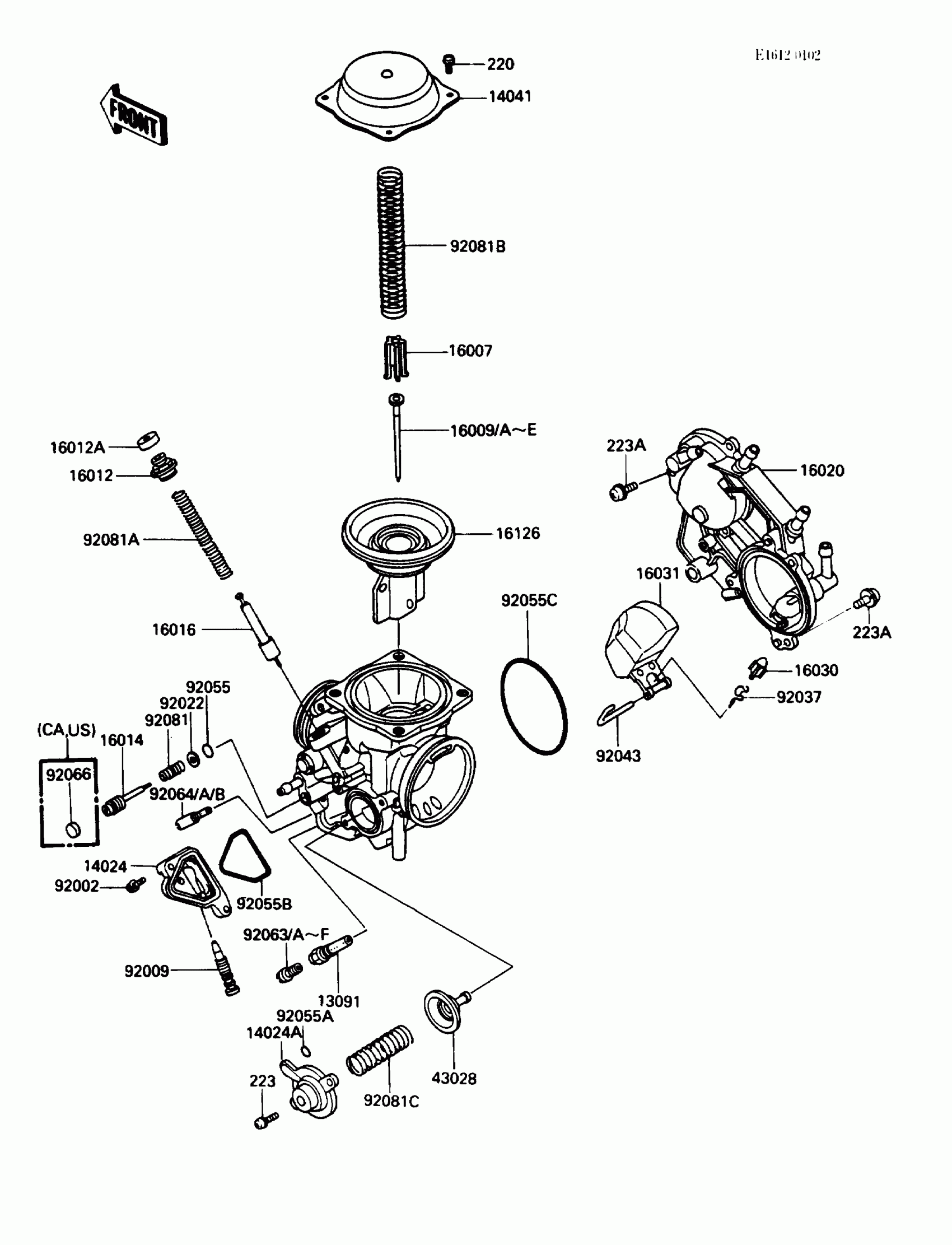

Kawasaki Vulcan 750 Carburetor Parts Diagram

HOLDER,NEEDLE JET

COVER,DRAIN

COVER,AIR CUT VALVE

COVER-COMP,MIXING,INSIDE

SEAT-SPRING,VALVE

NEEDLE-JET,N53A,FR

NEEDLE-JET,N53B,RR

CAP-STARTER PLUNGER

CAP-STARTER PLUNGER

SCREW-PILOT AIR

PLUNGER,STARTER

CHAMBER-FLOAT,COMP

VALVE-FLOAT

FLOAT

VALVE,VACUUM

DIAPHRAGM,5.9MM,AIR CUT VALVE

BOLT,4X14

SCREW,DRAIN,M6X1.0

WASHER,PLAIN

CLAMP,FLOAT VALVE

PIN,FLOAT

RING-O,PILOT ADJUST

RING-O

RING-O

RING-O

JET-MAIN,#135

JET-MAIN,#138

JET-MAIN,#125

JET-MAIN,#122

JET-MAIN,#128

JET-MAIN,#130

JET-MAIN,#132

JET-PILOT,#38

JET-PILOT,#35

PLUG,PILOT AIR SCREW,6.9X2

SPRING,PILOT ADJUST SCREW

SPRING,STARTER PLUNGER

SPRING,VACUUM VALVE

SPRING,AIR CUT VALVE

SCREW-PAN-CROS,4X8

SCREW-PAN-WS-CROS,4X10

SCREW-PAN-WS-CROS,5X12
