1996 Kawasaki Vulcan 500 Rear Wheel/chain Diagram

← All diagrams

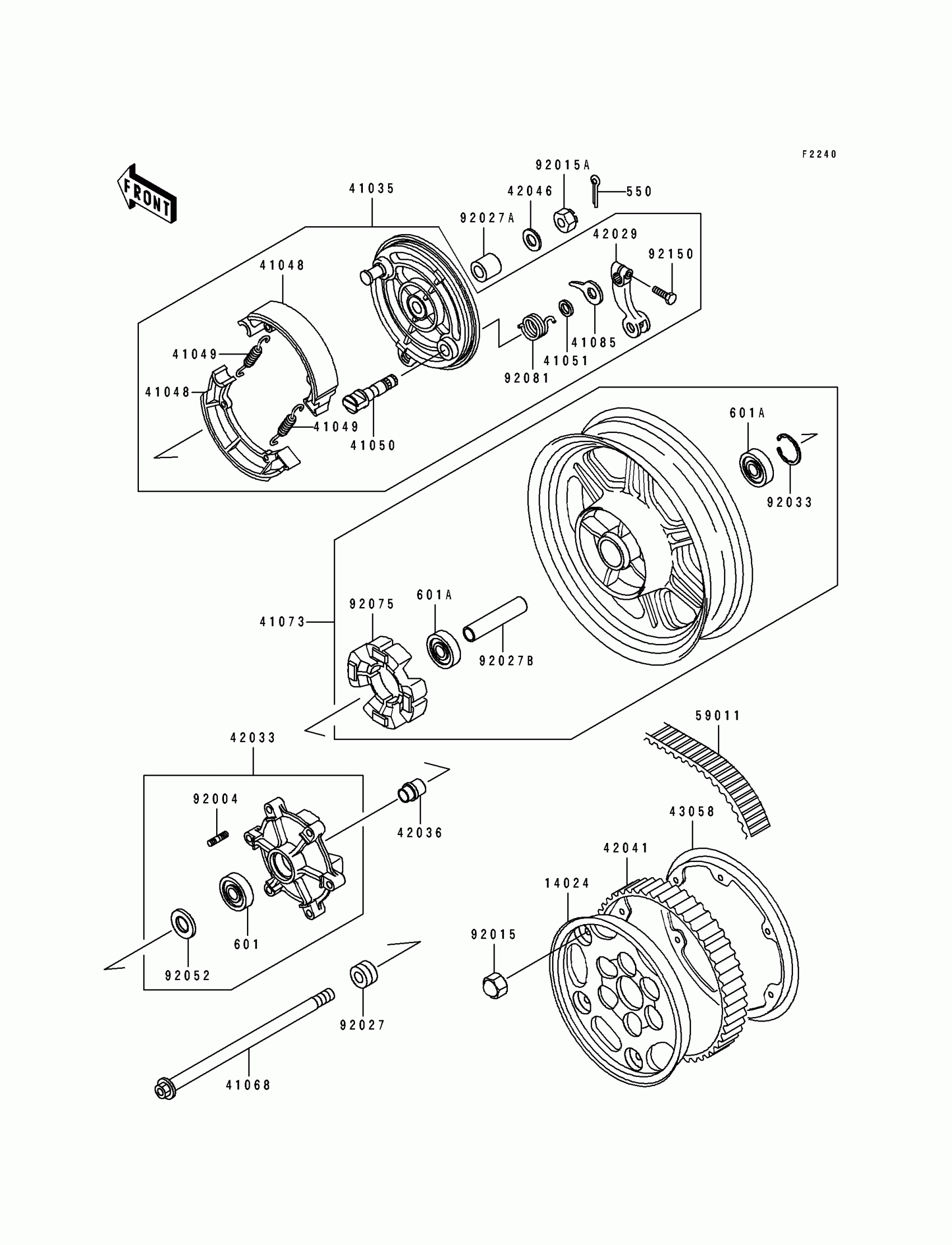

Find the part on the Rear Wheel/chain diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Vulcan 500 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,HUB SPROCKET,OUTSIDE

14024-1873

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1480

1
Out of stock

41048

SHOE-BRAKE

41048-1070

1
Out of stock

41049

SPRING,BRAKE SHOE

41049-012

1
Out of stock

41050

CAM-BRAKE

41050-017

1
Out of stock

41051

SEAL,BRAKE CAM

41051-003

1
Out of stock

41068

AXLE,RR

41068-1205

1
Out of stock

41073

WHEEL-ASSY,RR,GRAY+POLISH+CLEA

41073-1581-JD

1
Out of stock

41085

INDICATOR

41085-1054

1
Out of stock

42029

LEVER-BRAKE CAM

42029-039

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-1138

1
Out of stock

42036

SLEEVE,RR HUB,L=33

42036-1146

1
Out of stock

42041

SPROCKET-HUB,68T

42041-1195

1
Out of stock

42046

WASHER,17.3X32X3.2

42046-009

1
Out of stock

43058

RING,HUB SPROCKET

43058-1054

1
Out of stock

59011

BELT,DRIVE,137T

59011-1012

1
Out of stock

92004

STUD,10X27

92004-1145

1
Out of stock

92015

NUT,CAP,10MM

92015-1685

1
Out of stock

92015A

NUT,CASTLE,16MM

92015-1951

1
Out of stock

92027

COLLAR,REAR AXLE,LH,L=23.5

92027-1368

1
Out of stock

92027A

COLLAR,REAR AXLE,RH,L=18.5

92027-1484

1
Out of stock

92027B

COLLAR,17.2X25X101

92027-1863

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1687

1
Out of stock

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1814

1
Out of stock

92150

BOLT,8X27

92150-1797

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock
