1994 Kawasaki Vulcan 500 Clutch Diagram

← All diagrams

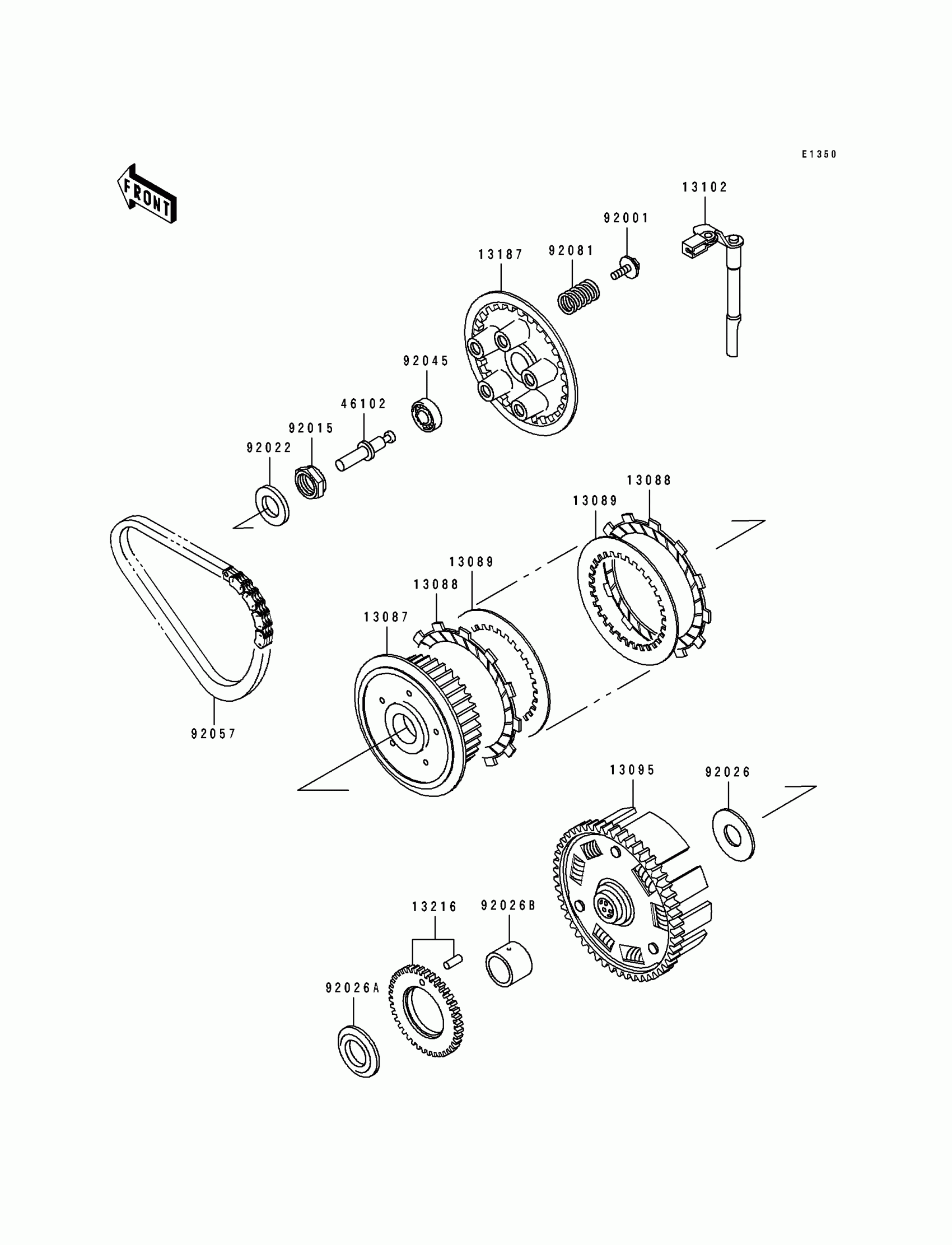

Find the part on the Clutch diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-1052

1
Out of stock

13088

PLATE-FRICTION

13088-1013

1

$12.46

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

1

$10.14

In stock

13095

HOUSING-COMP-CLUTCH

13095-1158

1

$556.32

In stock

13102

RELEASE-COMP-CLUTCH

13102-1108

1

$65.76

In stock

13187

PLATE-CLUTCH OPERATING

13187-1012

1
Out of stock

13216

GEAR-COMP,40T

13216-1066

1

$85.47

In stock

46102

ROD,CLUTCH

46102-1134

1

$36.83

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER,25X47X4

92026-1242

1

$29.98

In stock

92026B

SPACER,25X30X23.5

92026-1243

1

$34.32

In stock

92045

1

$12.85

In stock

92057

CHAIN,PRIMARY

92057-1229

1
Out of stock

92081

SPRING,CLUTCH

92081-1864

1

$7.53

In stock
