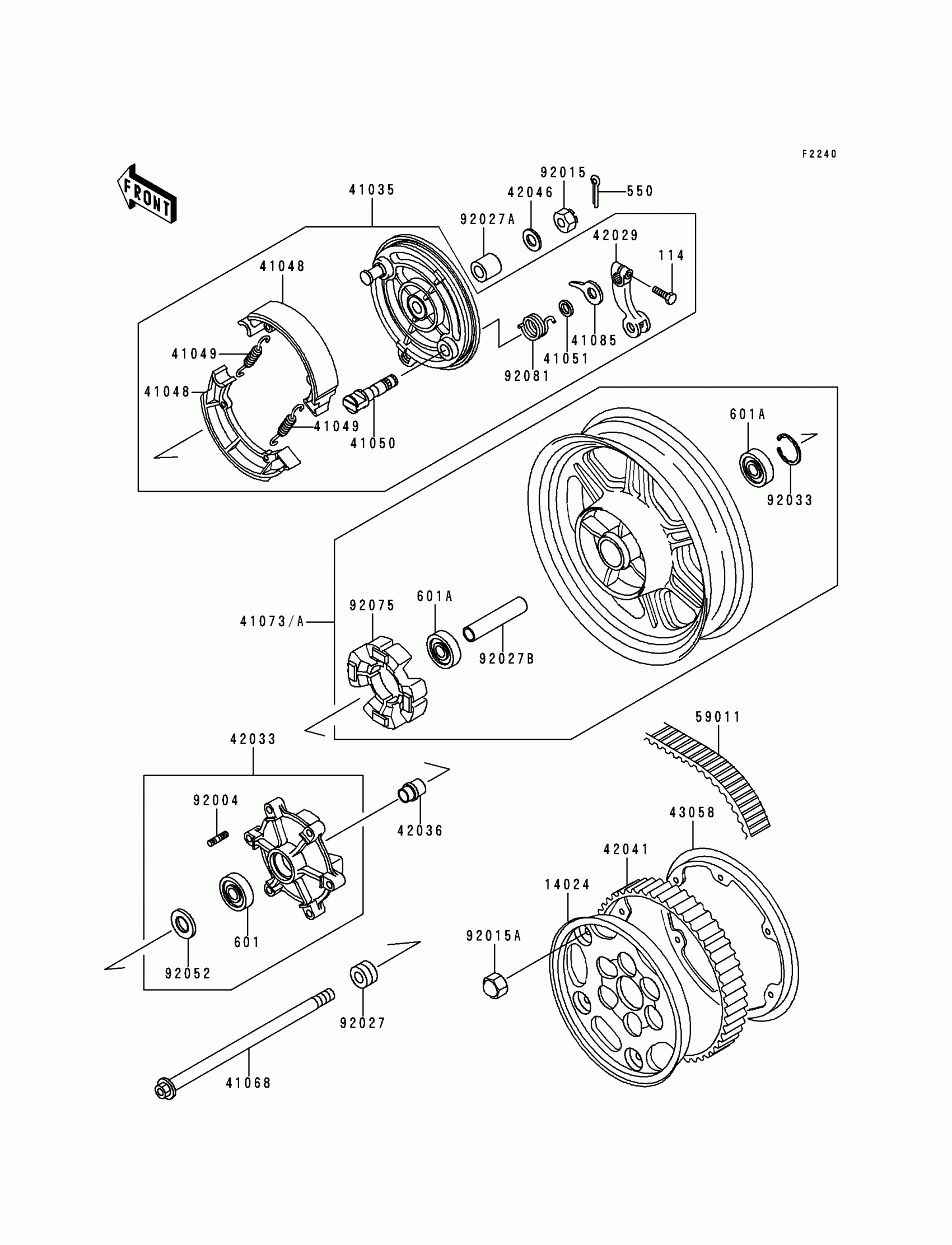

Kawasaki Vulcan 500 Rear Wheel/Chain/Coupling Diagram

#

Description
Price

114

BOLT HEX HEAD 8X28

114G0828

$3.71

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6205G

601B6205G

$19.08

601A

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

14024

COVER,HUB SPROCKET,OUTSIDE

14024-1873

Unavailable

41035

PANEL-ASSY-BRAKE,RR

41035-1277

$292.67

41048

SHOE-BRAKE

41048-1070

$51.67

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-017

Unavailable

41051

SEAL,BRAKE CAM

41051-003

$4.26

41068

AXLE,RR

41068-1205

Unavailable

41073A

WHEEL-ASSY,RR,C.GRAY+CLEAR

41073-1493-JD

Unavailable

41085

INDICATOR

41085-1054

$14.32

42029

LEVER-BRAKE CAM

42029-039

$65.77

42033

COUPLING-ASSY,RR HUB

42033-1138

$268.74

42036

SLEEVE,RR HUB,L=33

42036-1146

$49.58

42041

SPROCKET-HUB,68T

42041-1195

Unavailable

42046

WASHER,17.3X32X3.2

42046-009

$7.84

43058

RING,HUB SPROCKET

43058-1054

$75.90

59011

BELT,DRIVE,137T

59011-1012

$426.14

92004

STUD,10X27

92004-1145

Unavailable

92015

NUT,16MM

92015-055

$11.50

92015A

NUT,CAP,10MM

92015-1685

$12.48

92027

COLLAR,REAR AXLE,LH,L=23.5

92027-1368

$32.96

92027A

COLLAR,REAR AXLE,RH,L=18.5

92027-1484

Unavailable

92027B

COLLAR,17.2X25X101

92027-1863

Unavailable

92033

RING-SNAP,47MM

92033-1042

$4.22

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1687

$79.09

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1814

$10.53
