Radiator

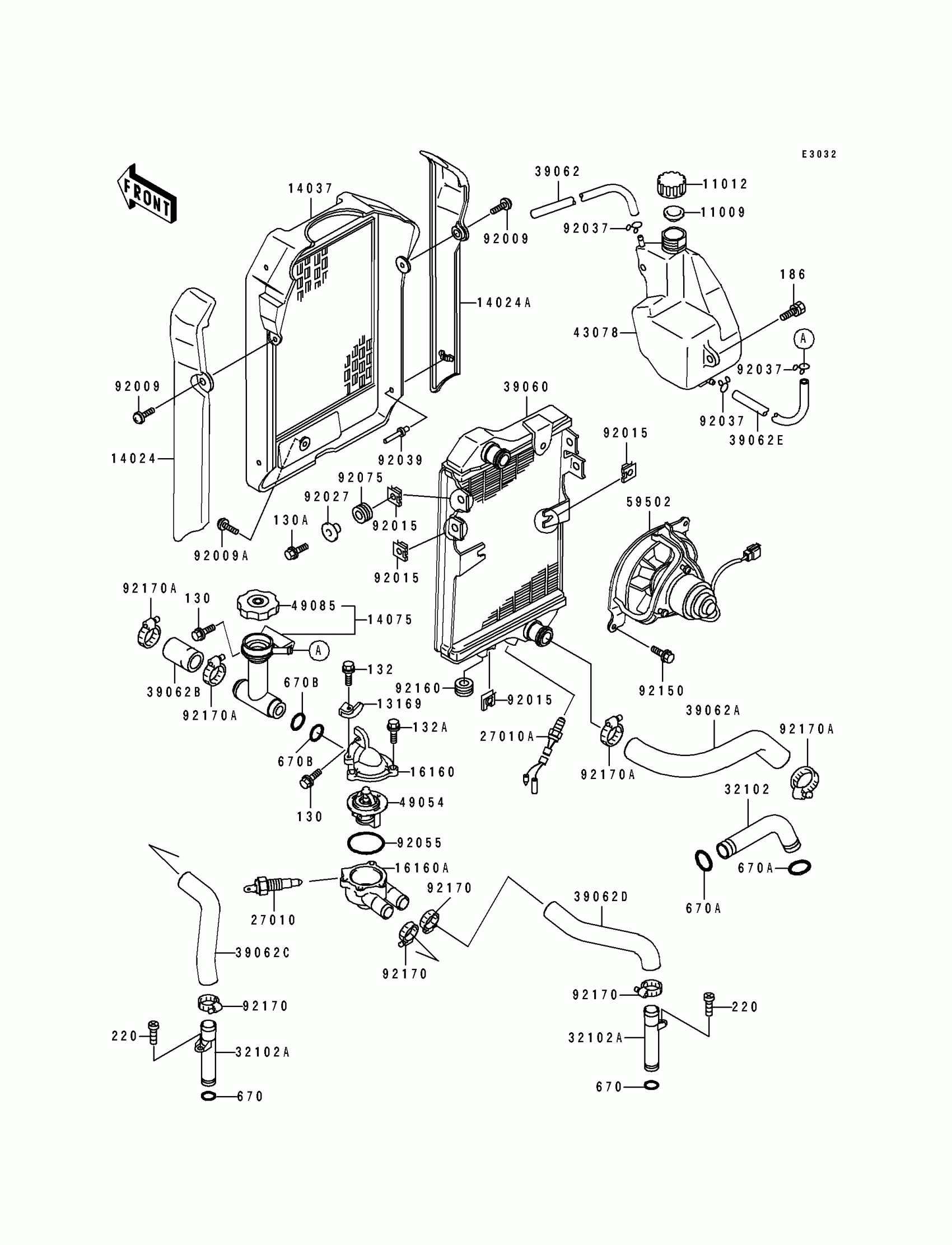

1994 Kawasaki Vulcan 500 Radiator Diagram
Find the part on the Radiator diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
130
BOLT,FLANGED,6X14
130G0614
130A
BOLT-FLANGED
130J0620
132
BOLT-FLANGED-SMALL
132G0612
132A
BOLT-FLANGED-SMALL
132G0620
13169
PLATE
13169-1901
14024
COVER,SCREEN,LH
14024-1889
14024A
COVER,SCREEN,RH
14024-1890
14037
SCREEN
14037-1127
14075
CAP-ASSY,RADIATOR
14075-1082
16160
BODY,THERMOSTAT,UPP
16160-1085
39062
HOSE-COOLING,5.5X10.5X970
39062-1060
39062A
HOSE-COOLING
39062-1106
39062C
HOSE-COOLING
39062-1108
43078
RESERVOIR
43078-1060
92009
SCREW,6X18
92009-1111
92009A
SCREW,6X14
92009-1288
92170A
CLAMP,HOSE,32MM
92170-1286
186
BOLT-UPSET-WP
186J0618
220
SCREW PAN HEAD 6X12
220B0612
