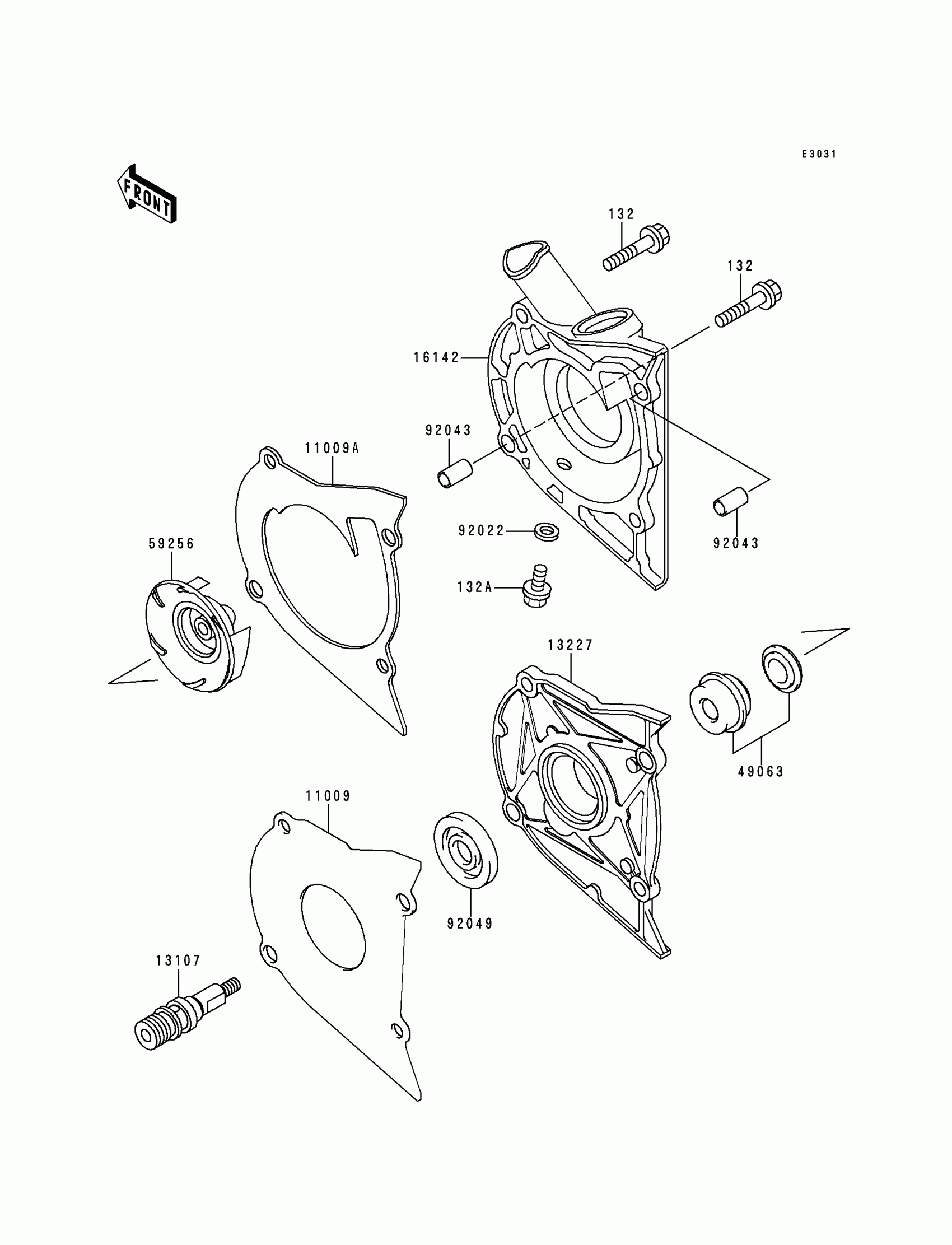

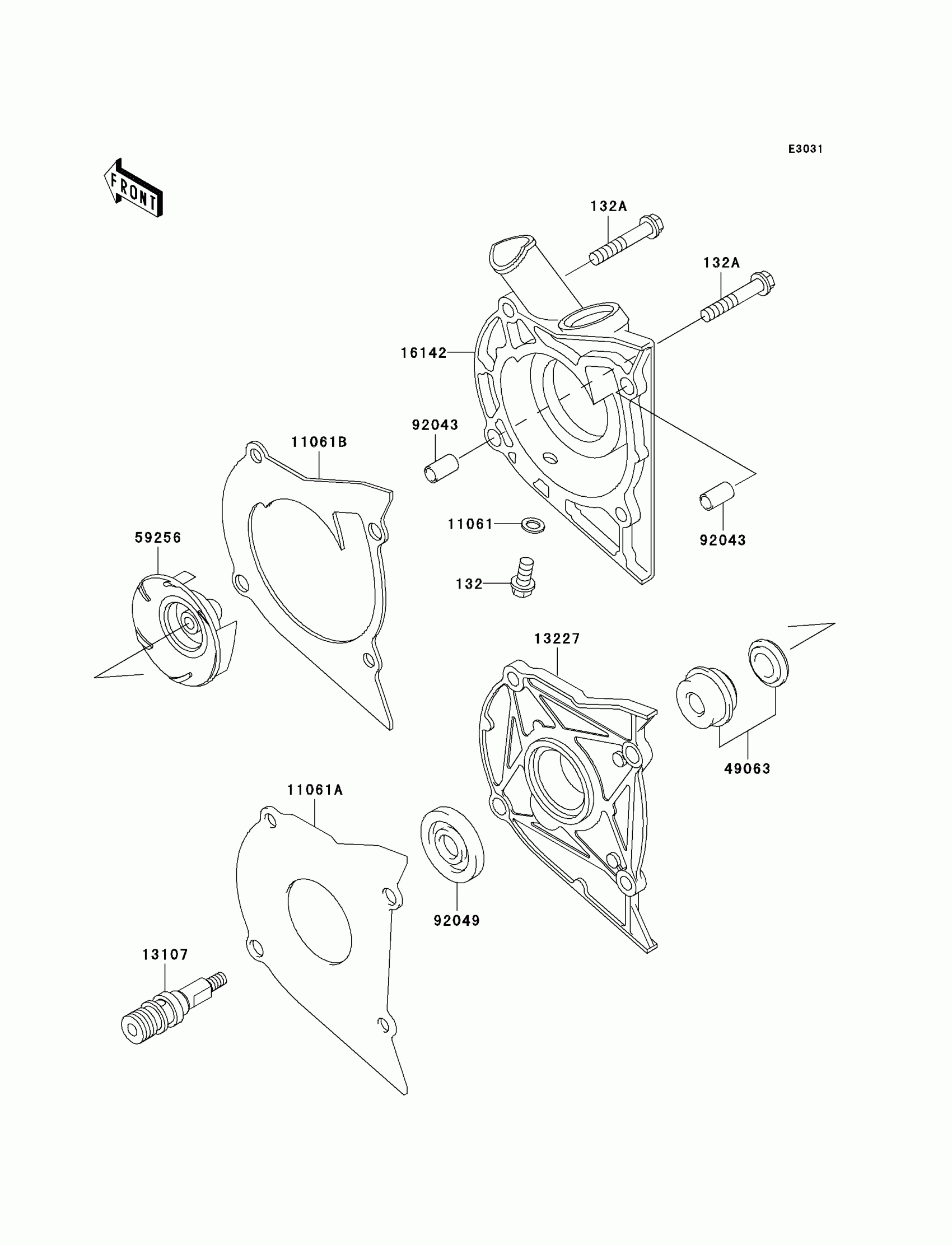

Kawasaki Vulcan 500 LTD Water Pump Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X35

132E0635

$5.24

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

11009

GASKET,PUMP HOUSING

11009-1838

Unavailable

11009A

GASKET,PUMP COVER

11009-1839

Unavailable

13107

SHAFT,IMPELLER

13107-1203

$56.67

13227

HOUSING,WATER PUMP

13227-1116

$87.78

16142

COVER-PUMP

16142-1130

$168.04

49063

SEAL-MECHANICAL

49063-1054

$16.68

59256

IMPELLER

59256-1060

$36.68

92022

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SC12365

92049-1215

$15.92
