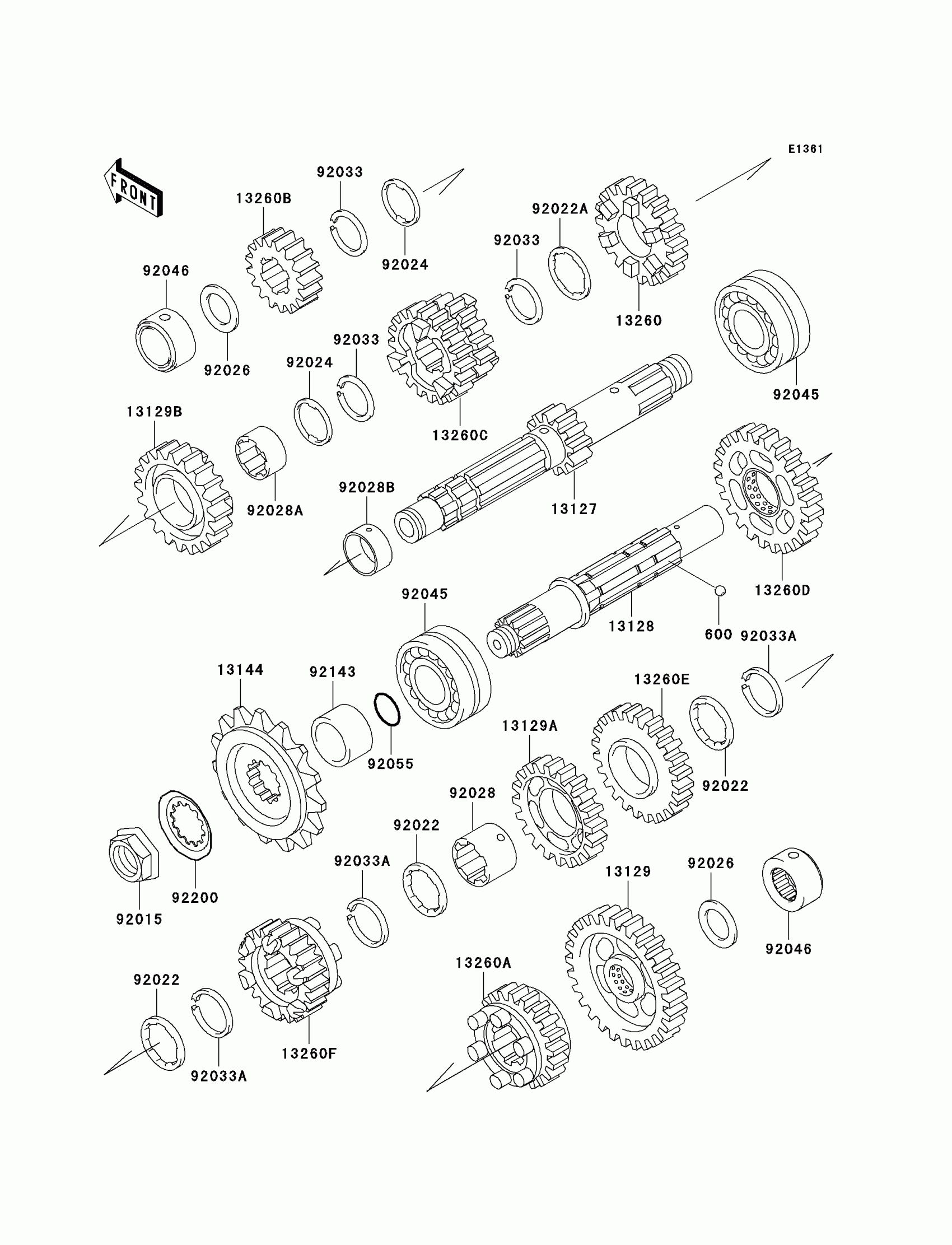

Kawasaki Vulcan 500 LTD Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,14T

13127-1148

$249.01

13128

SHAFT-TRANSMISSION OUTPUT

13128-1212

$216.79

13129

GEAR,OUTPUT LOW,36T

13129-1564

$151.72

13129A

GEAR,OUTPUT 4TH,27T

13129-1660

$143.68

13129B

GEAR,INPUT TOP,27T

13129-1859

$143.68

13144

SPROCKET-OUTPUT,16T

13144-1272

$59.35

13260

GEAR,INPUT 5TH,26T

13260-1203

$128.70

13260A

GEAR,OUTPUT 5TH,25T

13260-1388

$160.16

13260B

GEAR,INPUT 2ND,18T

13260-1507

$110.85

13260C

GEAR,INPUT 3RD&4TH,21T&24T

13260-1508

$143.68

13260D

GEAR,OUTPUT 2ND,31T

13260-1572

$149.15

13260E

GEAR,OUTPUT 3RD,28T

13260-1573

$149.15

13260F

GEAR,OUTPUT TOP,23T

13260-1585

$143.68

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

92022A

WASHER,TOOTHED,25.3X31.8X1.6

92022-1861

$7.22

92024

WASHER,TOOTHED,25.5X32X1

92024-033

$8.19

92026

SPACER,20.3X30X2.0

92026-1022

$5.59

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1364

$35.90

92028A

BUSHING,INPUT TOP GEAR

92028-1552

$31.84

92028B

BUSHING

92028-1639

$21.93

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,83993SH2-CS

92045-035

$73.57

92046

BEARING-NEEDLE,NKZ20X34X17

92046-1161

$51.25

92055

RING-O

92055-035

$5.00

92143

COLLAR,25X40X12

92143-1843

$34.48

92200

WASHER

92200-1065

$6.63
