2000 Kawasaki Vulcan 500 LTD Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

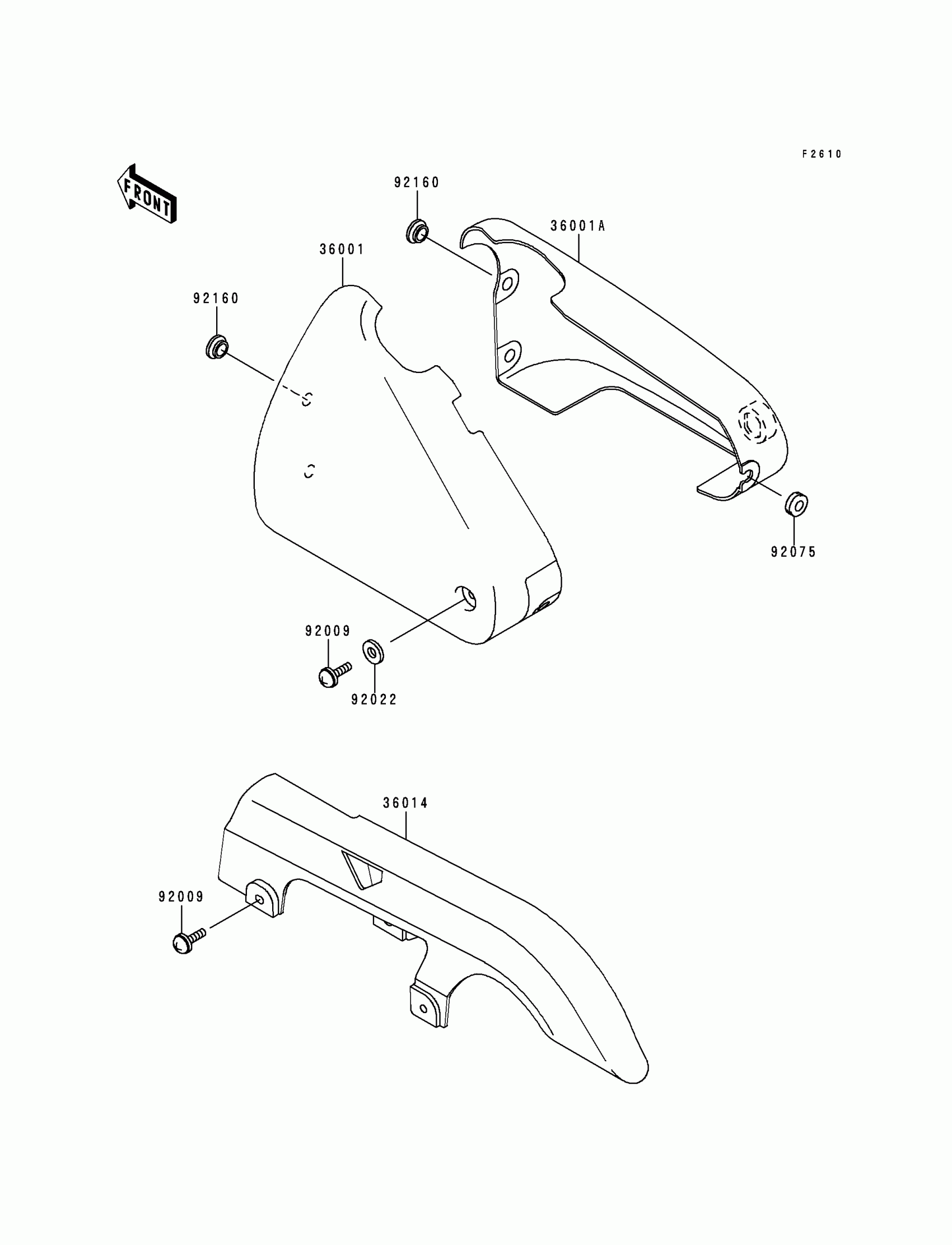

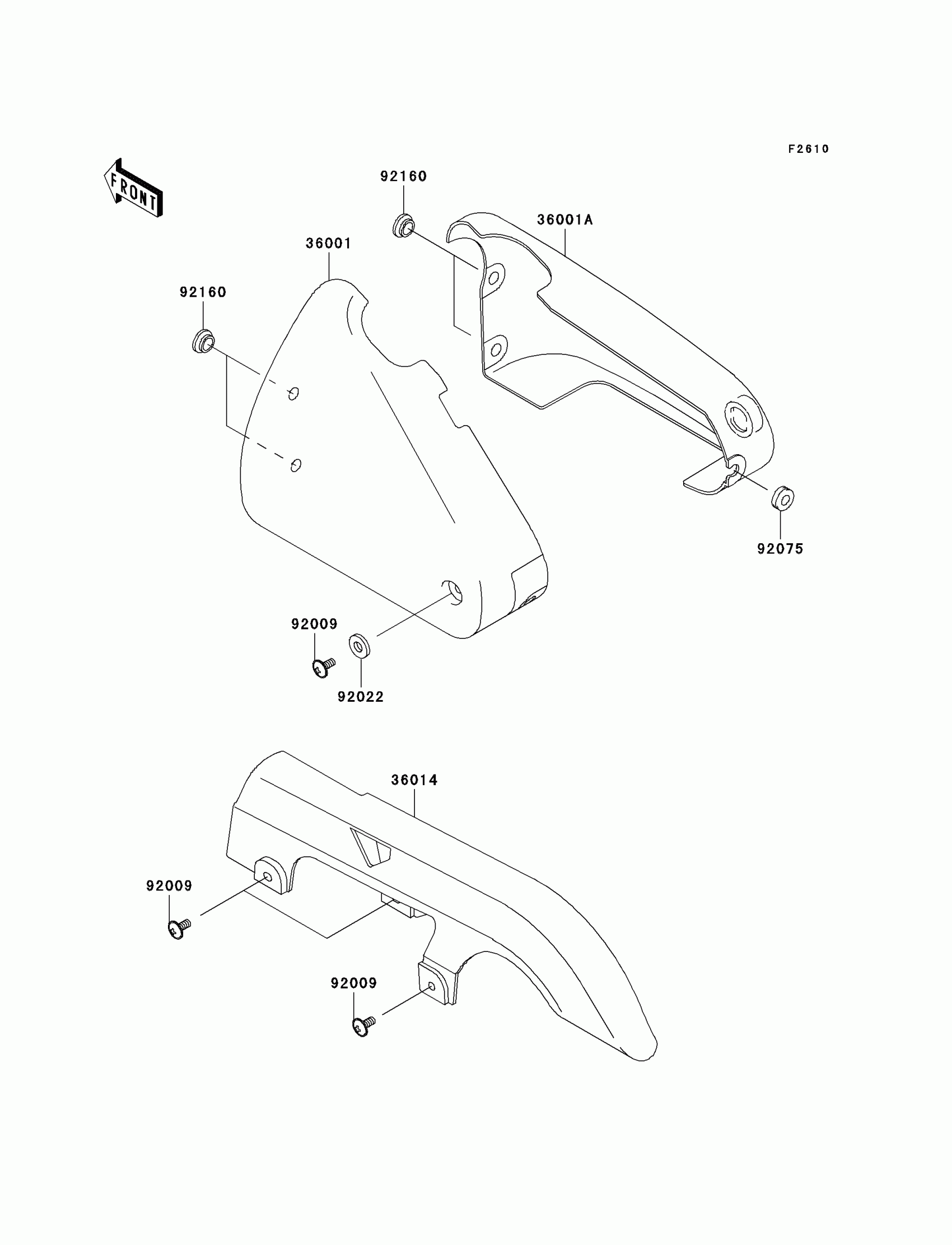

2000 Kawasaki Vulcan 500 LTD Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,EBONY

36001-1559-H8

1
Out of stock

36001A

COVER-SIDE,RH,EBONY

36001-1560-H8

1
Out of stock

36014

CASE-CHAIN

36014-1201

1
Out of stock

92009

SCREW,6X14

92009-1662

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92160

DAMPER

92160-1764

1
Out of stock
