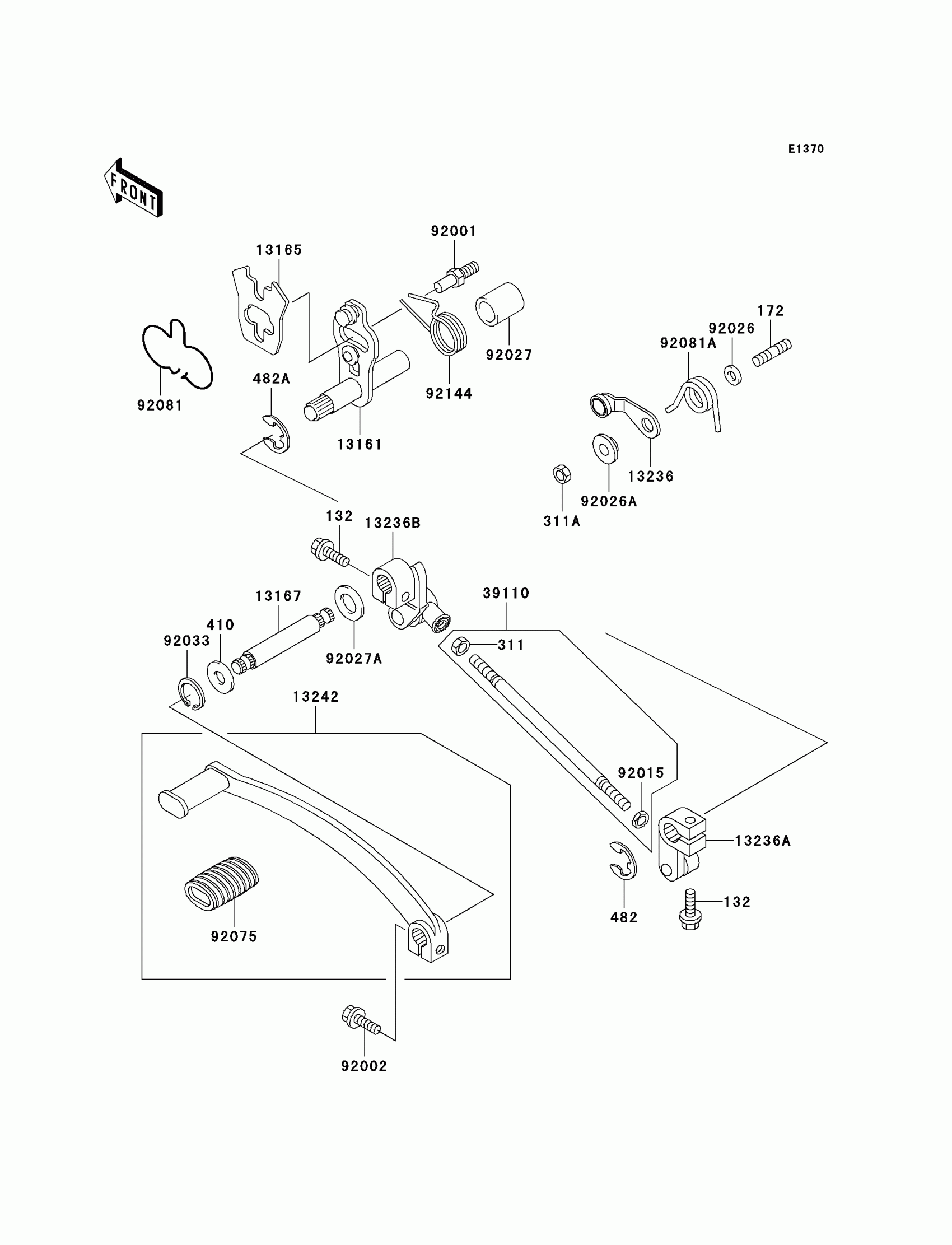

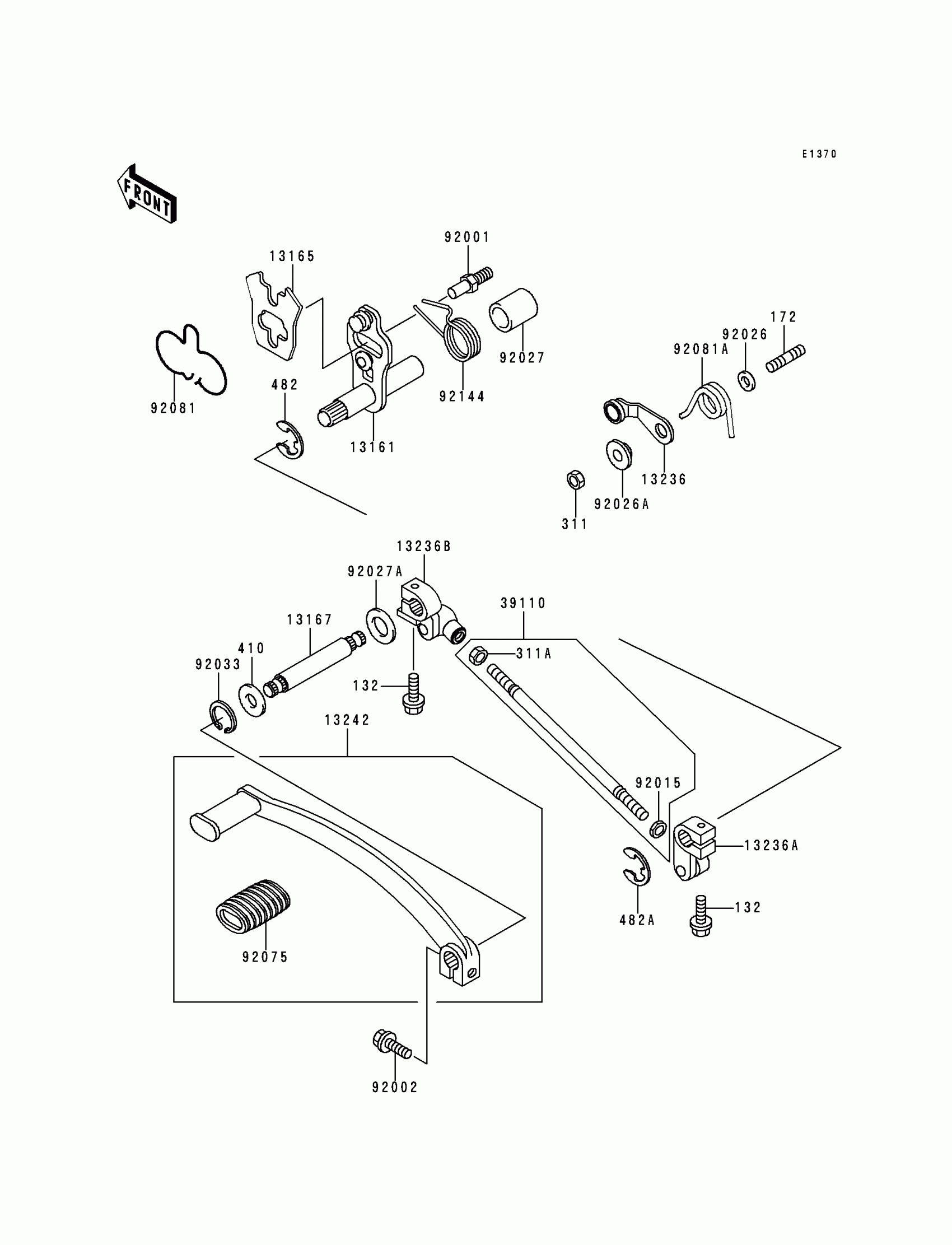

Kawasaki Vulcan 500 LTD Gear Change Mechanism Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

172

BOLT-STUD,6X14

172G0614

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

311A

NUT-HEX

311J0600

Unavailable

410

WASHER-PLAIN-SMALL,12MM,BLACK

410F1200

Unavailable

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53

482A

CIRCLIP-TYPE-E

482L7000

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1117

$68.34

13165

PAWL,CHANGE LEVER

13165-1034

$9.56

13167

SHAFT-CHANGE

13167-1059

$53.22

13236

LEVER-COMP,GEAR POSITION

13236-1103

$18.53

13236A

LEVER-COMP,CHANGE

13236-1123

Unavailable

13236B

LEVER-COMP,CHANGE

13236-1274

Unavailable

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1331

Unavailable

39110

ROD-ASSY-TIE

39110-1116

$15.02

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92002

BOLT,6X20

92002-1237

$3.29

92015

NUT,LEFT HANDED,6MM

92015-1178

$3.85

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92027

COLLAR,13X18.3X21.5

92027-1440

$4.18

92027A

COLLAR,13.2X22X5.5

92027-1855

$11.41

92033

RING-SNAP,11MM

92033-1189

$4.24

92075

DAMPER

92075-1585

$7.91

92081

SPRING,CHANGE LEVER

92081-1785

Unavailable

92081A

SPRING,POSITION LEVER

92081-1786

$9.47

92144

SPRING,CHANGE PEDAL RETURN

92144-1644

$9.47
